F8UA, F9UA, F10UA and F11UA Fuses

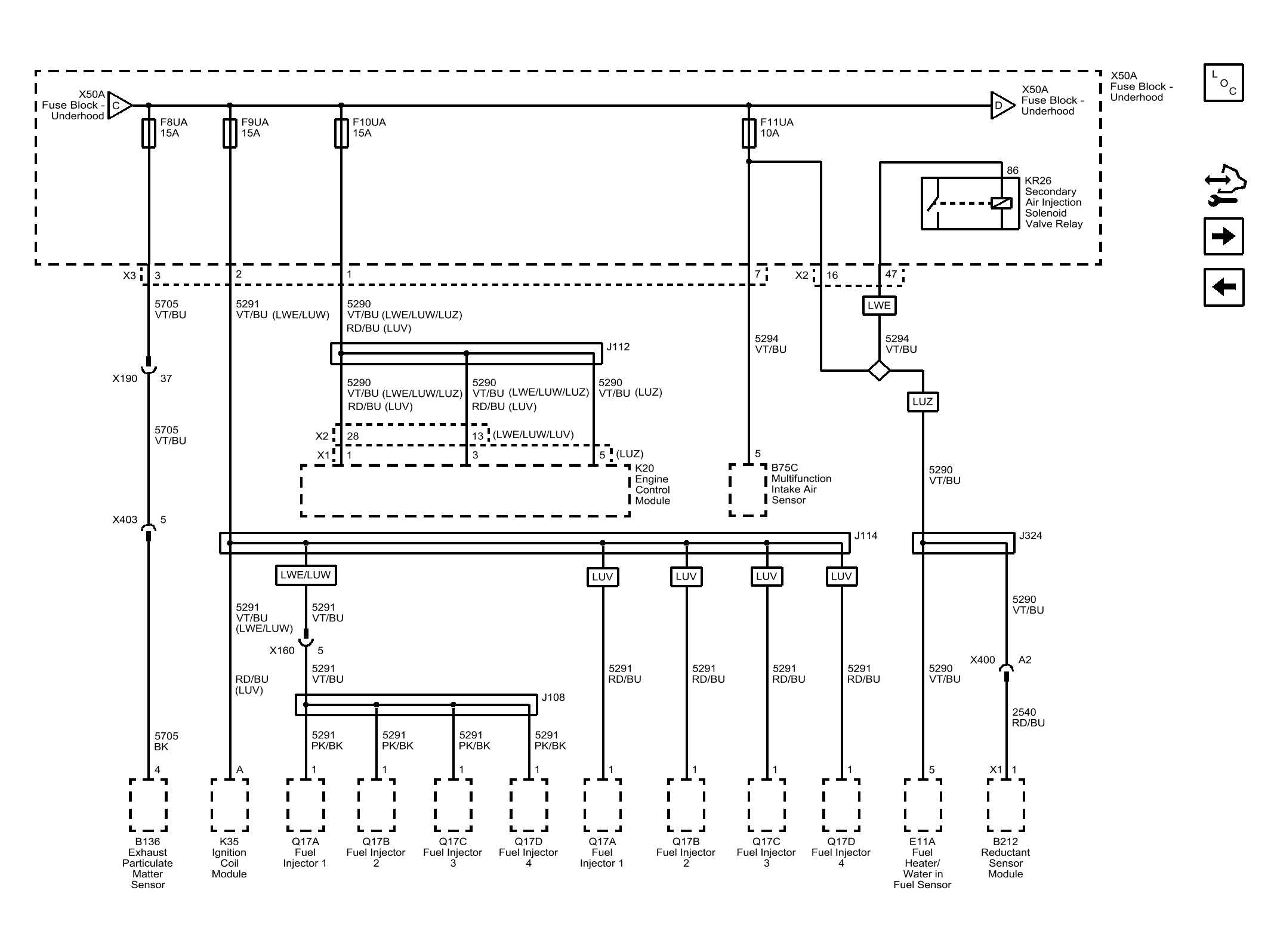

Fig 1: F8UA, F9UA, F10UA and F11UA Fuses
GM3814505Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
5291 Powertrain Main Relay Fused Supply (2)
5291_VT/BU 5291 VT/BU
CAV_A A
CAV_2 2
5291_VT/BU 5291 VT/BU
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
RD/BU RD/BU
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
5290 Powertrain Main Relay Fused Supply (1)
5290_VT/BU 5290 VT/BU
CAV_28 28
CONN_X2 X2
5290_VT/BU 5290 VT/BU
RD/BU RD/BU
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
RD/BU RD/BU
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
CAV_1 1
5290_VT/BU 5290 VT/BU
CAV_13 13
RD/BU RD/BU
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
5294 Powertrain Main Relay Fused Supply (5)
5294_VT/BU 5294 VT/BU
CAV_16 16
CONN_X2 X2
CAV_47 47
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
5294_VT/BU 5294 VT/BU
CAV_5 5
CAV_86 86
5291_VT/BU 5291 VT/BU
CAV_1 1
5291_VT/BU 5291 VT/BU
5291_PK/BK 5291 PK/BK
5291_PK/BK 5291 PK/BK
CAV_1 1
5291_PK/BK 5291 PK/BK
CAV_1 1
5291_PK/BK 5291 PK/BK
CAV_1 1
CAV_5 5
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
5291_RD/BU 5291 RD/BU
CAV_1 1
5291_RD/BU 5291 RD/BU
CAV_1 1
5291_RD/BU 5291 RD/BU
CAV_1 1
5291_RD/BU 5291 RD/BU
CAV_1 1
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
CAV_7 7
5705 Powertrain Main Relay Fused Control (6)
5705_BK 5705 BK
CAV_4 4
CAV_3 3
CONN_X3 X3
CAV_37 37
CAV_5 5
5705_VT/BU 5705 VT/BU
5705_VT/BU 5705 VT/BU
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
5290_VT/BU 5290 VT/BU
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
CAV_1 1
CONN_X1 X1
CAV_3 3
CAV_5 5
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
LUV FUEL RATING-OCTANE NO. 91 (U.S.A., PR and USVI (MAH), Canada (MBC))
5290_VT/BU 5290 VT/BU
CAV_5 5
LUZ ENGINE-GAS, 4 CYL, 1.8L, MFI, DOHC, VVT, 103 KW, GME (U.S.A., PR and USVI (MAH), Canada (MBC))
CAV_1 1
5290_VT/BU 5290 VT/BU
5290_VT/BU 5290 VT/BU
CAV_A2 A2
2540_RD/BU 2540 RD/BU
CONN_X1 X1
C_REF C
D_REF D
F8UA F8UA 15A
F9UA F9UA 15A
F11UA F11UA 10A
F10UA F10UA 15A
X160 X160
J114 J114
J108 J108
X190 X190
X403 X403
J112 J112
J324 J324
X400 X400
X50A X50A Fuse Block - Underhood
K20 K20 Engine Control Module
Q17A Q17A Fuel Injector 1
Q17B Q17B Fuel Injector 2
Q17C Q17C Fuel Injector 3
Q17D Q17D Fuel Injector 4
X50A X50A Fuse Block - Underhood
X50A X50A Fuse Block - Underhood
Q17A Q17A Fuel Injector 1
Q17B Q17B Fuel Injector 2
Q17C Q17C Fuel Injector 3
Q17D Q17D Fuel Injector 4
K35 K35 Ignition Coil Module
KR26 KR26 Secondary Air Injection Solenoid Valve Relay
B75C B75C Multifunction Intake Air Sensor
B136 B136 Exhaust Particulate Matter Sensor (LUZ)
E11A E11A Fuel Heater/Water in Fuel Sensor (LUZ)
B212 B212 Reductant Sensor Module (LUZ)
