Rear Compartment Lid Harness Routing

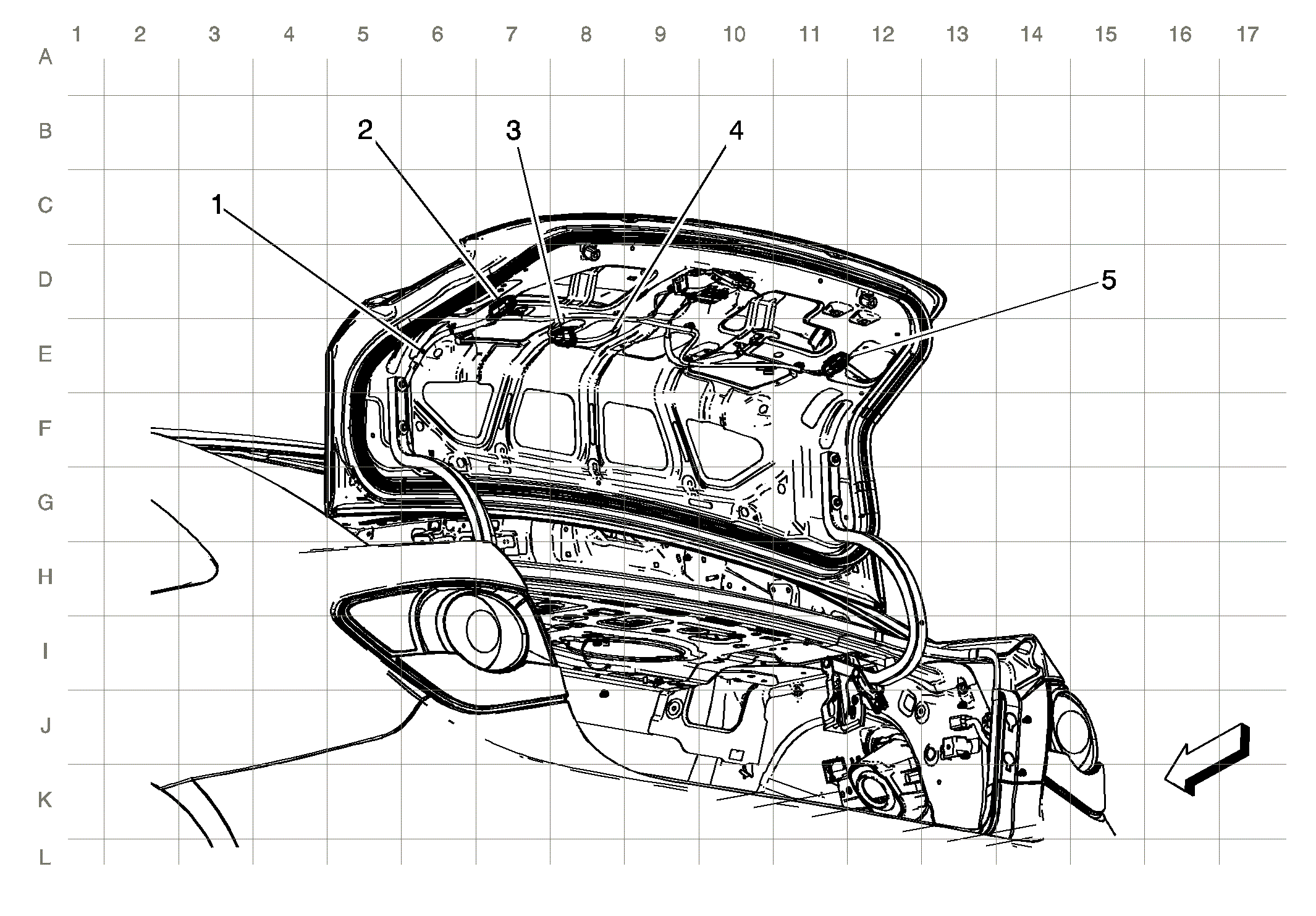

Fig 1: Rear Compartment Lid Harness Routing
GM2545608Courtesy of GENERAL MOTORS COMPANY
Items
1:J903
2:X910 X910 Left Inner Tail Lamp Harness to Rear Compartment Harness
3:X915 X915 License Lamp Harness to Rear Compartment Harness (- UVC) and X915 License Lamp Harness to Rear Compartment Harness (UVC)
4:J901
5:X920 X920 Right Inner Tail Lamp Harness to Rear Compartment Harness
