Instrument Panel Harness Routing

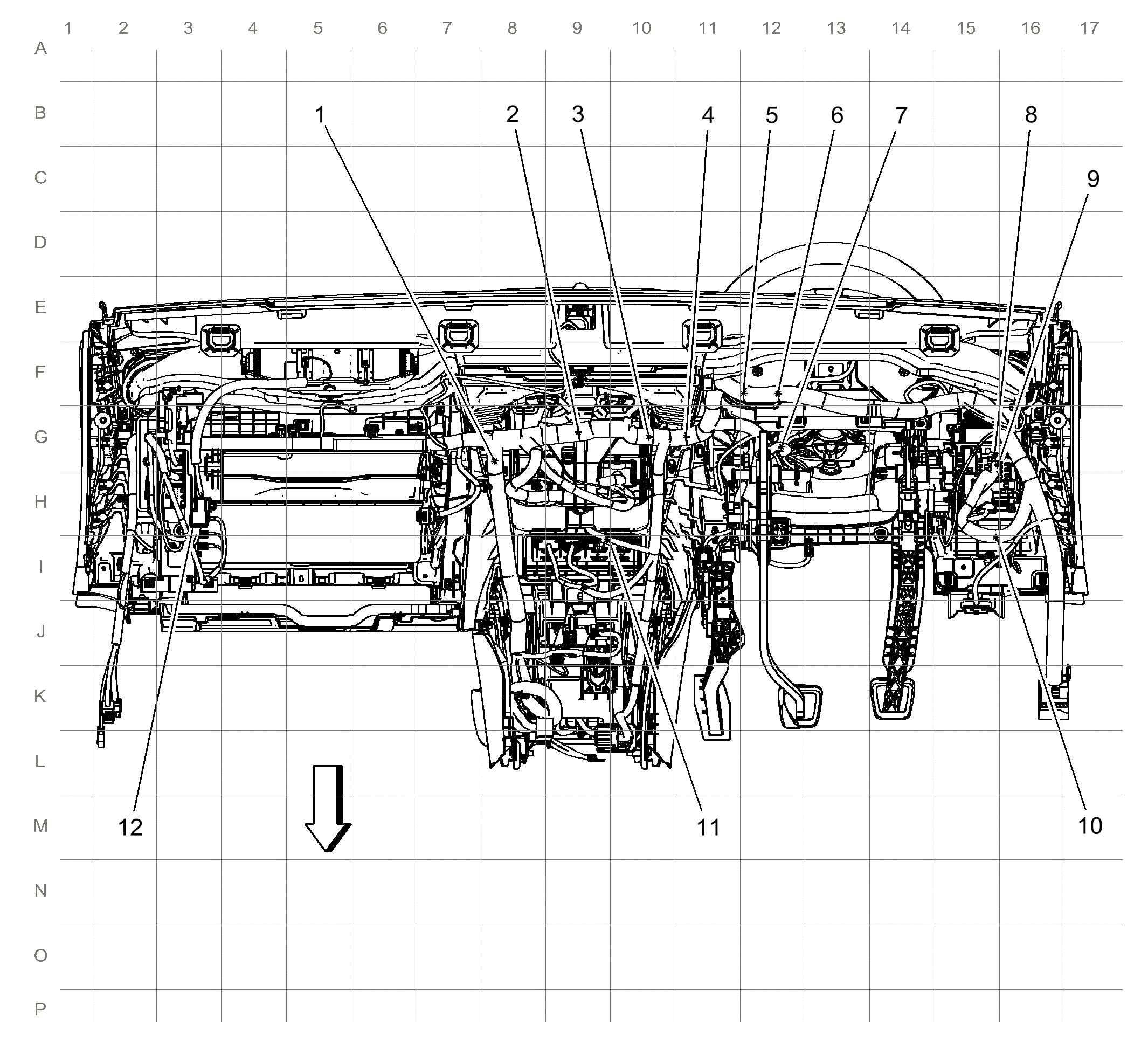

Fig 1: Instrument Panel Harness Routing
GM2732392Courtesy of GENERAL MOTORS COMPANY
Items
1:J202
2:J214
3:J204
4:J200
5:J213
6:J203
7:J209
8:J207
9:J206
10:J201
11:J211
12:X203 X203 Instrument Panel Harness to Instrument Panel Air Bag Harness
