Forward Lamp Harness Routing

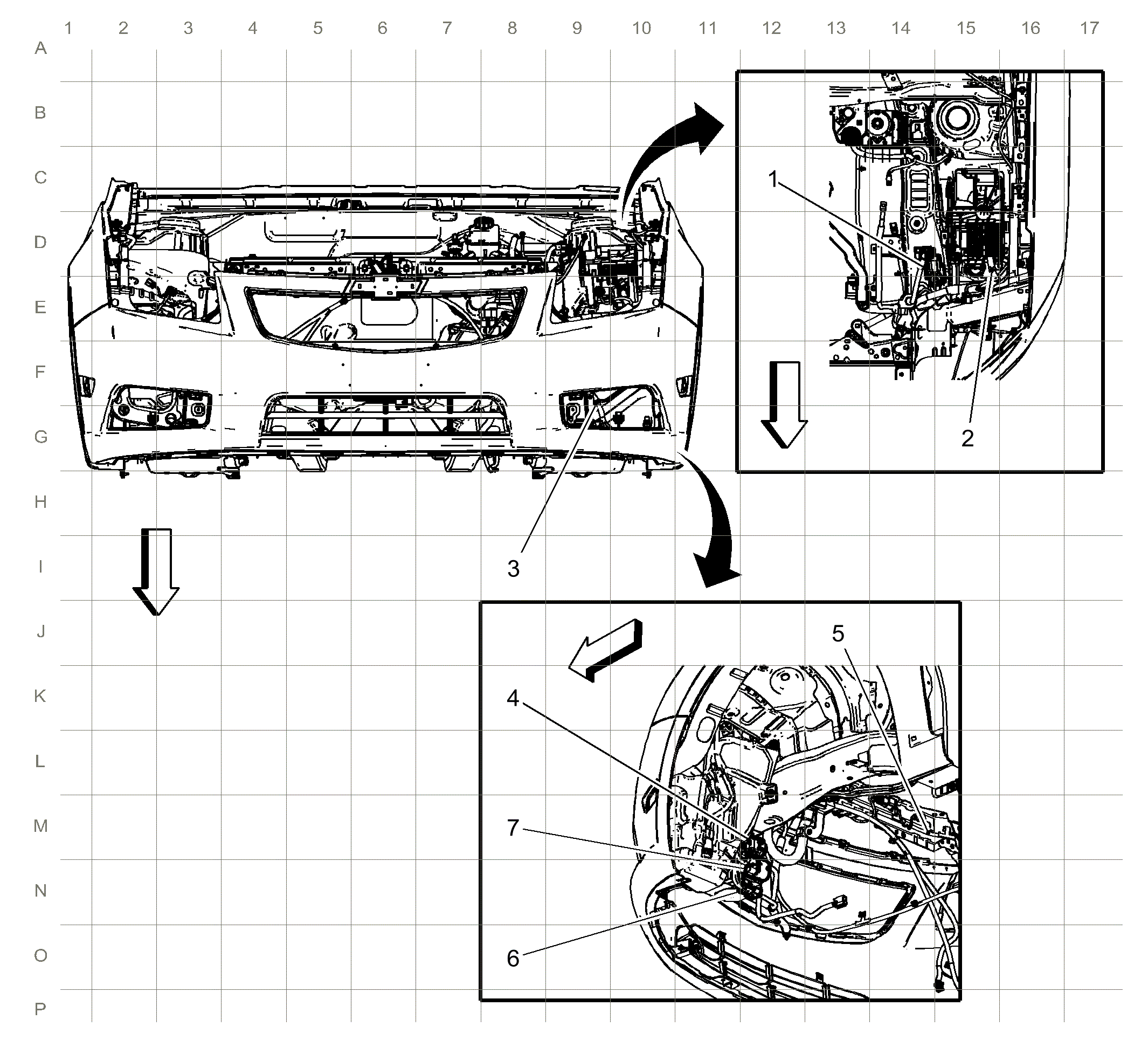

Fig 1: Forward Lamp Harness Routing
GM3146355Courtesy of GENERAL MOTORS COMPANY
Items
1:X100 X100 Body Harness to Forward Lamp Harness
2:J116 (T3U)
3:J101
4:X114 X114 Power Steering Harness to Forward Lamp Harness
5:J102
6:X102 X102 Engine Cooling Harness to Forward Lamp Harness (MF3/MR5/MZ0)
7:X104 X104 Engine Cooling Harness to Forward Lamp Harness
