Engine Harness Routing - Right Rear (LUW/LWE)

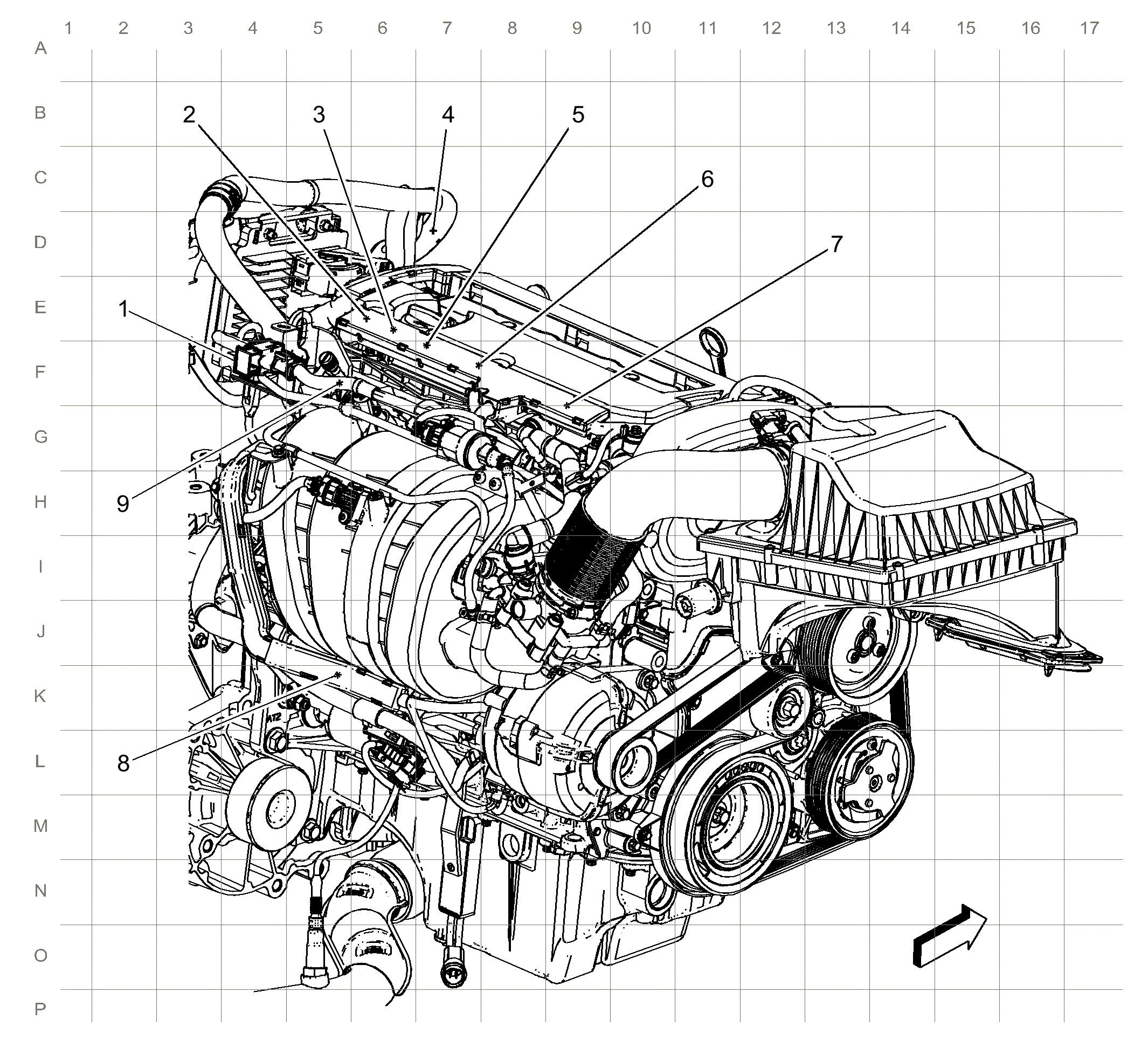

Fig 1: Engine Harness Routing - Right Rear (LUW/LWE)
GM4214793Courtesy of GENERAL MOTORS COMPANY
Items
1:X160 (LUW/LWE) X160 Engine Harness to Fuel Injector Harness (LUW/LWE)
2:J114
3:J144
4:J127
5:J111
6:J132
7:J119
8:J122 (LUW or LWE with MH9)
9:J108 (LUW/LWE)
