Engine Harness Routing - Right Front (LUZ)

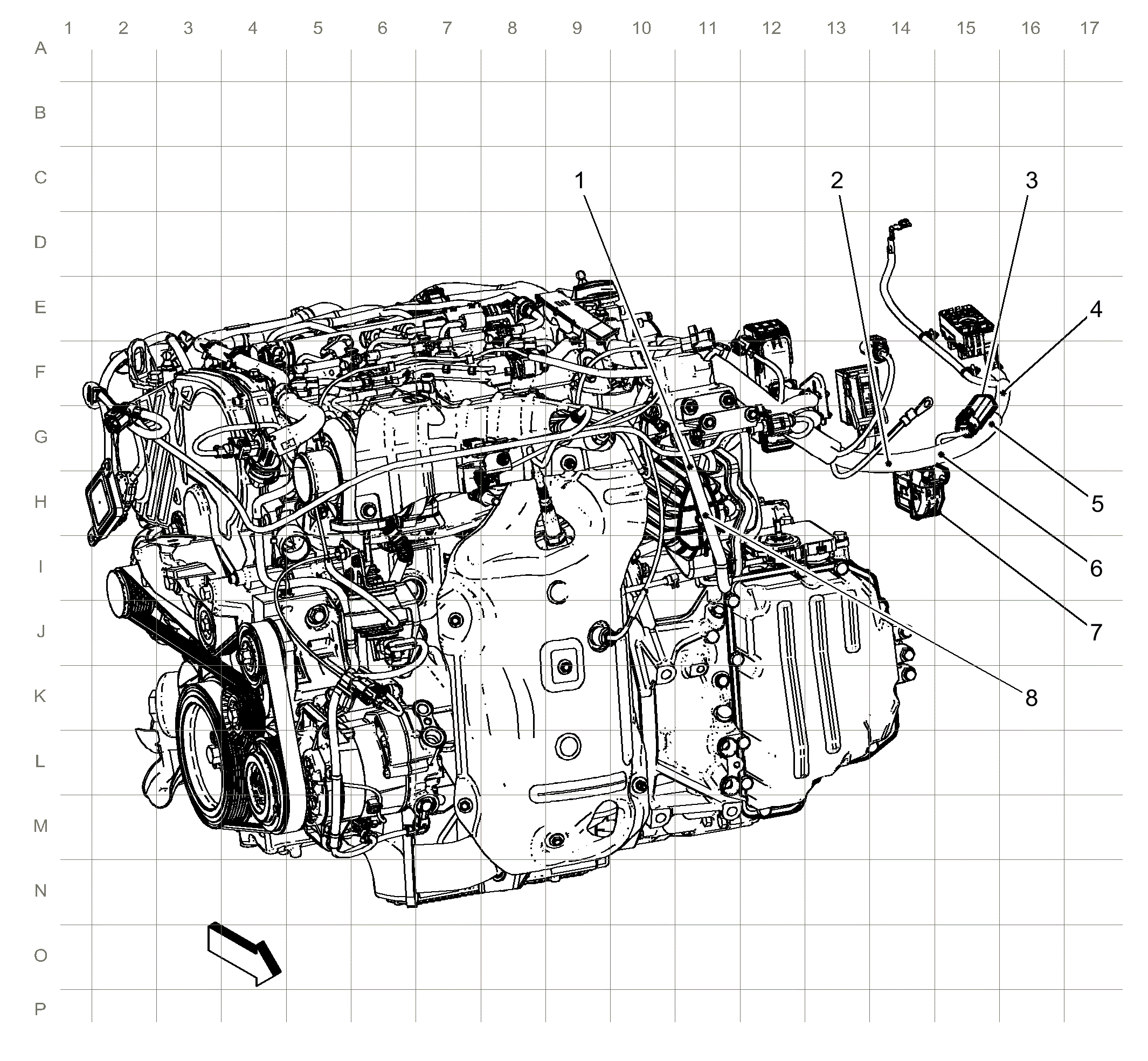

Fig 1: Engine Harness Routing - Right Front (LUZ)
GM3351504Courtesy of GENERAL MOTORS COMPANY
Items
1:J144
2:J112
3:X115 (LUZ) X115 Forward Lamp Harness to Engine Harness
4:J111
5:J124 (LUZ)
6:J125 (LUZ)
7:X190 X190 Body Harness to Engine Harness (LUV) and X190 Body Harness to Engine Harness (LUZ)
8:J119
