Engine Harness Routing - Left Rear (LUZ)
Engine Harness Routing - Left Rear (LUZ)

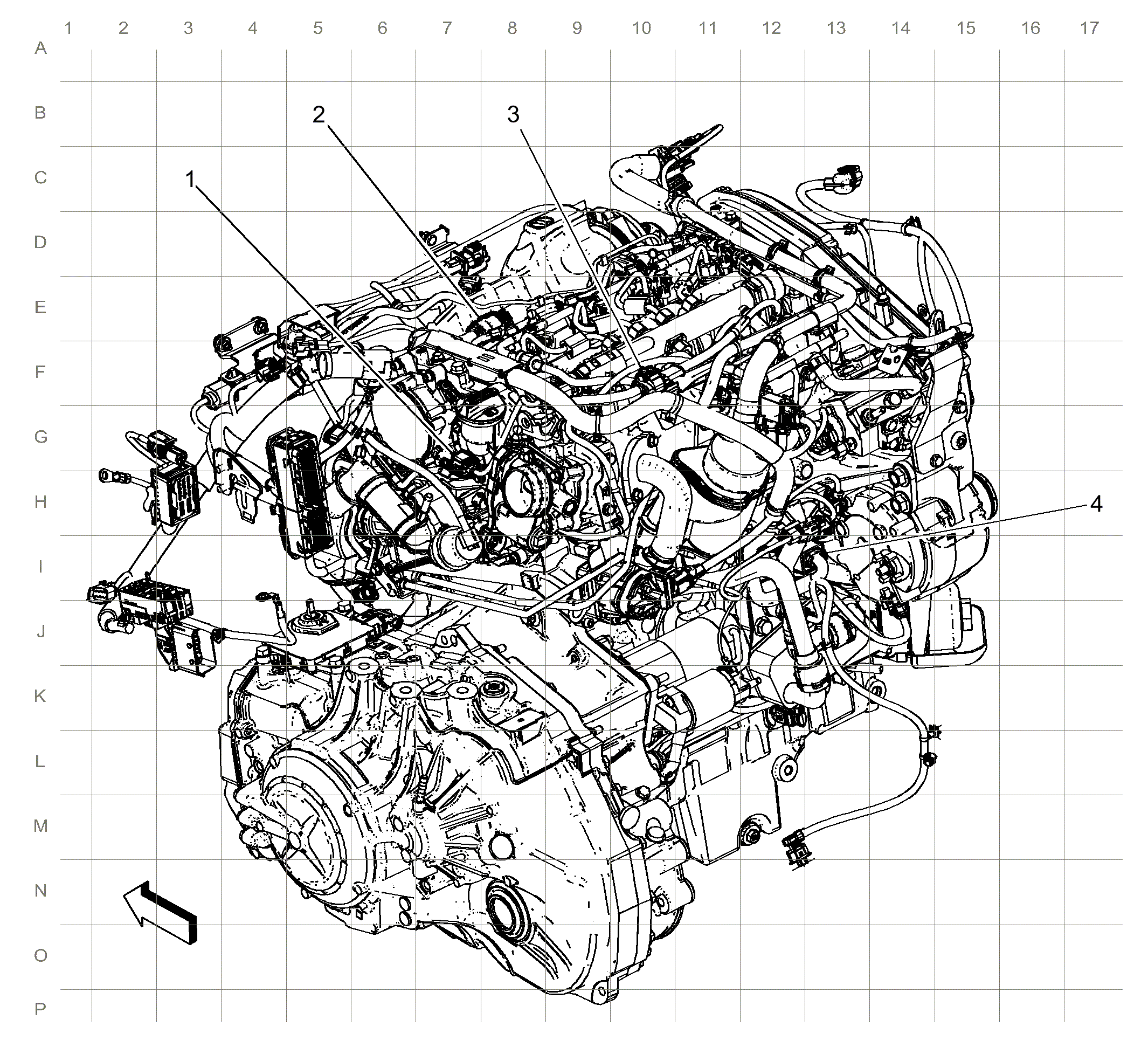

Fig 1: Engine Harness Routing - Left Rear (LUZ)
Courtesy of GENERAL MOTORS COMPANY
Items
1:X180 (LUZ)
X180 Engine Harness to Coolant Temperature Sensor Jumper Harness
2:X160
X160 Engine Harness to Fuel Injector Harness (LUZ)
3:X111 (LUZ)
X111 Engine Harness to Glow Plug Harness
4:X170
X170 Engine Harness to Rear Engine Jumper Harness
