Engine Harness Routing - Left Front (LUW/LWE)

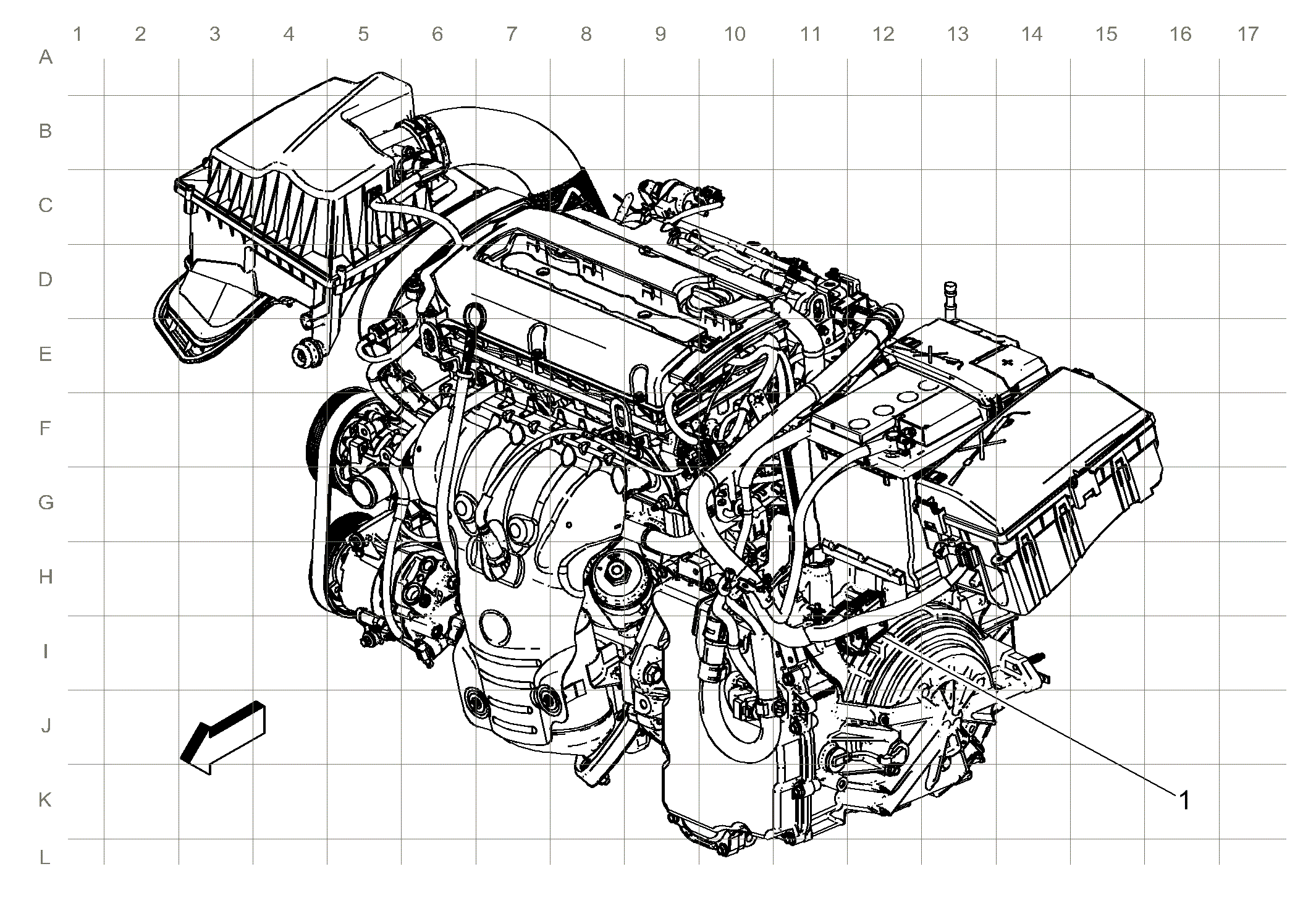

Fig 1: Engine Harness Routing - Left Front (LUW/LWE)
GM2542822Courtesy of GENERAL MOTORS COMPANY
Items
1:X190 X190 Body Harness to Engine Harness (LUV) and X190 Body Harness to Engine Harness (LUZ)
