Body Harness Routing - Left Side of the Luggage Compartment

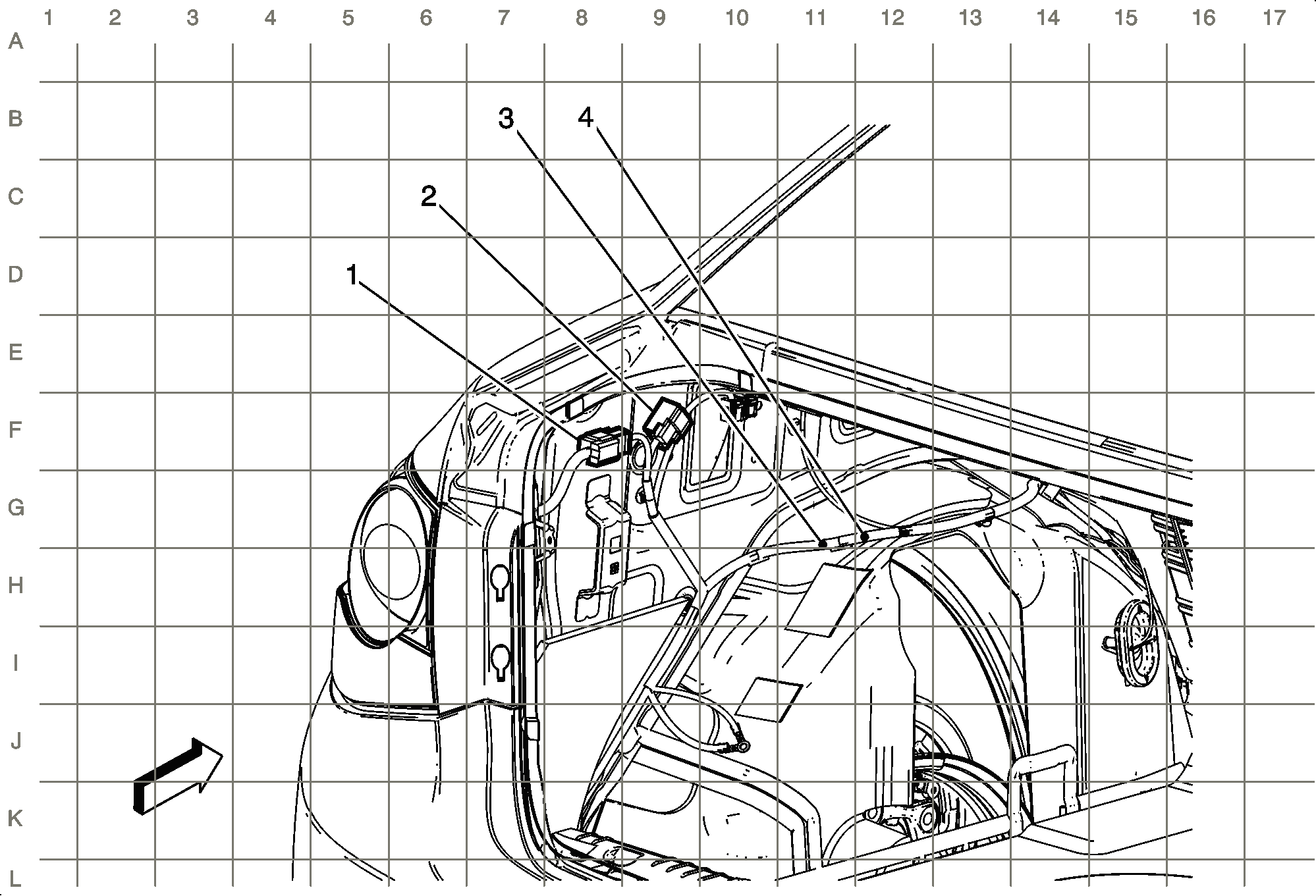

Fig 1: Body Harness Routing - Left Side Of Luggage Compartment
GM2545607Courtesy of GENERAL MOTORS COMPANY
Items
1:X410 X410 Left Tail Lamp Harness to Body Harness
2:X900 X900 Rear Compartment Lid Harness to Body Harness
3:J401
4:J402
