G112 and G114

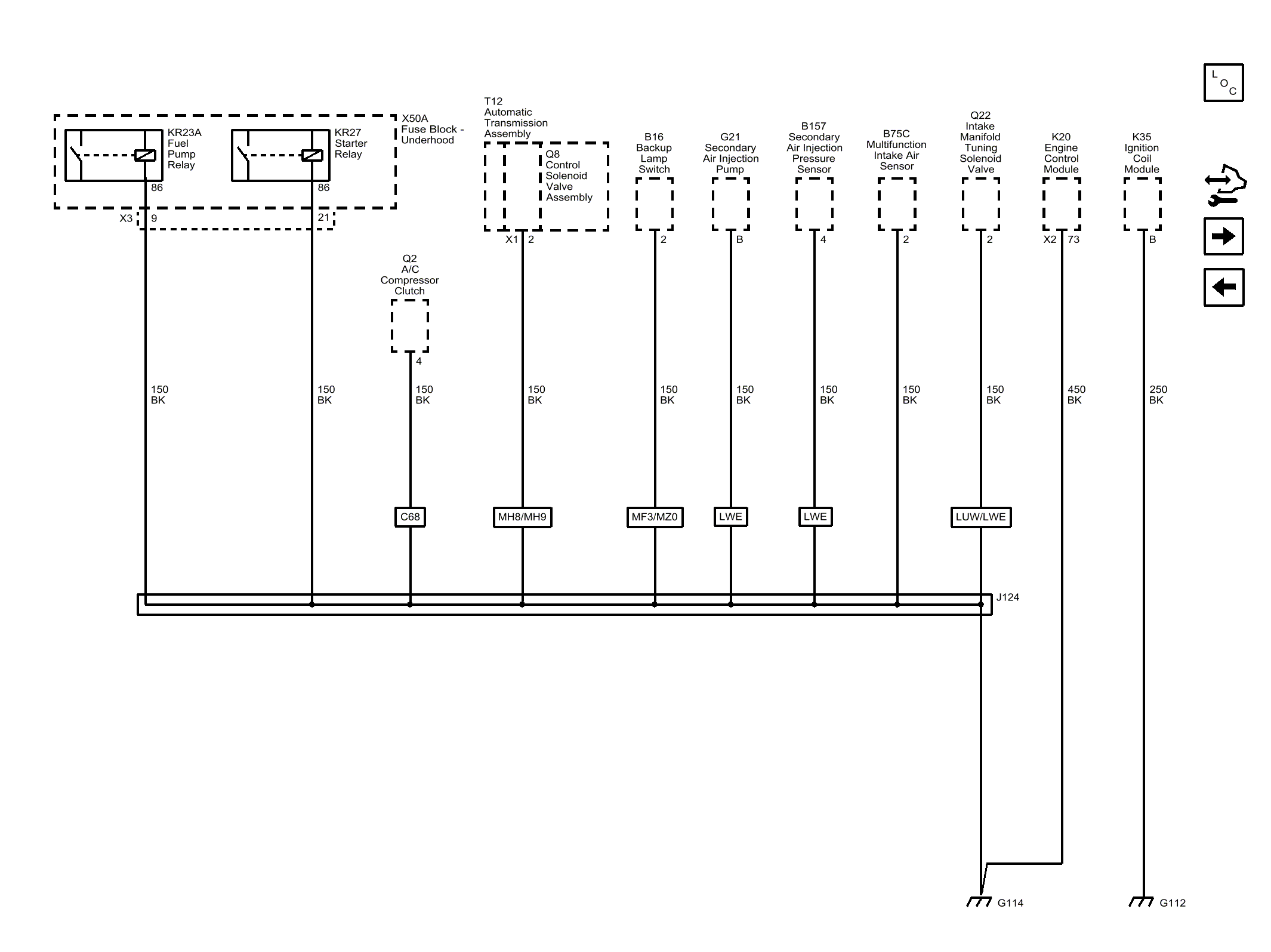

Fig 1: G112 and G114

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAV_86	86
CAV_86	86
150	Ground
150_BK	150 BK
CAV_9	9
CONN_X3	X3
150_BK	150 BK
CAV_21	21
150_BK	150 BK
CAV_4	4
150_BK	150 BK
CAV_2	2
CONN_X1	X1
150_BK	150 BK
CAV_2	2
150_BK	150 BK
CAV_B	B
150_BK	150 BK
CAV_4	4
150_BK	150 BK
CAV_2	2
150_BK	150 BK
CAV_2	2
450	Ground
450_BK	450 BK
CAV_73	73
CONN_X2	X2
250	Ground
250_BK	250 BK
CAV_B	B
C68	HVAC SYSTEM-AIR CONDITIONER FRT, ELECTRONIC CONTROLS (U.S.A., PR and USVI (MAH), Canada (MBC))
MH8	TRANSMISSION-AUTO 6 SPD, AISIN-WARNER, A6-AF40, ELECTRONIC, GEN2 (U.S.A., PR and USVI (MAH), Canada (MBC))
MH9	TRANSMISSION-AUTO 6 SPD, HMD, X23F (U.S.A., PR and USVI (MAH), Canada (MBC))
MF3	TRANSMISSION-MAN 6 SPD, OPEL, 76.5 MM, 3.82 1ST, 0.74 6TH, (M32 WR) (U.S.A., PR and USVI (MAH), Canada (MBC))
MZ0	ENGINE-DIESEL, 2.0L, CRI, L4, DOHC, VGT (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE	ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LWE	ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
LUW	ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A., PR and USVI (MAH), Canada (MBC))
LWE	ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC, E85 MAX (U.S.A., PR and USVI (MAH))
G112	G112
G114	G114
J124	J124
KR27	KR27 Starter Relay
X50A	X50A Fuse Block - Underhood
B16	B16 Backup Lamp Switch (MF3 or MZ0)
Q22	Q22 Intake Manifold Tuning Solenoid Valve (LUW/LWE)
K20	K20 Engine Control Module
Q8	Q8 Control Solenoid Valve Assembly (MH8/MH9/MDK)
T12	T12 Automatic Transmission Assembly (MH8/MH9)
G21	G21 Secondary Air Injection Pump
B75C	B75C Multifunction Intake Air Sensor
KR23A	KR23A Fuel Pump Relay
Q2	Q2 A/C Compressor Clutch
K35	K35 Ignition Coil Module
B157	B157 Secondary Air Injection Pressure Sensor (LUW/LWE)
