Removal Procedure

  1. Remove the electrical center cover.
  2. Locate the relay. Refer to Electrical Center Identification Views to locate the electrical center where the relay exists.
    NOTE:
    • Always note the orientation of the relay.
    • If equipped with a notch style relay; observe the location of the notch on the old relay to verify the new relay is installed with the notch in the same location.
    • Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.

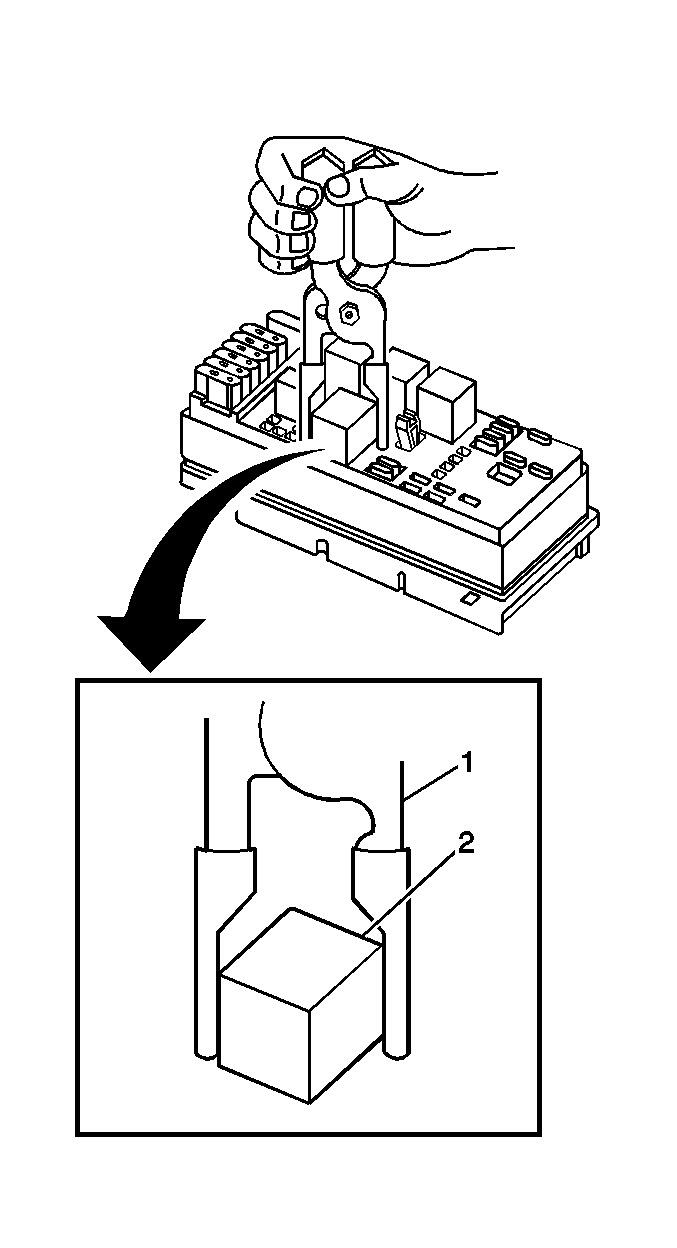

  3. Using the EL-43244 (1) position the tool on opposing corners of the relay (2).
    Fig 1: Removing/Installing Relay
    GM786629Courtesy of GENERAL MOTORS COMPANY
  4. Remove the relay (2) from the electrical center.
    CAUTION: Use EL-43244  to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
