Installation Procedure

Install front compartment fuse block wiring harness supply (1) and tighten to 12 N.m (106 lb in).

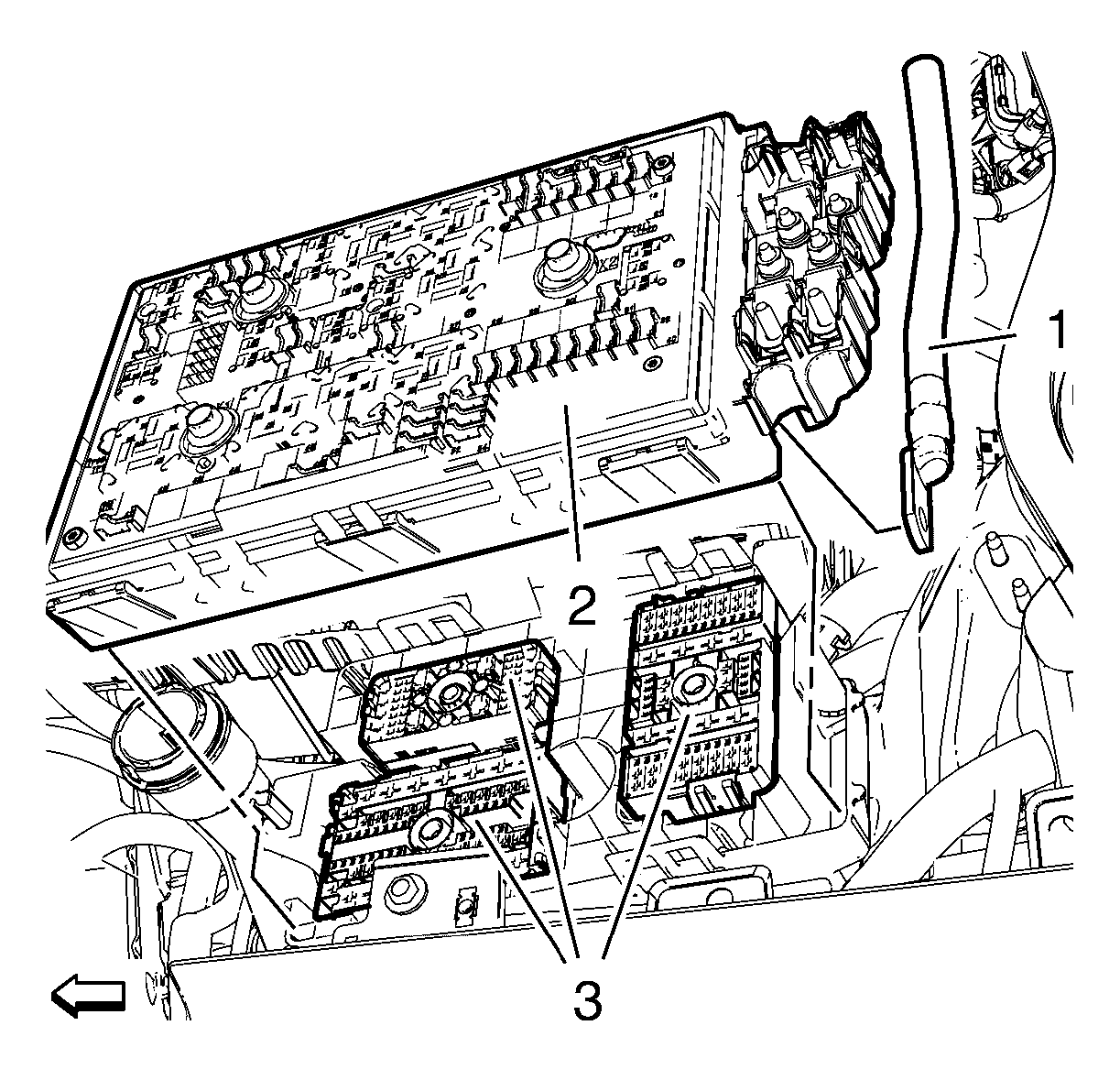

Fig 1: Wiring Harness Supply, Front Compartment Fuse Block And Electrical Connectors
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Push down the 3 electrical connectors (3) before installation of the front compartment fuse block (2).
Install 3 front compartment fuse block bolts (1) and tighten to 6 N.m (53 lb in).

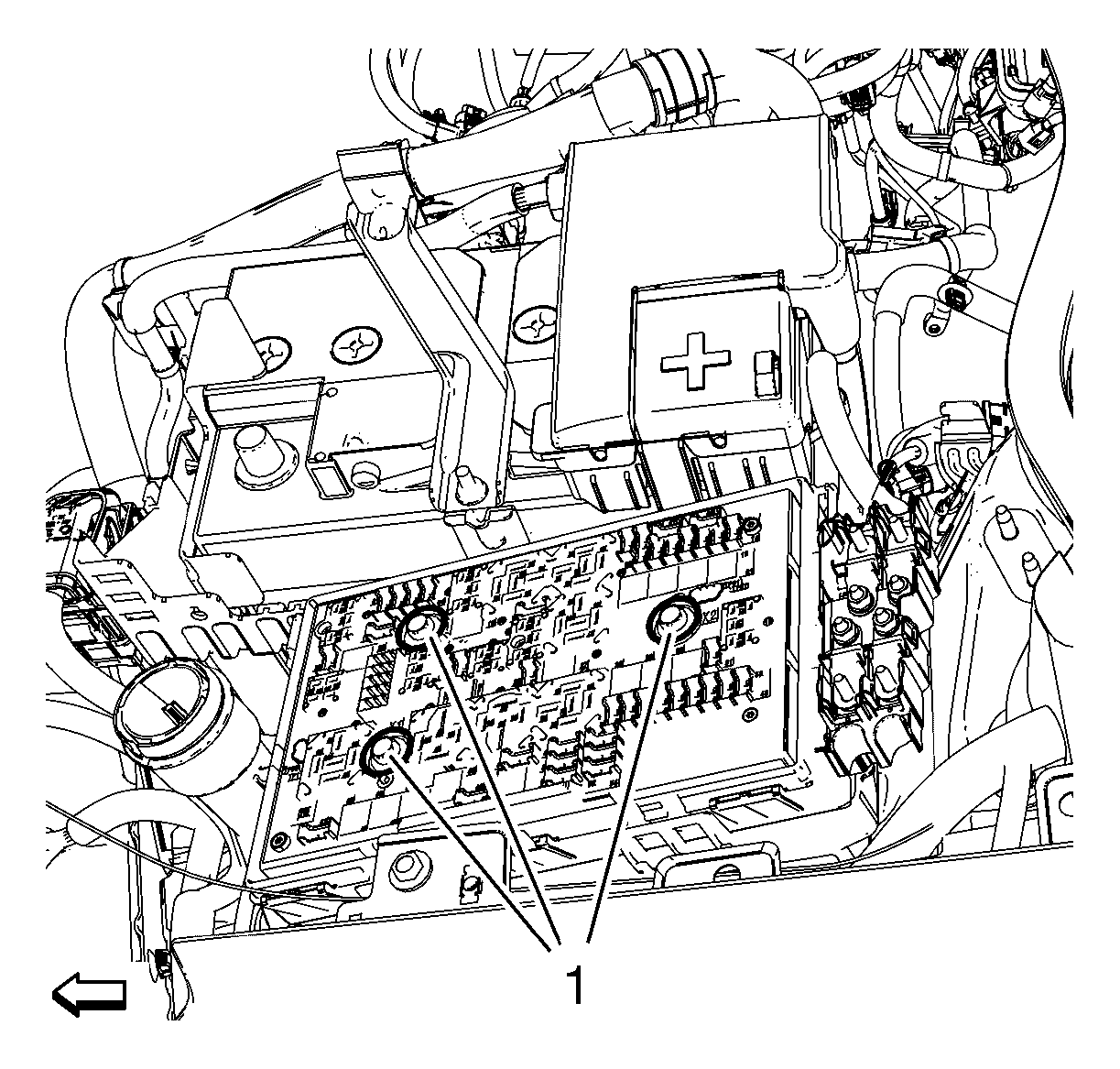

Fig 2: Identifying Front Compartment Fuse Block Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the front compartment fuse block cover. Refer to Front Compartment Fuse Block Cover Replacement .
Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
