Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Description And Operation >> Description and Operation >> Power Mode Description and Operation >> Power Mode Block Diagram

Power Mode Block Diagram

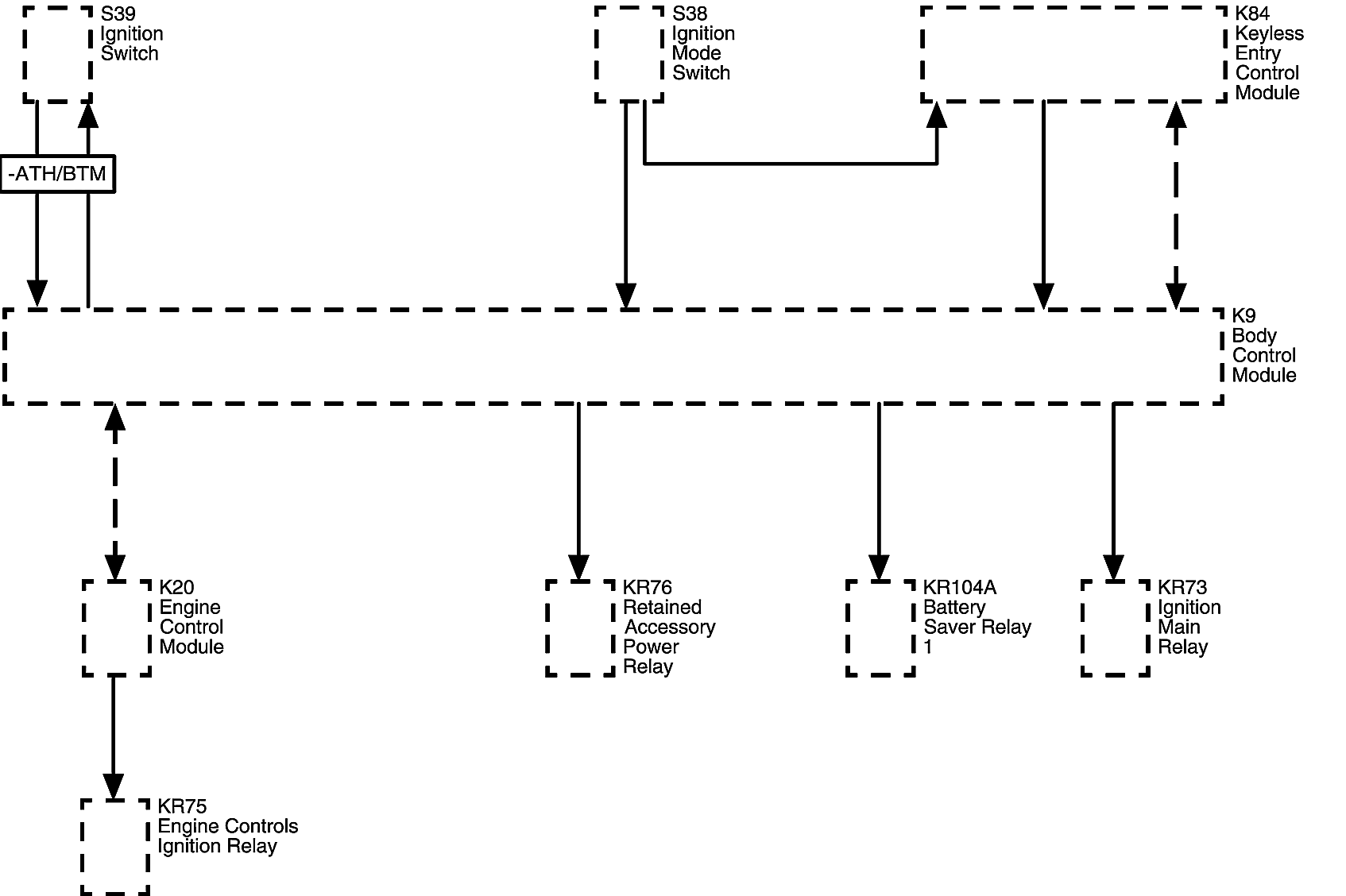

Fig 1: Power Moding D&O Block Diagram

GM3520485

Courtesy of GENERAL MOTORS COMPANY
