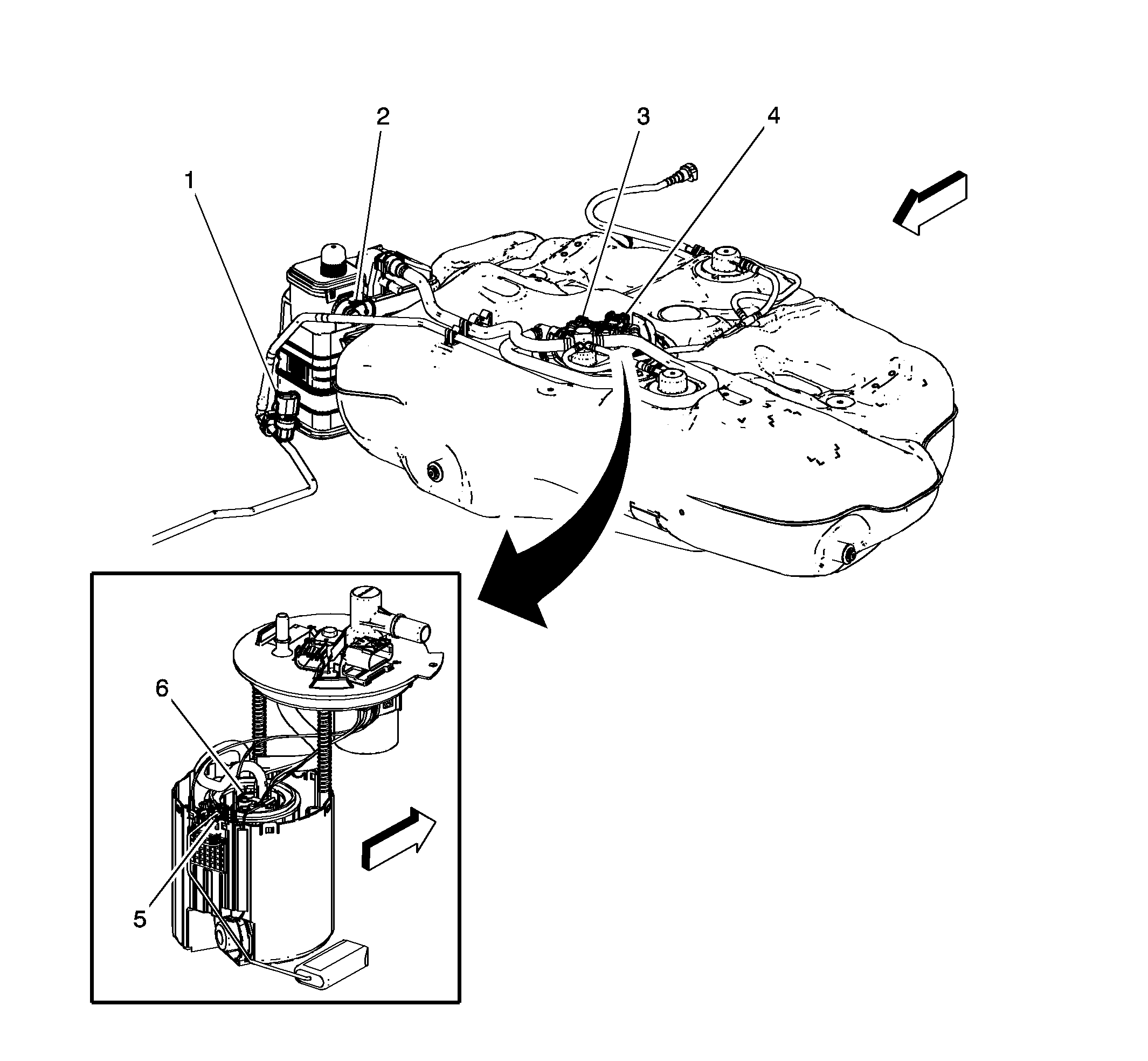

Fuel Tank Components
Fuel Tank Components
| Items |
|---|
| 1: B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor |
| 2: Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve |
| 3: A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly |
| 4: B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor |
| 5: B46 Fuel Level Sensor (LUV) |
| 6: G12 Fuel Pump |
