Rear Fascia Components (UFT)

Rear Fascia Components (UFT)

Items
1: B218R Side Object Sensor Module - Right (UFT) B218R Side Object Sensor Module - Right (UFT+SAE)
2: B218L Side Object Sensor Module - Left (UFT) B218L Side Object Sensor Module - Left (UFT+SAE)

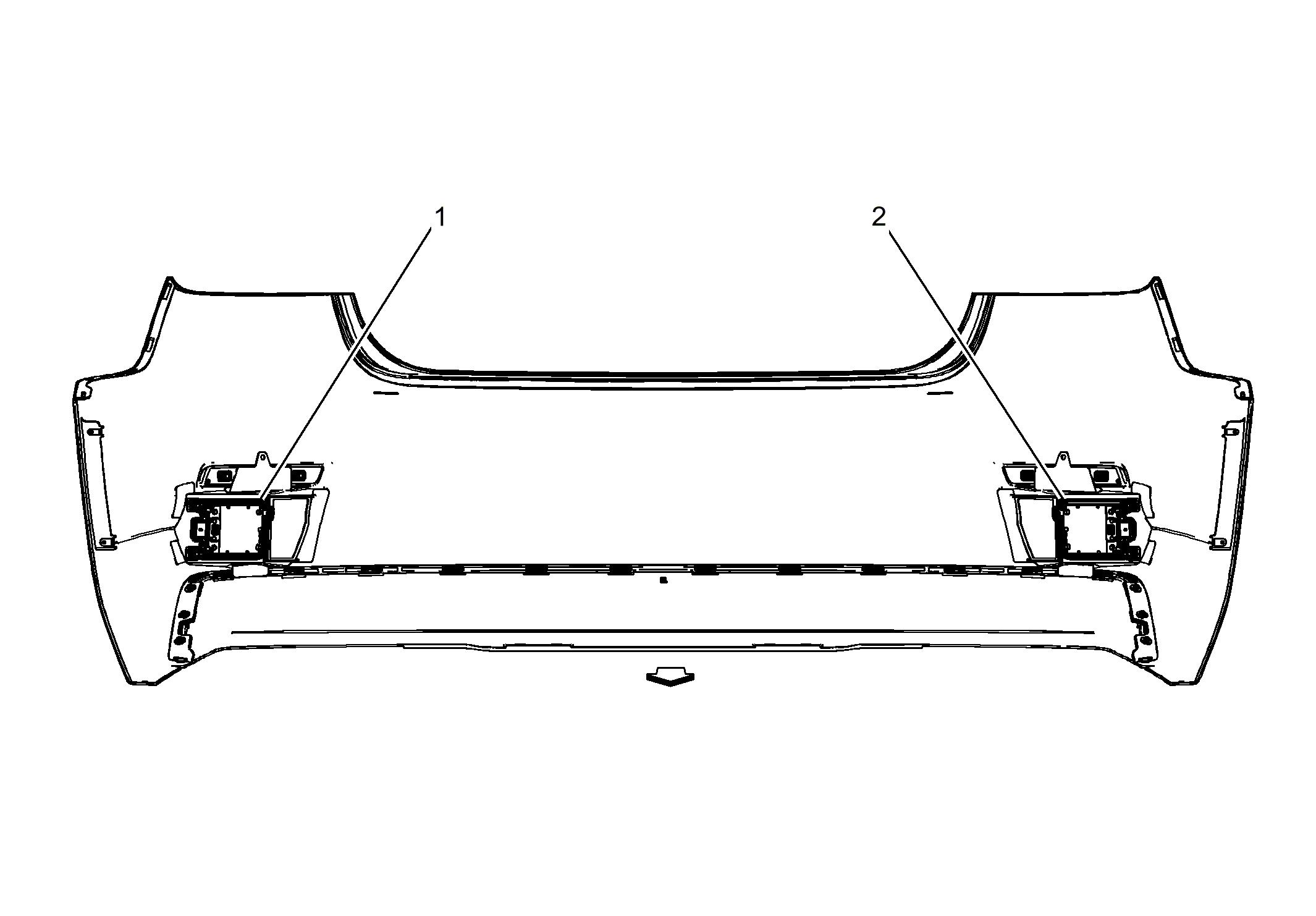

Fig 1: Rear Fascia Components (UFT)
GM3747365Courtesy of GENERAL MOTORS COMPANY
