X51A Fuse Block - Instrument Panel Usage

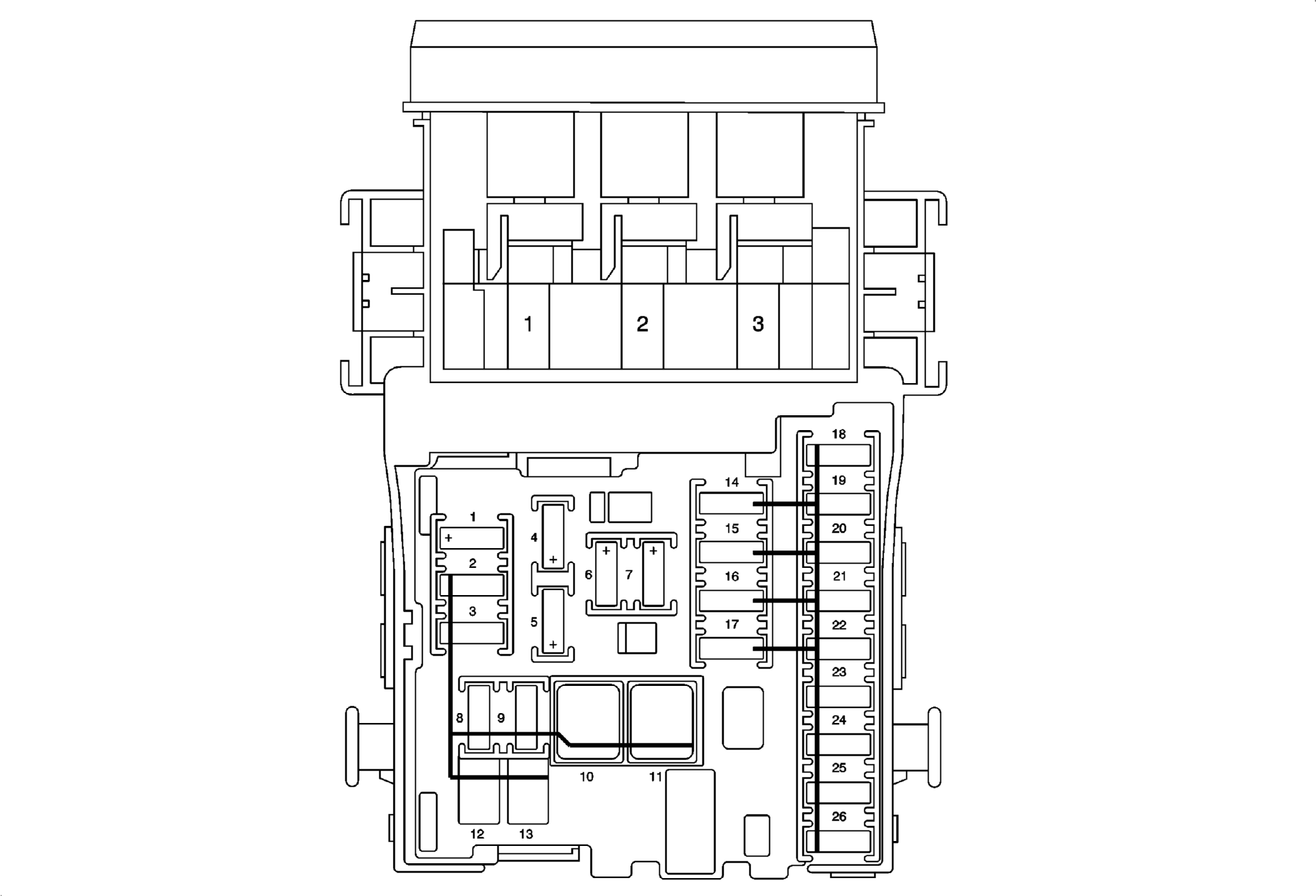

Fig 1: X51A Fuse Block -- Instrument Panel Top View Fuses

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND

No.	Device Label Name	Fuse And Relay Description	Rating	Circuits
1	-	F1DA Fuse	10A	K73 Telematics Communication Interface Control Module (UE1)
2	-	F2DA Fuse	-	Not Used
3	-	F3DA Fuse	25A	K9 Body Control Module
4	-	F4DA Fuse	20A	A11 Radio
5	-	F5DA Fuse	7.5A	A22 Radio Controls, K41 Parking Assist Control Module (UD7), P17 Info Display Module, T11 Multimedia Player Interface Module (KTA)
6	-	F6DA Fuse	20A	E32 Cigarette Lighter Receptacle
7	-	F7DA Fuse	20A	X80L Accessory Power Receptacle - Rear Console
8	-	F8DA Fuse	30A	K9 Body Control Module
9	-	F9DA Fuse	30A	K9 Body Control Module
10	-	F10DA Fuse	30A	K9 Body Control Module
11	-	F11DA Fuse	40A	K8 Blower Motor Control Module
12	-	F12DA Fuse	-	Not Used
13	-	F13DA Fuse	25A	S64D Seat Adjuster Switch - Driver (ADS)
14	-	F14DA Fuse	7.5A	X84 Data Link Connector
15	-	F15DA Fuse	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
16	-	F16DA Fuse	10A	KR95B Rear Compartment Lid Release Relay
17	-	F17DA Fuse	15A	K33 HVAC Control Module, S34 HVAC Controls Switch Assembly
18	-	F18DA Fuse	-	Not Used
19	-	F19DA Fuse	-	Not Used
20	-	F20DA Fuse	-	Not Used
21	-	F21DA Fuse	15A	P16 Instrument Cluster
22	-	F22DA Fuse	2A	S39 Ignition Switch
23	-	F23DA Fuse	20A	K9 Body Control Module
24	-	F24DA Fuse	20A	K9 Body Control Module
25	-	F25DA Fuse	20A	K60 Steering Column Lock Control Module (ULS)
26	-	F26DA Fuse	-	Not Used
Relays
1	-	KR95B Rear Compartment Lid Release Relay	-	M40 Rear Compartment Lid Latch
2	-	KR104A Logistic Mode Relay 1	-	F1DA Fuse, F4DA Fuse, F5DA Fuse
3	-	KR70 Auxiliary Power Relay	-	F6DA Fuse, F7DA Fuse
