X51A Fuse Block - Instrument Panel Relays Usage

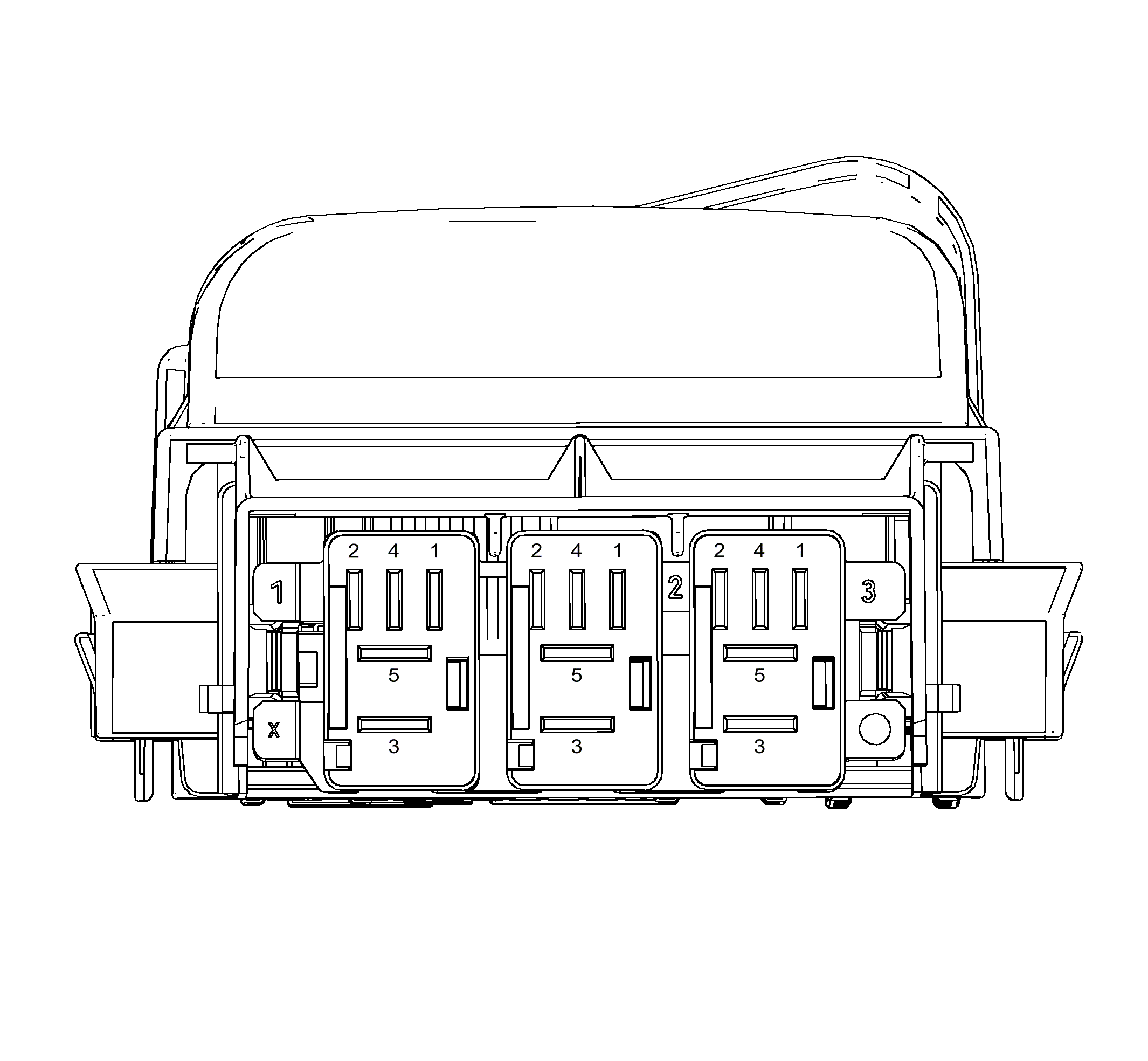

Courtesy of GENERAL MOTORS COMPANY X51A FUSE BLOCK - INSTRUMENT PANEL RELAY IDENTIFICATION
| No. |
Device Label Name |
Fuse And Relay Description |
Rating |
Circuits |
| 1 |
- |
KR95B Rear Compartment Lid Unlatch Relay |
- |
M40 Rear Compartment Lid Unlatch |
| 2 |
- |
- |
- |
Not Used |
| 3 |
- |
KR76 Retained Accessory Power Relay |
- |
F6DA Fuse, F7DA Fuse |
