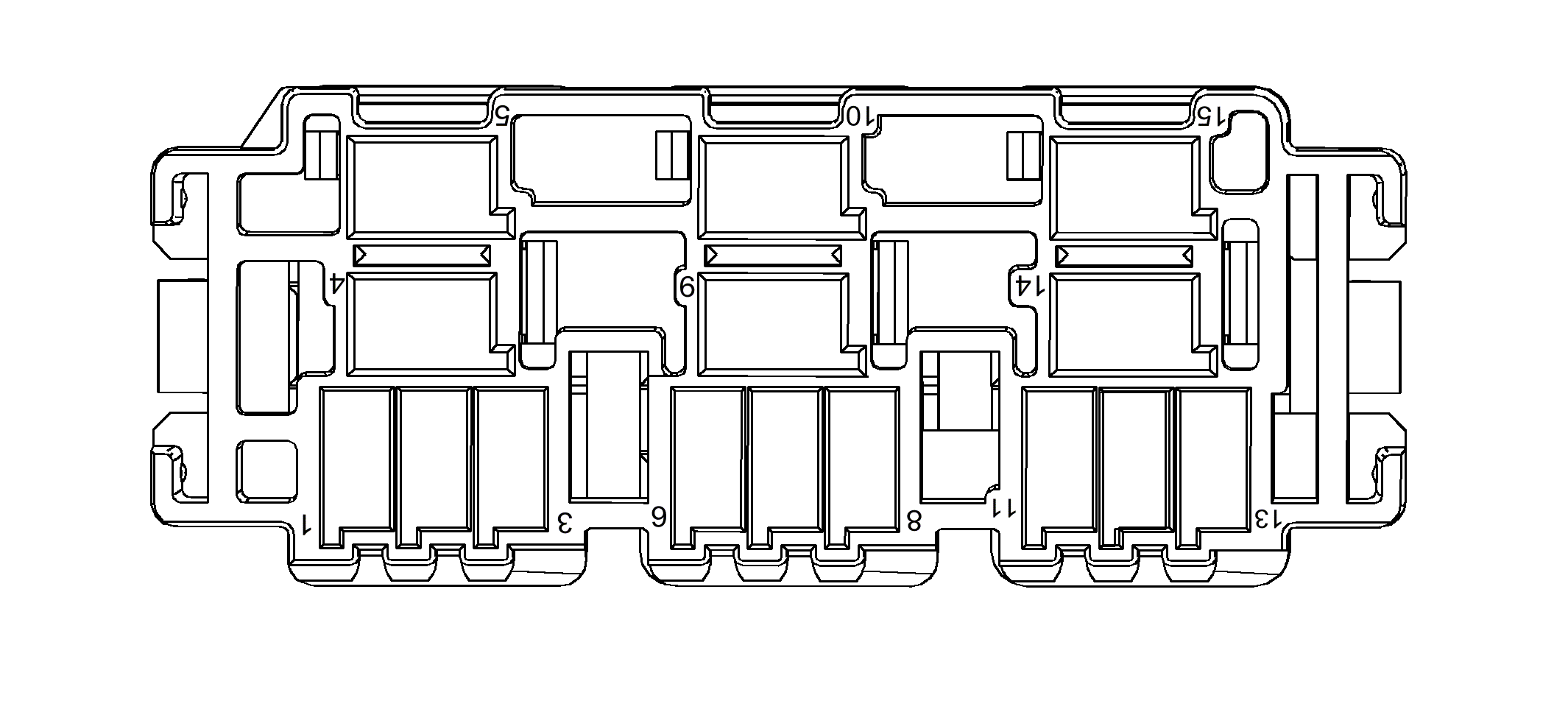

X51A Fuse Block - Instrument Panel Bottom View Relay

Connector Part Information Harness Type: Instrument Panel OEM Connector: 13595183 Service Connector: Service by Component Assembly - See Part Catalog Description: 15-Way Relay Block (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13327158	J-35616-42 (RD)	J-38125-11A	15344769	23	A	B
II	13327158	J-35616-42 (RD)	J-38125-11A	15344769	23	F	B

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BK	1650	Ground	I	-
2	0.5	BK	1650	Ground	I	-
3	0.5	GY/YE	6188	Lift Glass/Trunk Motor Release Control	I	-
4	0.5	RD/D-BU	5240	Battery Positive Voltage	I	-
5	0.5	D-BU/YE	6795	Lift Glass/Trunk Motor Release Control 2	I	-
6	-	-	-	Not Occupied	-	-
7	-	-	-	Not Occupied	-	-
8	-	-	-	Not Occupied	-	-
9	-	-	-	Not Occupied	-	-
10	-	-	-	Not Occupied	-	-
11	0.5	VT/BK	3	Run/Crank Ignition 1 Voltage	I	-
12	-	-	-	Not Occupied	-	-
13	0.5	BK	1650	Ground	I	-
14	1 1	D-BU/WH D-BU/WH	6128 6128	Rear Closure Unlatch Motor Unlatch Control Rear Closure Unlatch Motor Unlatch Control	II	-
15	2.5	RD/D-GN	3140	Battery Positive Voltage	II	-
