Power, Ground, Gauges and Serial Data

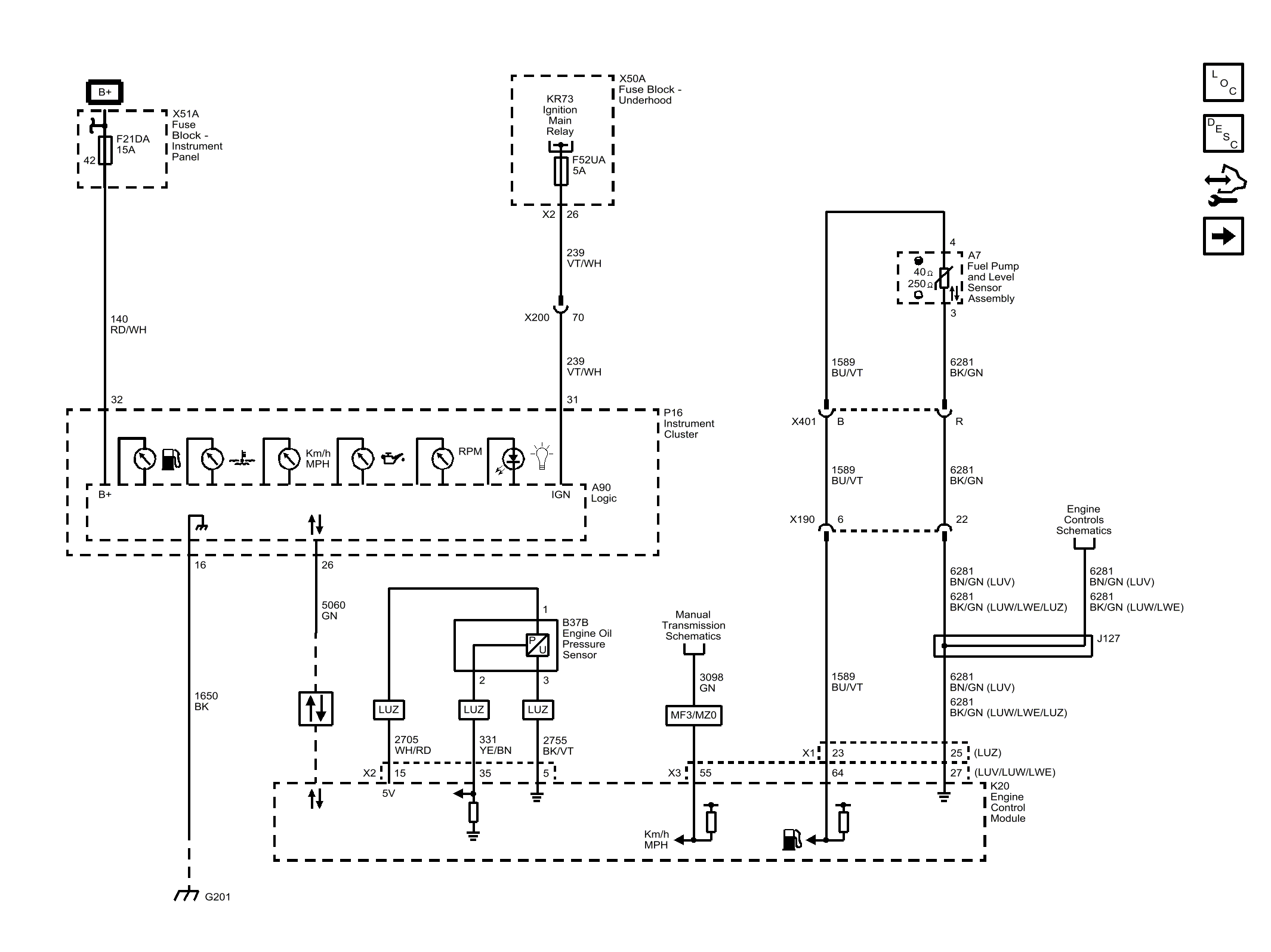

Fig 1: Power, Ground, Gauges and Serial Data

GM3814073

Courtesy of GENERAL MOTORS COMPANY
