Instrument Cluster Wiring Schematics: Indicators

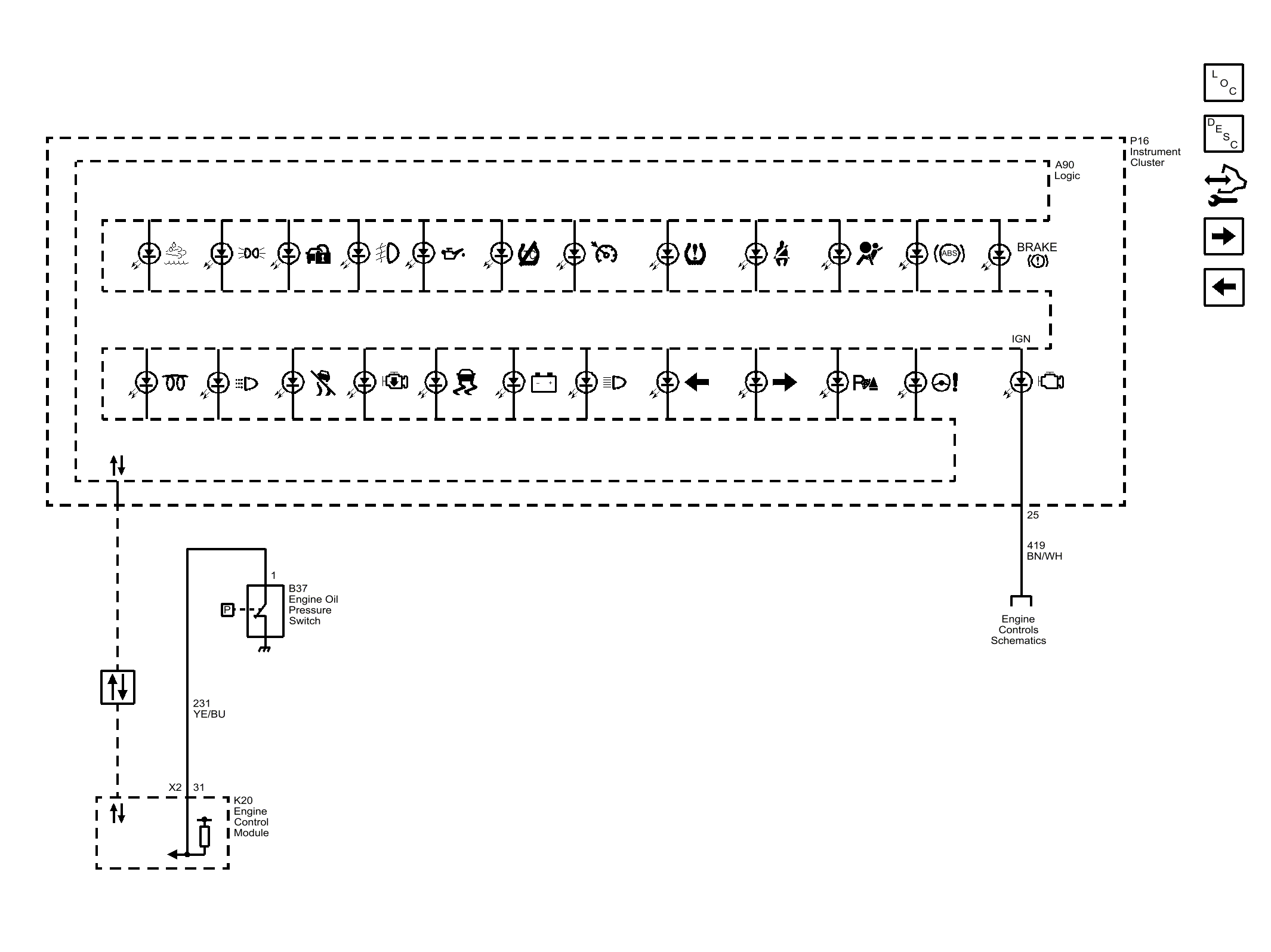

Fig 1: Indicators

GM3814074

Courtesy of GENERAL MOTORS COMPANY
