Air Temperature and Driver Information Center

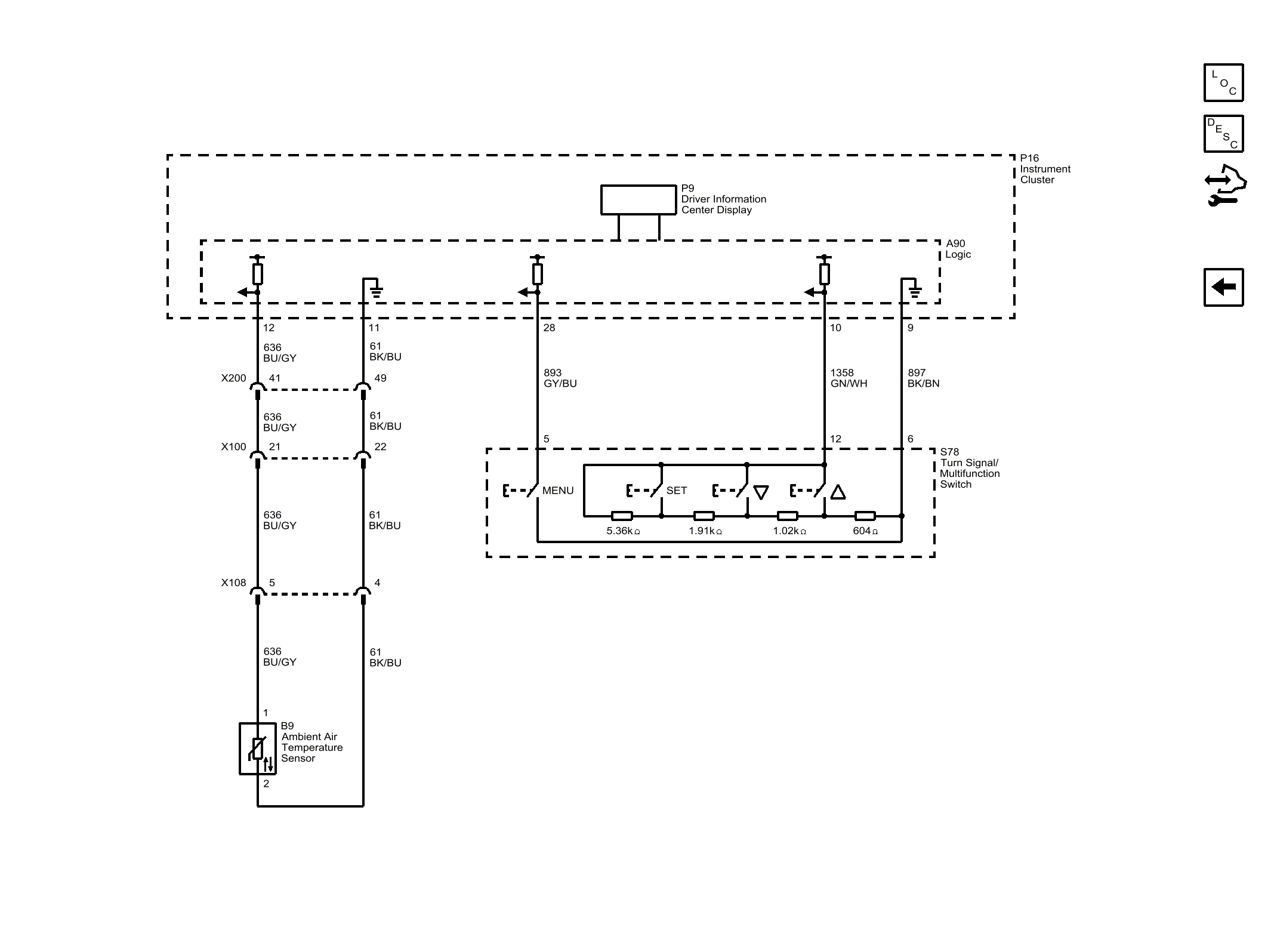

Fig 1: Air Temperature and Driver Information Center

GM3814075

Courtesy of GENERAL MOTORS COMPANY
