Front Wheel Drive Intermediate Shaft Bracket Replacement

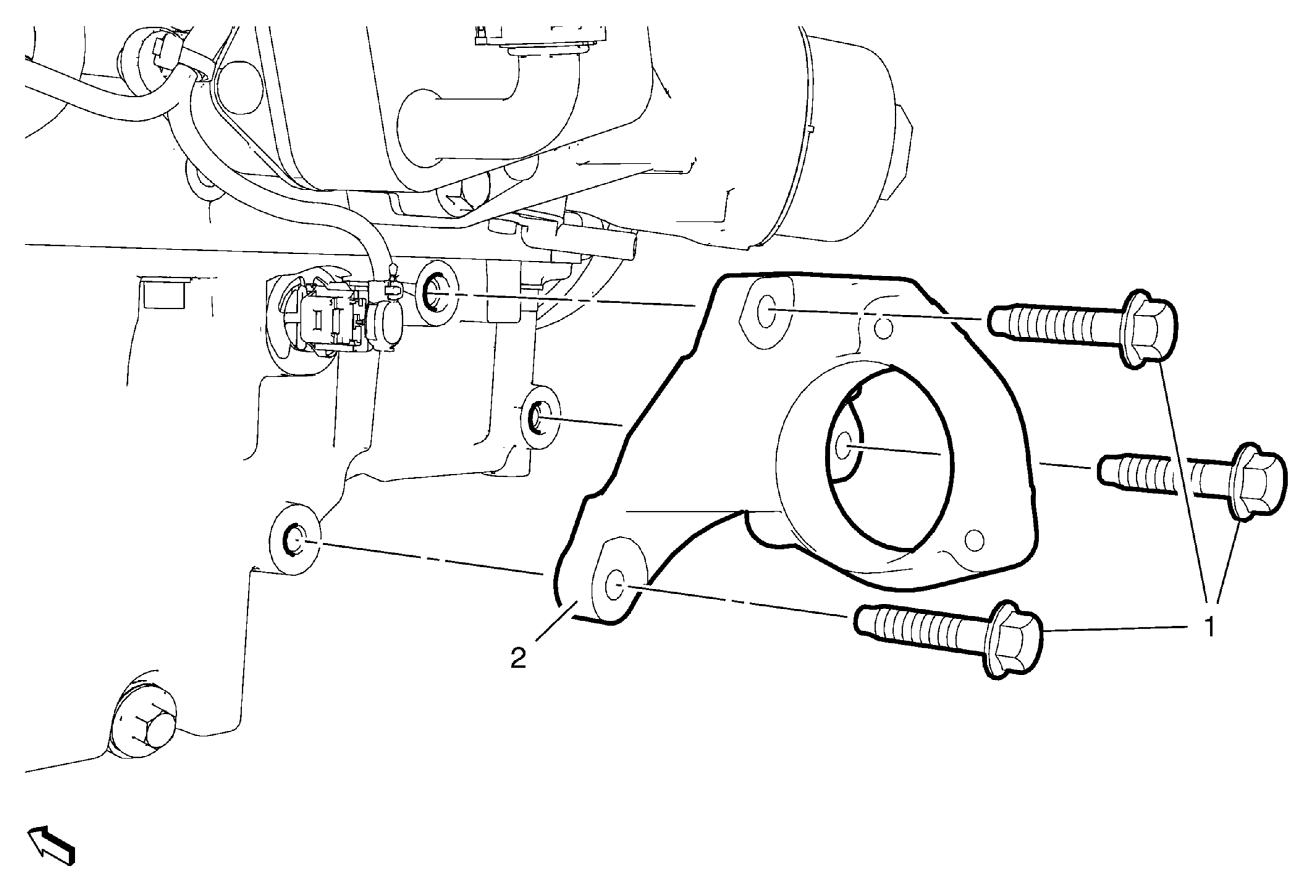

Fig 1: Front Wheel Drive Intermediate Shaft Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front wheel drive intermediate shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement .
1	Front Wheel Drive Intermediate Shaft Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  58 N.m (43 lb ft)
2	Front Wheel Drive Intermediate Shaft Bracket
