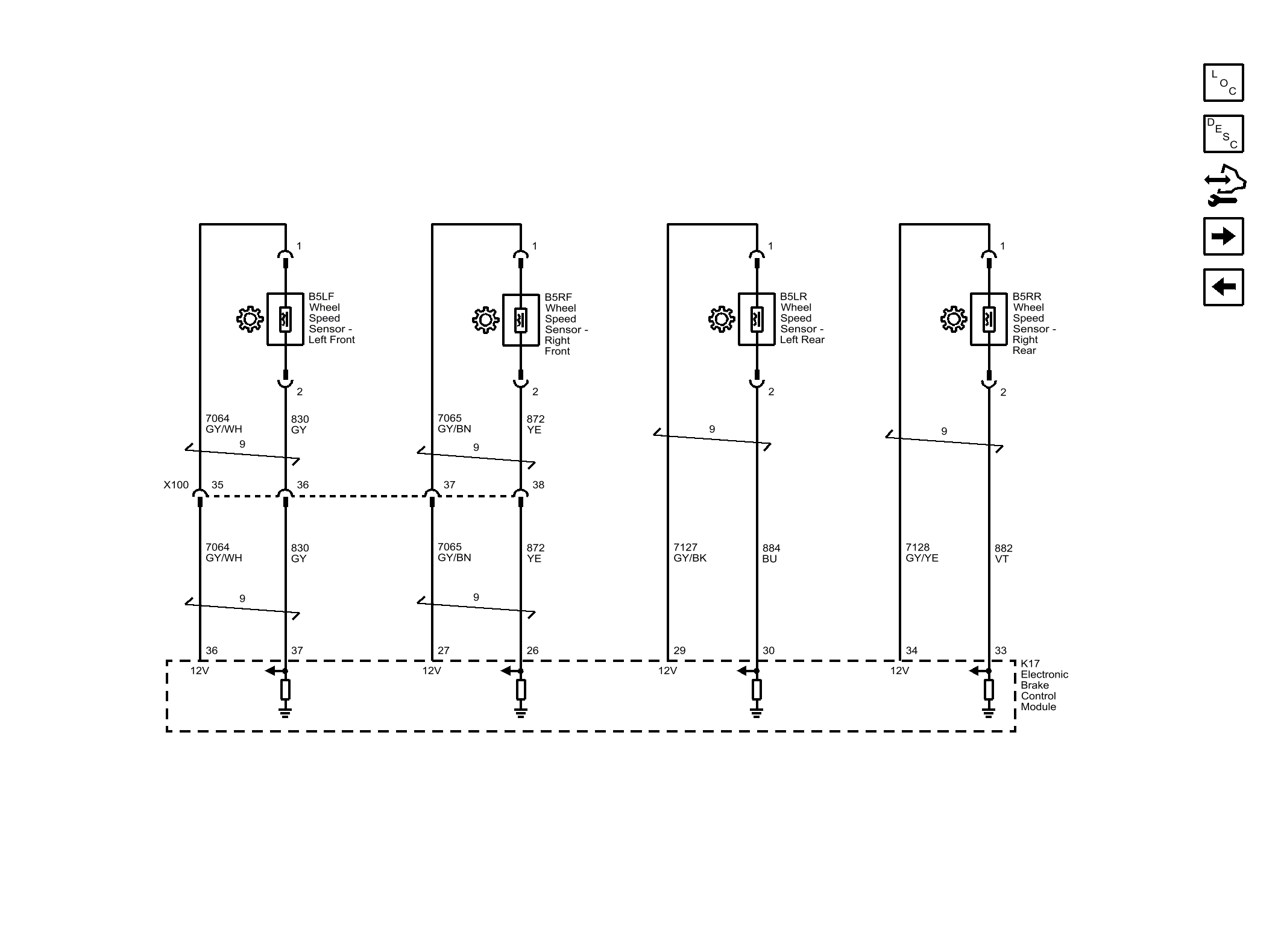

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Anti-Lock Brake System Wiring Schematics >> Wheel Speed Sensors
