Power, Ground, Serial Data and Traction Control

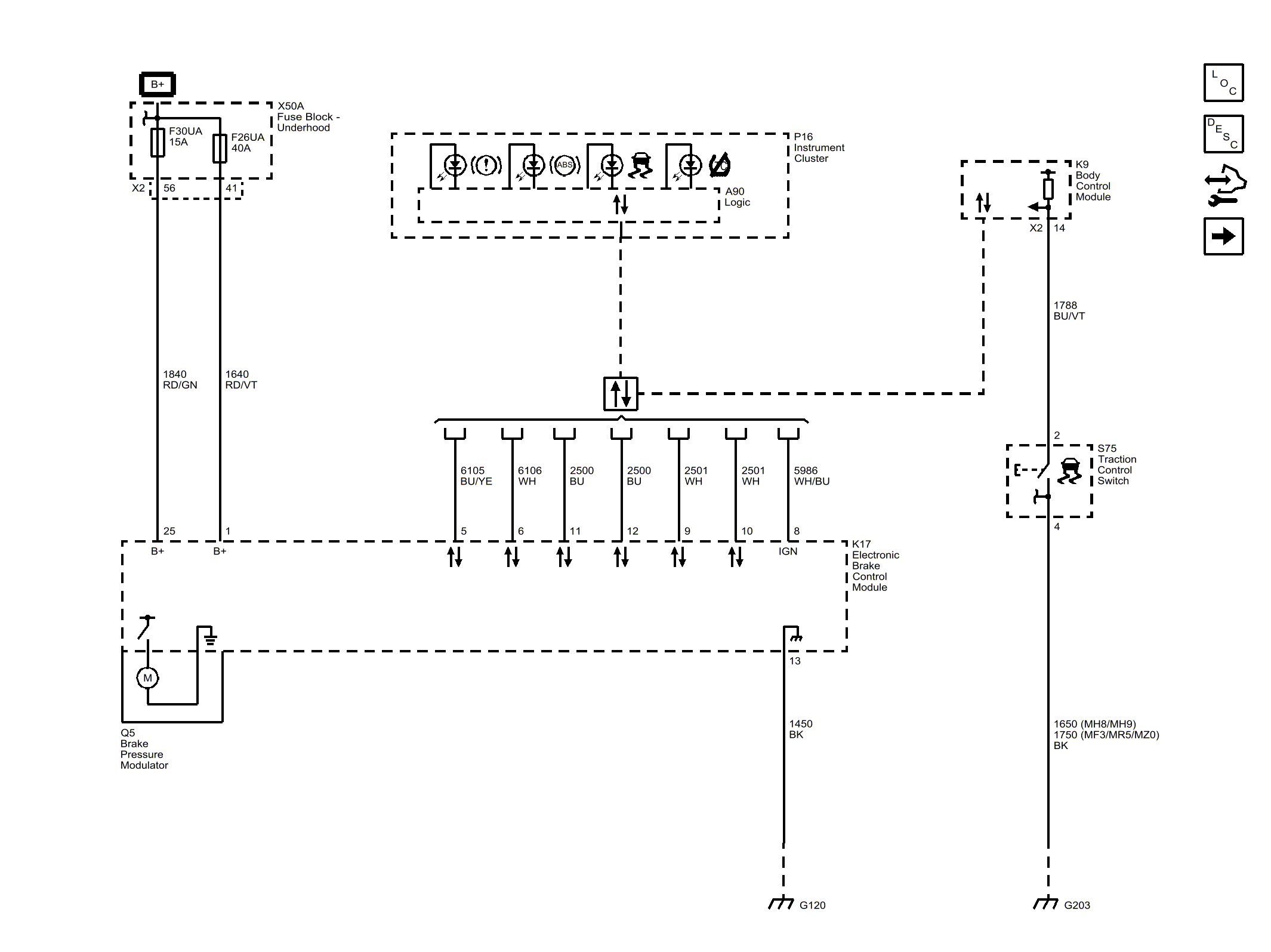

Fig 1: Power, Ground, Serial Data and Traction Control

GM3814057

Courtesy of GENERAL MOTORS COMPANY
