Installation Procedure
- Insert the park brake cable through the opening in the backing plate. Only install the cable return spring to just rearward of the spring positioning tab on the backing plate.

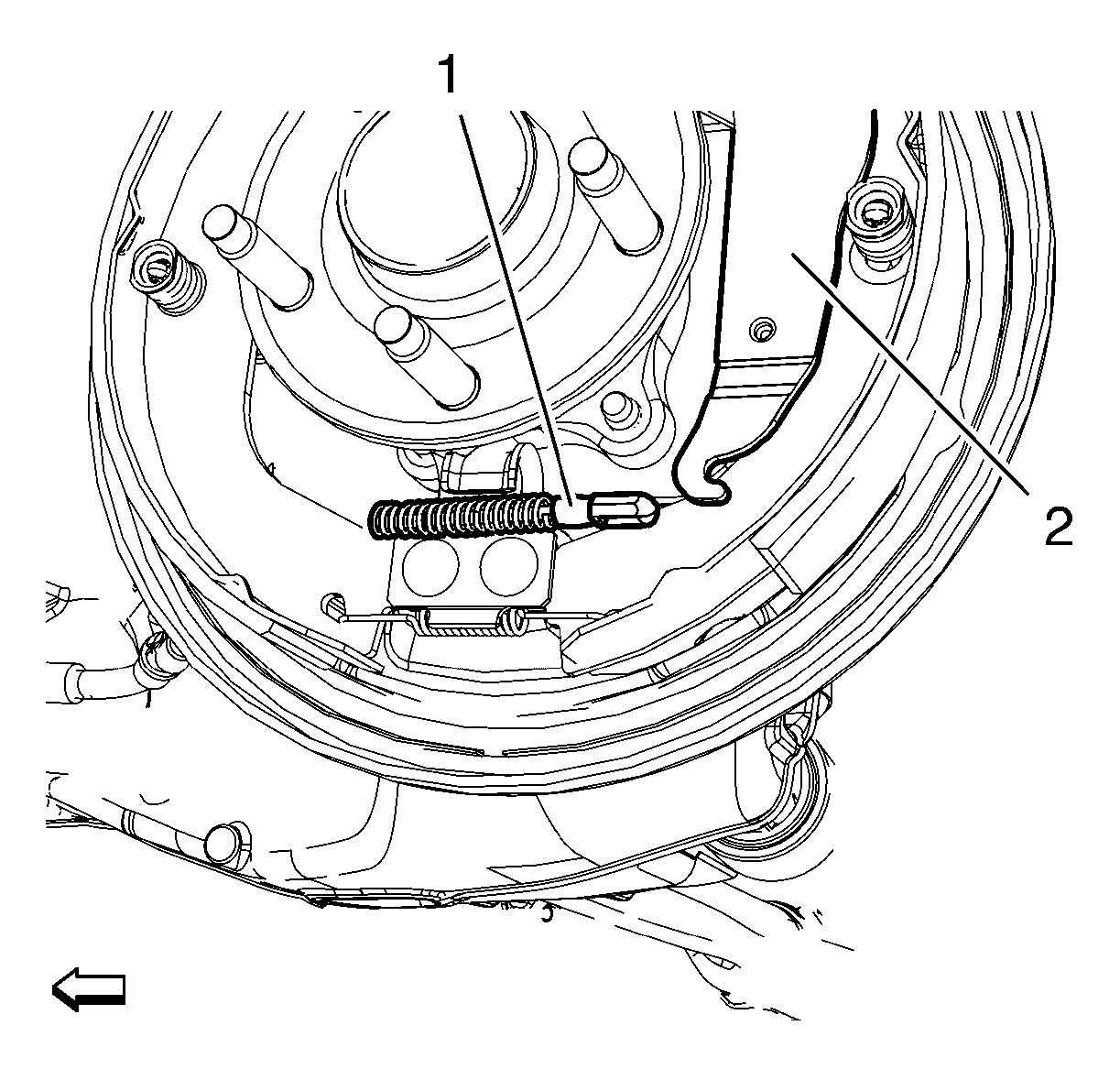

- Push the rear parking brake cable (1) toward the rear of the vehicle, along the outside of the trailing brake shoe, until the cable end is positioned just past the slot on the parking brake lever (2).
Courtesy of GENERAL MOTORS COMPANY
- While holding the rear parking brake cable (1) in position from front to rear, move the cable end to the back of the parking brake lever (2).
- Press the rear parking brake cable (1) into the slot on the lever (2), then pull the cable toward the front of the vehicle to secure the cable end to the slot.
- While continuing to pull the cable away from the lever, insert a flat-bladed screwdriver into the opening on the lever to prevent the cable from lifting out of the slot on the lever.
- Move the cable return spring through the opening in the backing plate.
- Secure the cable fitting to the backing plate. Attempt to pull the park brake cable free of the backing plate, to ensure that the retaining tabs (1) on the fitting are properly secured.
Courtesy of GENERAL MOTORS COMPANY

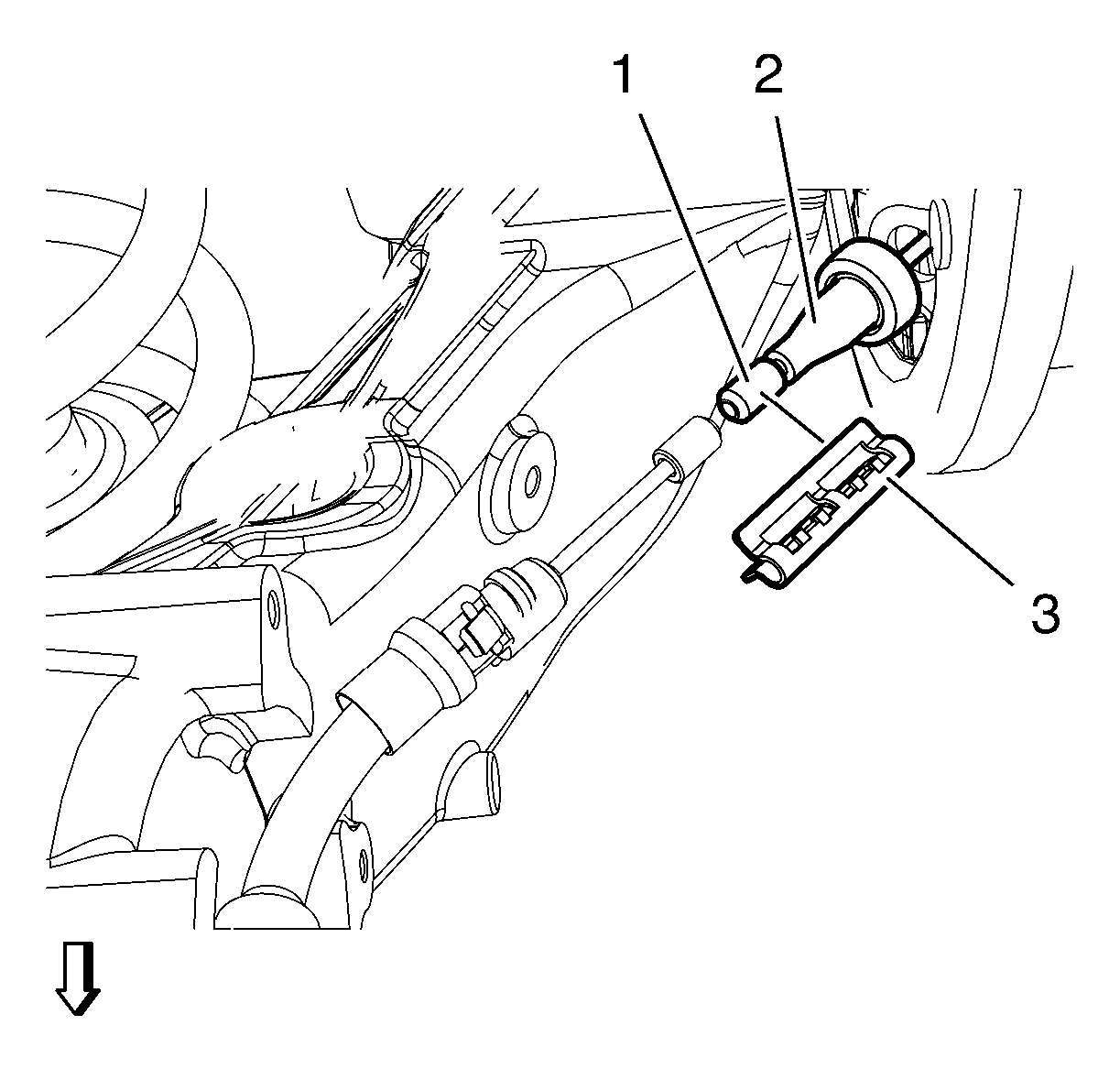

- Install rear parking brake cable (1) to retainer (3).
Courtesy of GENERAL MOTORS COMPANY
- Install rear parking brake cable grommet (2) onto rear backing plate.
- Install brake drum. Refer to Brake Drum Replacement
.
- Adjust the rear drum brakes. Refer to Drum Brake Adjustment
.
- Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
- Lower the vehicle.
