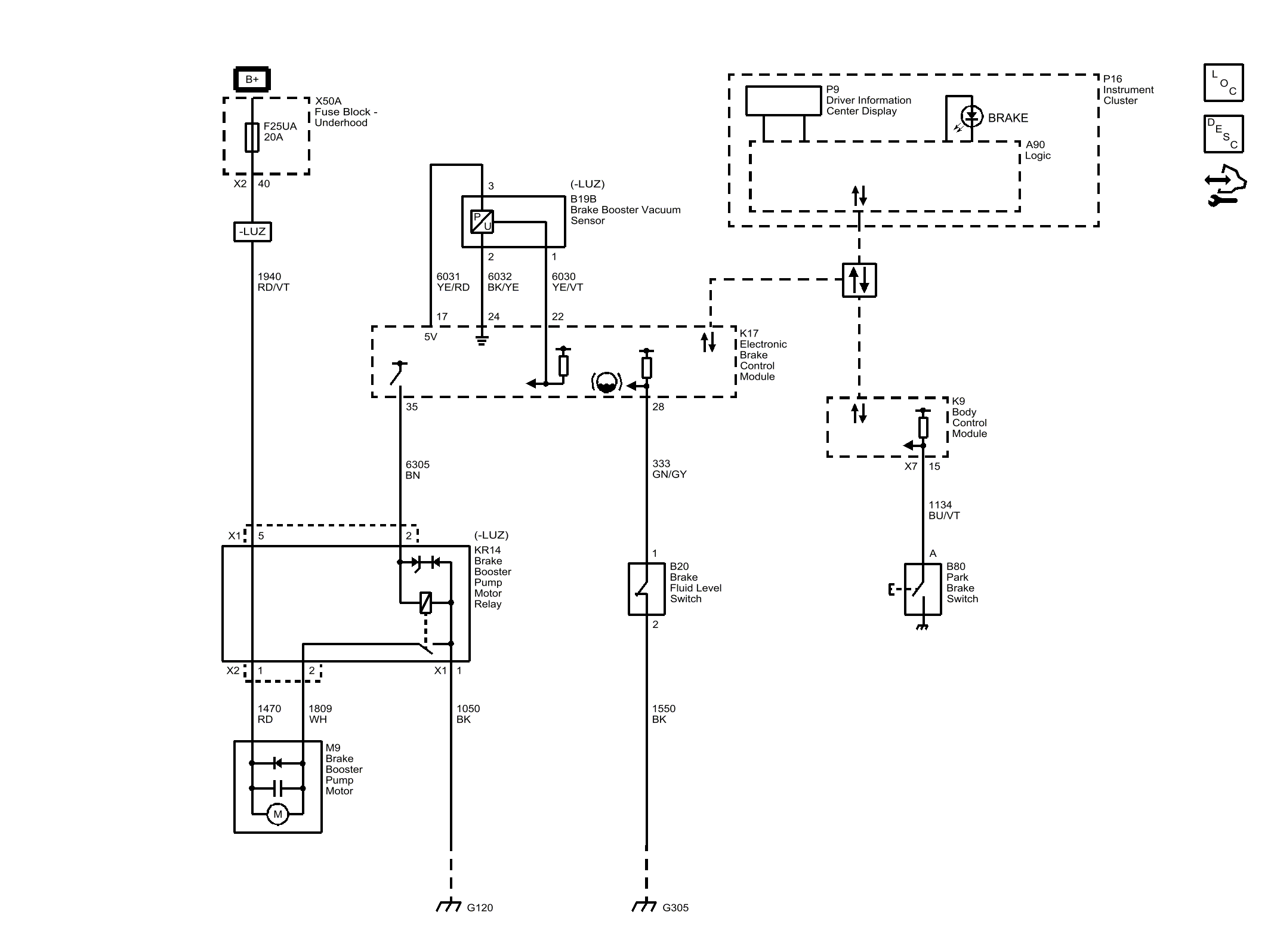

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes
