Power Brake Booster Vacuum Pipe Replacement (1.4L LUV)

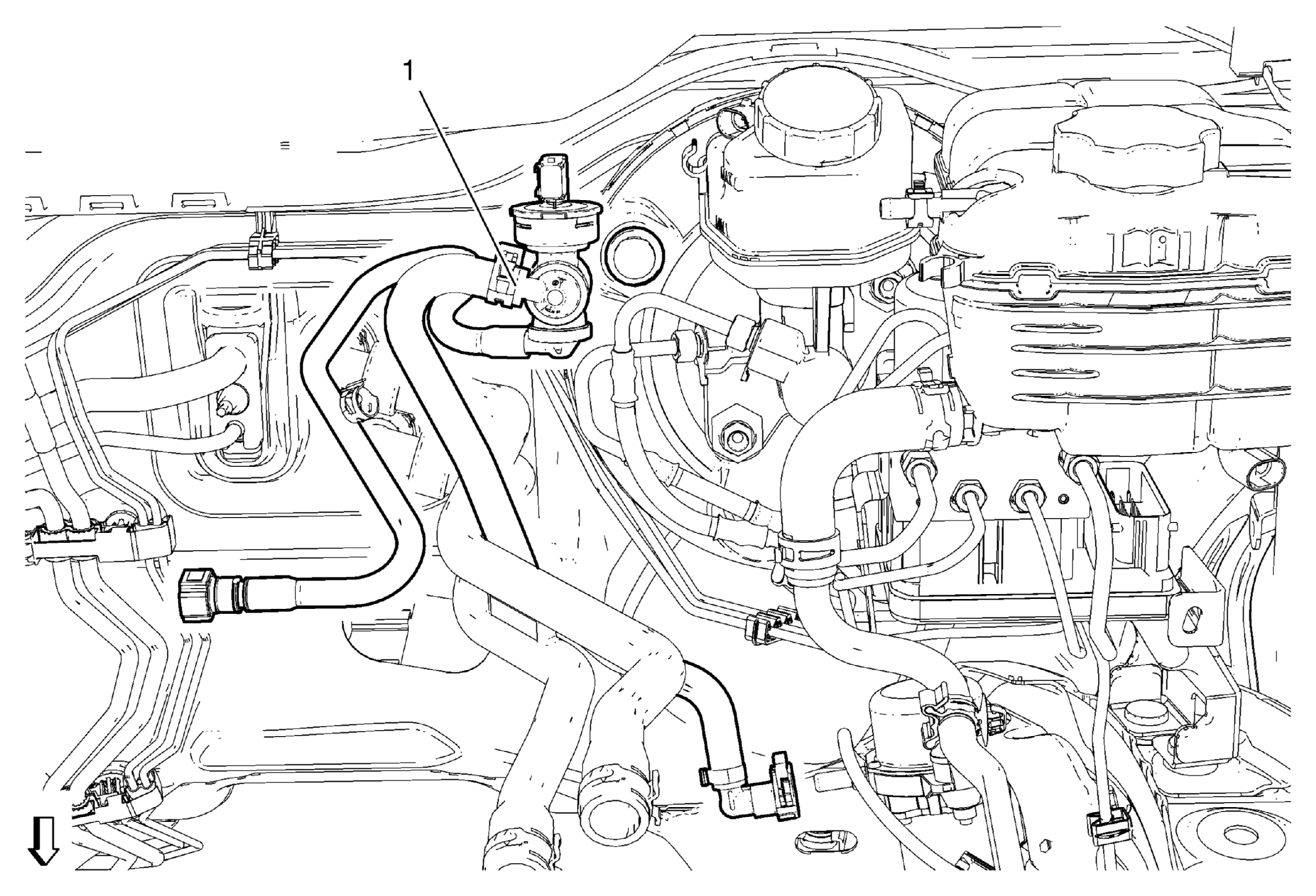

Fig 1: Power Brake Booster Vacuum Pipe (With Electric Pump)
GM2191310Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Power Brake Booster Vacuum Pipe

Procedure

  1. Disconnect quick fitting from intake manifold.
  2. Disconnect wiring harness plug.
  3. Disconnect vacuum pipe from power brake booster.
  4. Disconnect vacuum pipe from power brake booster pump.
