Brake Fluid Level Indicator Switch Replacement

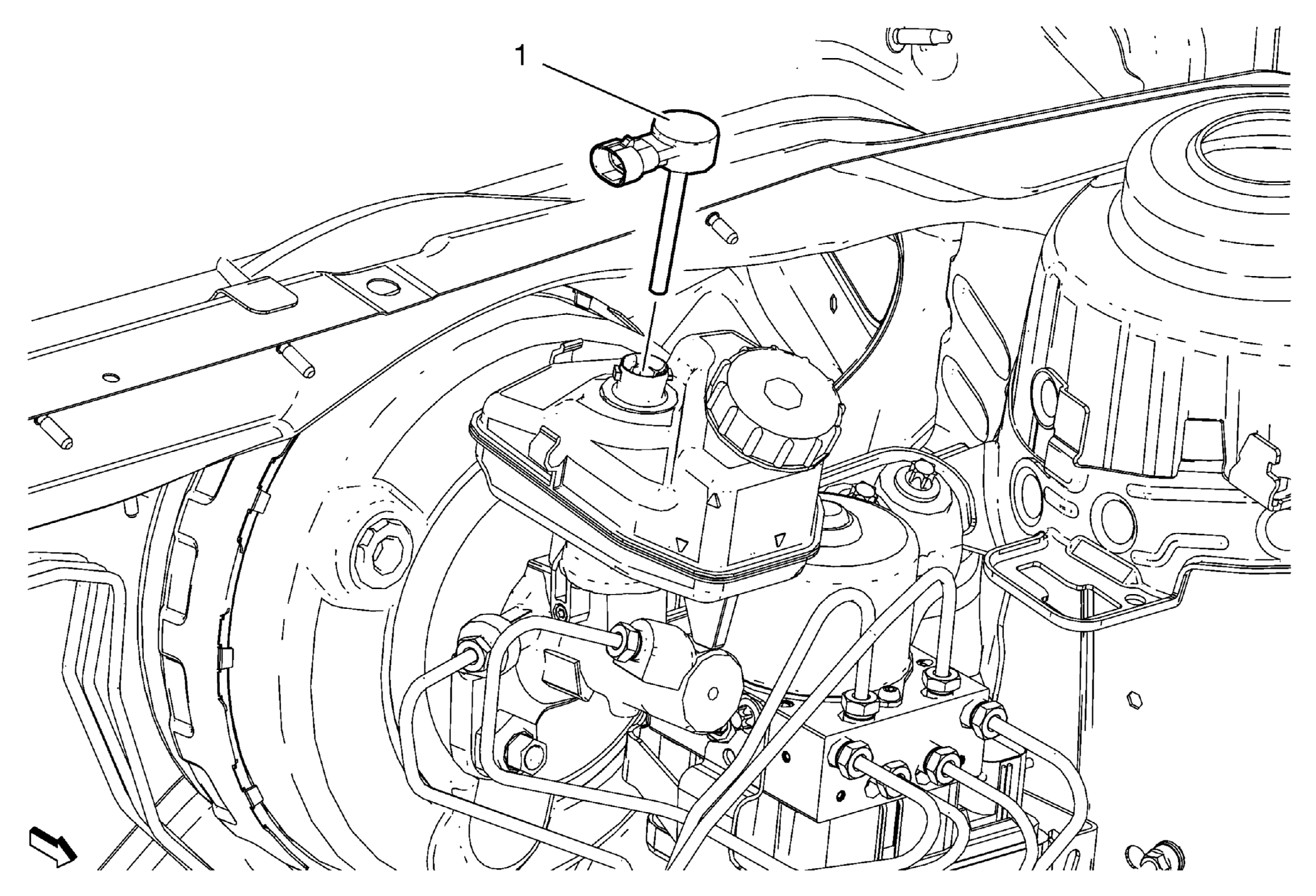

Fig 1: Brake Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedure Remove and discard the brake fluid from the master cylinder reservoir.
1	Brake Fluid Level Indicator Switch Procedure Disconnect electrical connector. Rotate indicator switch clockwise to remove.

Callout

Component Name

WARNING: Refer to Brake Fluid Irritant Warning .

Preliminary Procedure Remove and discard the brake fluid from the master cylinder reservoir.

Brake Fluid Level Indicator Switch

Procedure
