Installation Procedure

  1. Install the lower spring to front brake shoe.

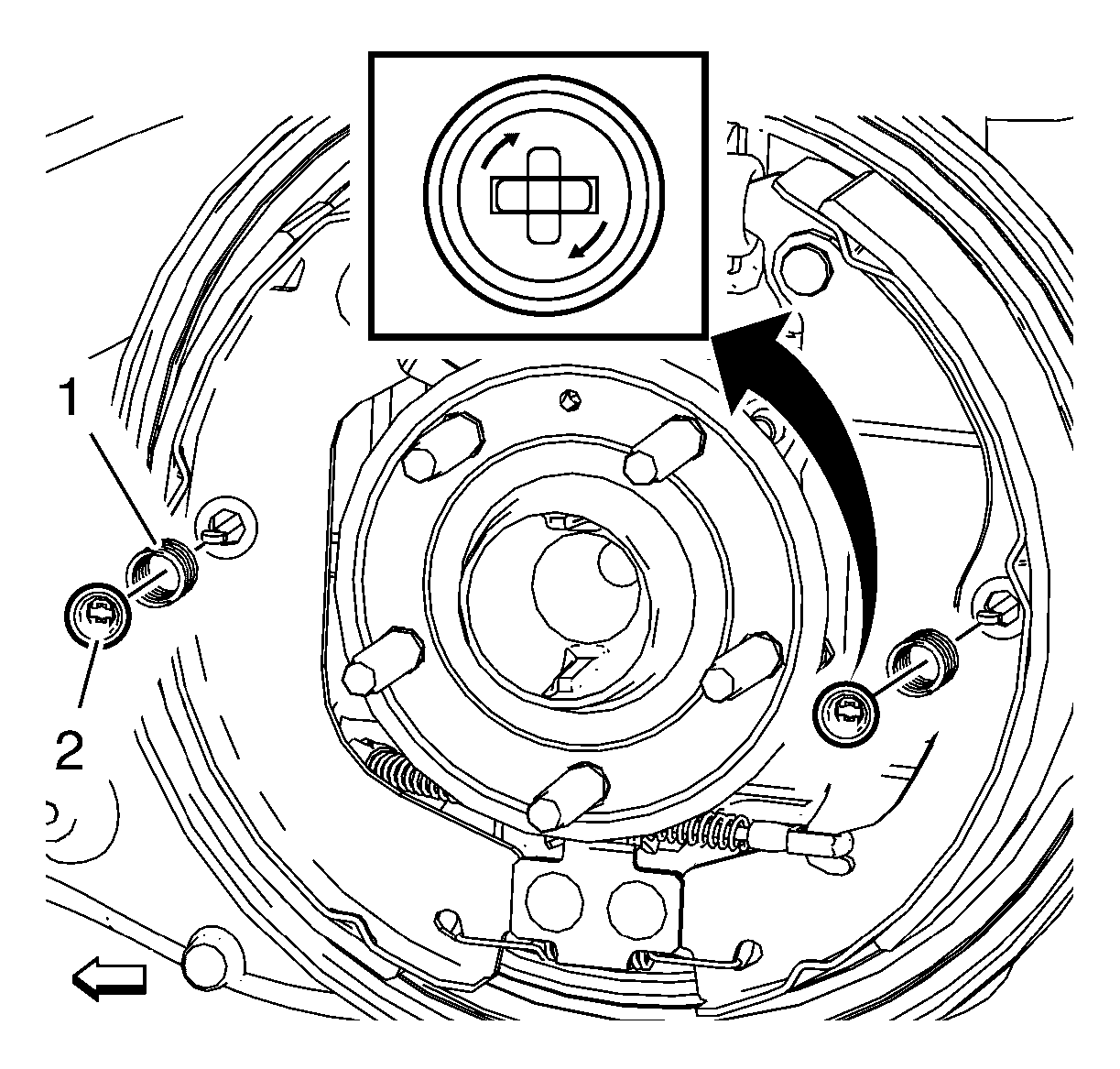

    Fig 1: Brake Shoe Springs
    GM2027578Courtesy of GENERAL MOTORS COMPANY
  2. Install the brake shoe springs (1), using the CH 346  mounting tool to twist spring caps.
  3. Install the adjuster spring (1). Ensure that the loop end of the spring fully engages the tab on the actuator lever. Ensure that the loop end of the spring fully engages the tab on the actuator lever.
    Fig 2: Brake Shoe Adjuster Spring
    GM2027552Courtesy of GENERAL MOTORS COMPANY
  4. Install the brake drum. Refer to Brake Drum Replacement .
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
