Installation Procedure

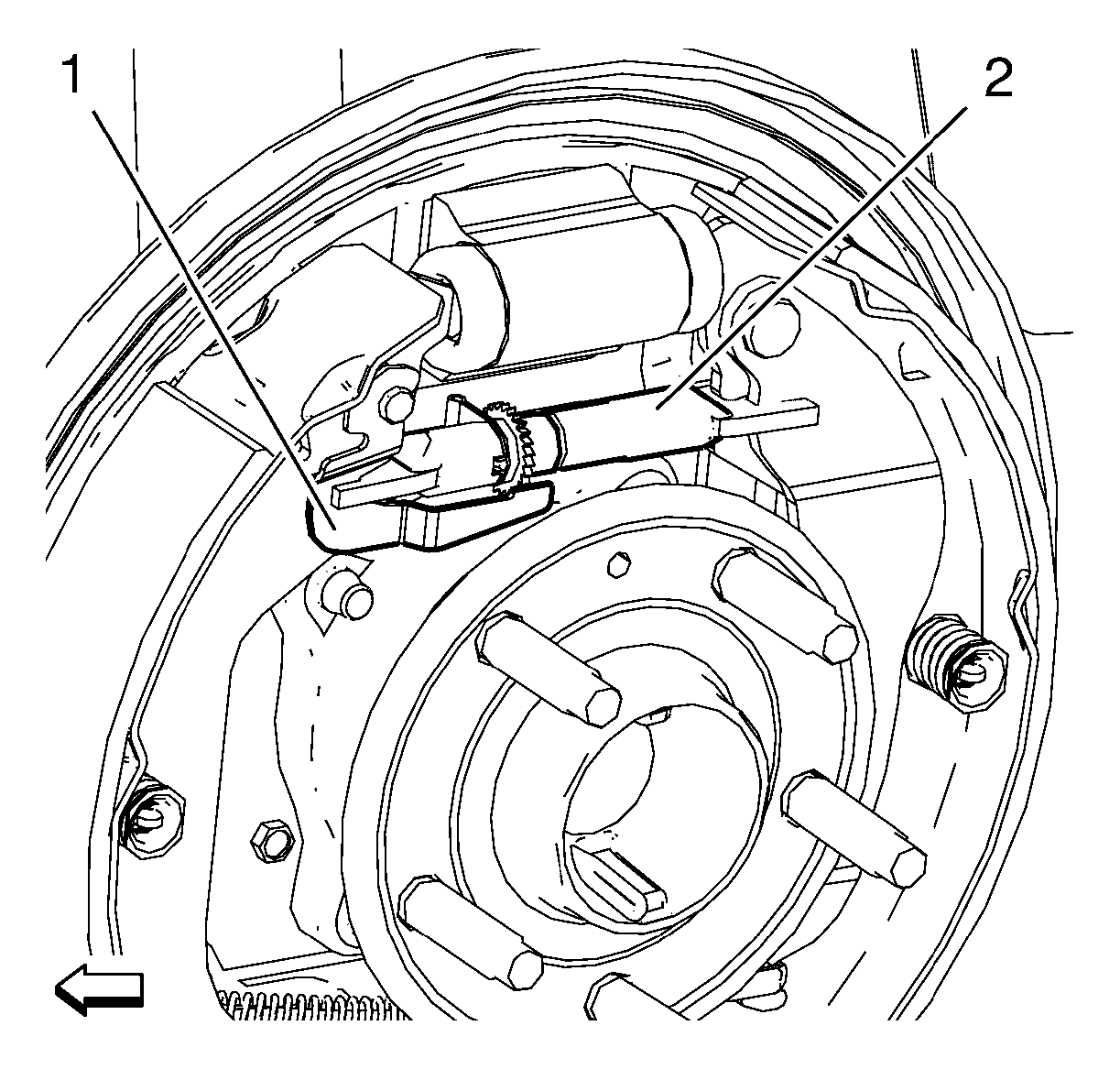

Install the adjuster assembly (2) to the adjuster actuator lever (1).

Fig 1: Drum Brake Adjuster Actuator Lever And Adjuster Assembly
Courtesy of GENERAL MOTORS COMPANY

Turn in the adjuster as far as possible.

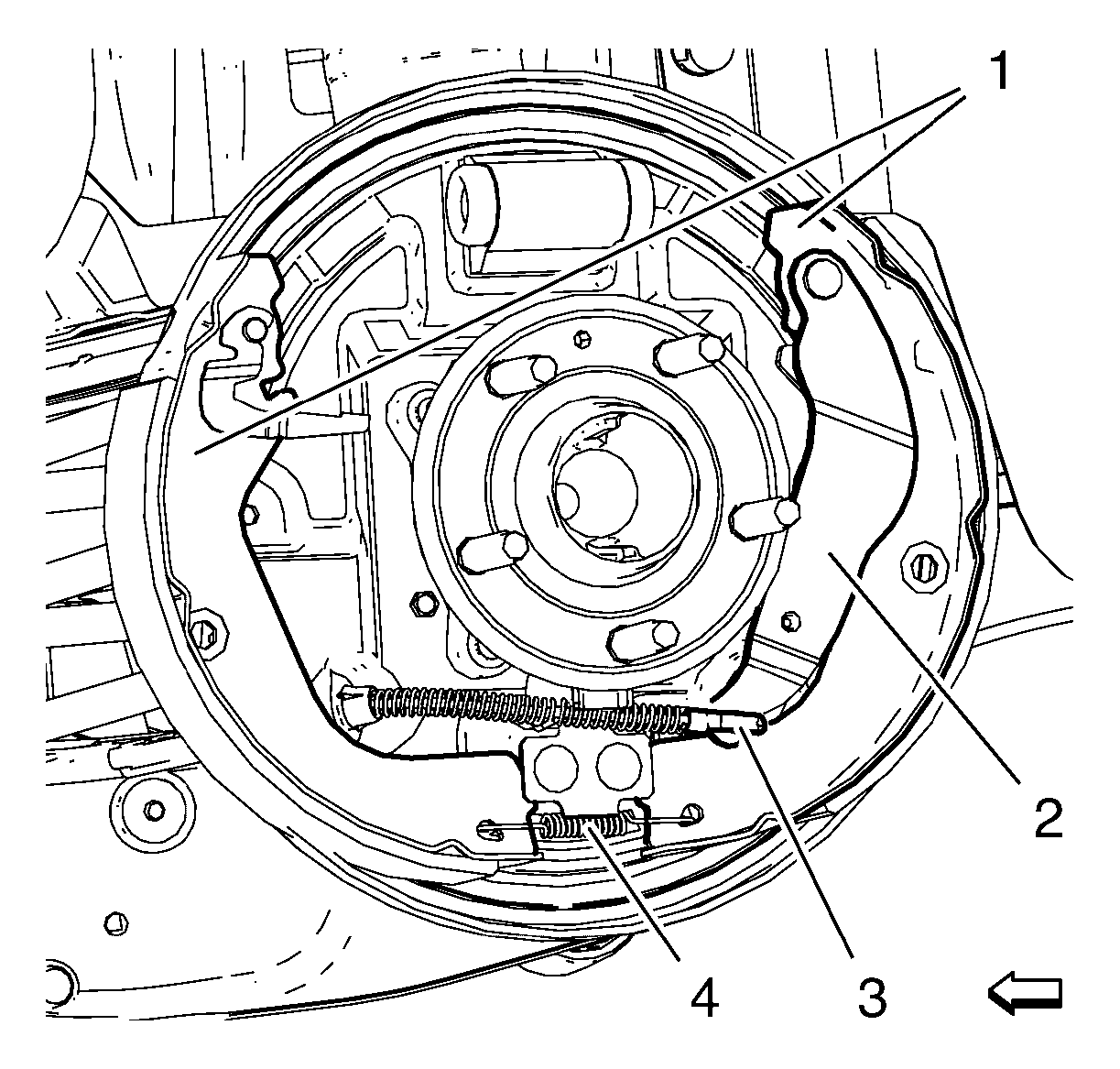

Install the parking brake cable (3) to the parking brake lever (2).

Fig 2: Drum Brake Components
Courtesy of GENERAL MOTORS COMPANY
Install the lower spring (4) to front brake shoe.
Install the brake shoes (1).
Install the brake shoe springs (1), using the CH 346 mounting tool to twist spring caps.

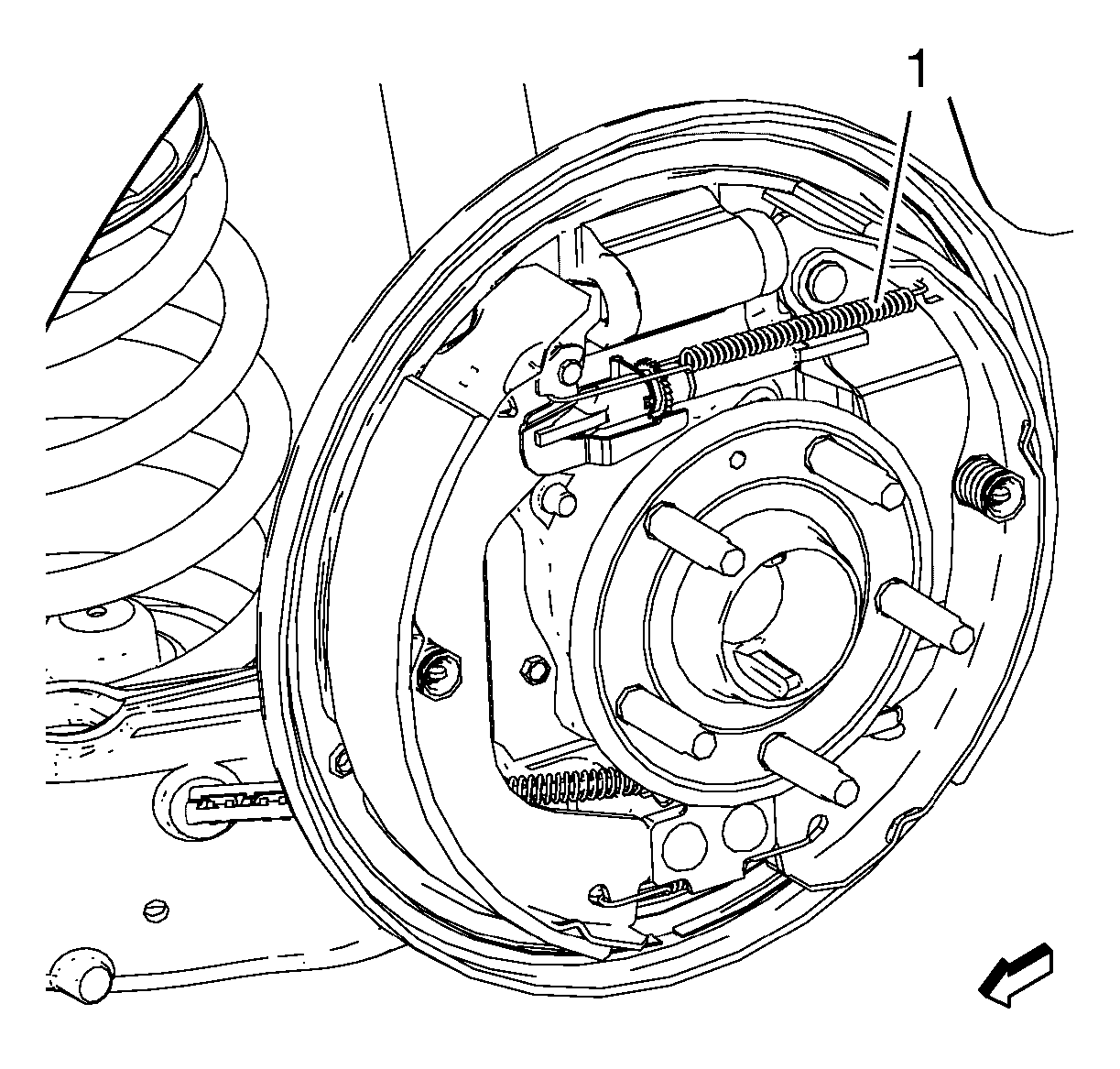

Install the adjuster spring (1). Ensure that the loop end of the spring fully engages the tab on the actuator lever.

Fig 3: Brake Shoe Adjuster Spring
Courtesy of GENERAL MOTORS COMPANY
Install the brake drum. Refer to Brake Drum Replacement .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Lower the vehicle.
