Drum Brake Hardware Inspection

  1. Visually inspect the drum brake system brake shoe springs (3) for the following conditions:

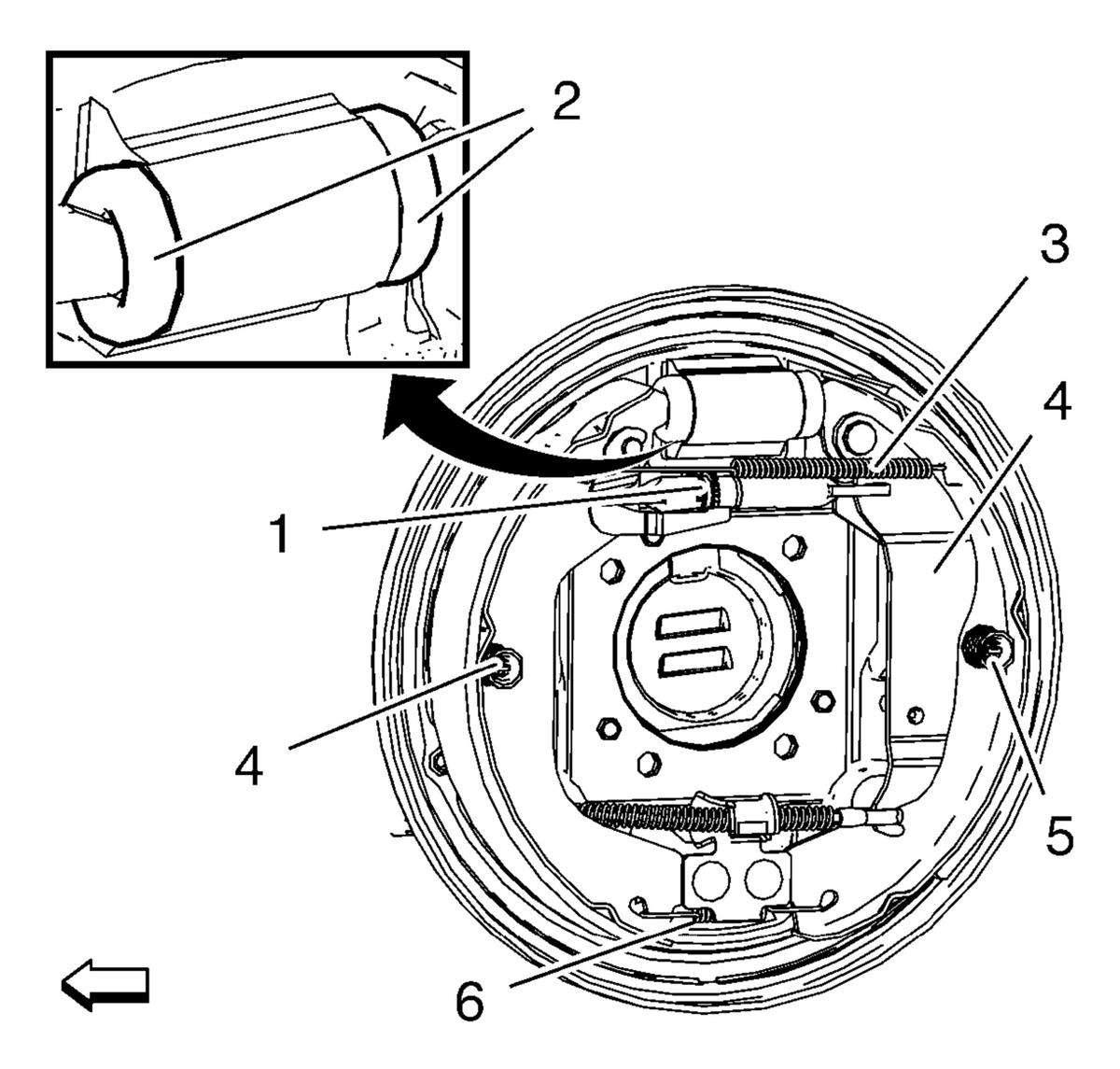

    Fig 1: Identifying Drum Brake Hardware
    GM2027514Courtesy of GENERAL MOTORS COMPANY
    WARNING: Refer to Brake Dust Warning .
    • The brake shoe springs (3) being bent, damaged or broken at any point along the spring
    • Excessive corrosion of brake drum components
    • Excessive stretching, twisting or binding of brake drum components
    • Damages or leakage to the wheel cylinder boots (2)
  2. If any of the conditions listed were found the brake shoe springs and/or the wheel cylinder require replacement. Refer to Brake Shoe Replacement  and/or Rear Brake Cylinder Replacement .
