Installation Procedure

Position the rear brake shield (1) and wheel bearing/hub assembly (2) onto the rear axle assembly.

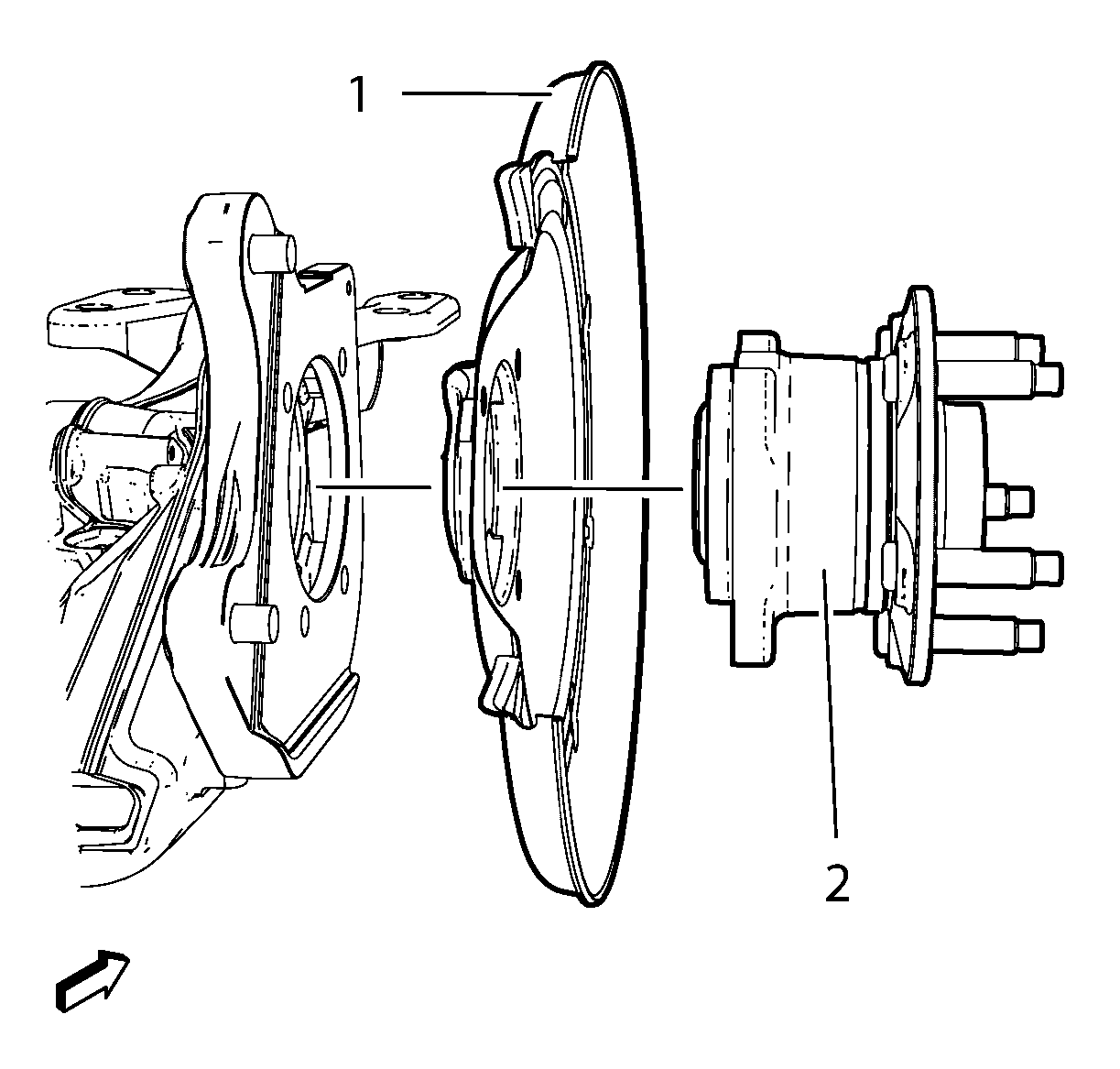

Fig 1: Wheel Bearing/Hub, Rear Brake Shield And Steering Knuckle
Courtesy of GENERAL MOTORS COMPANY
Install wheel bearing/hub mounting bolts (1) and tighten a first pass to 50 N.m (37 lb ft).

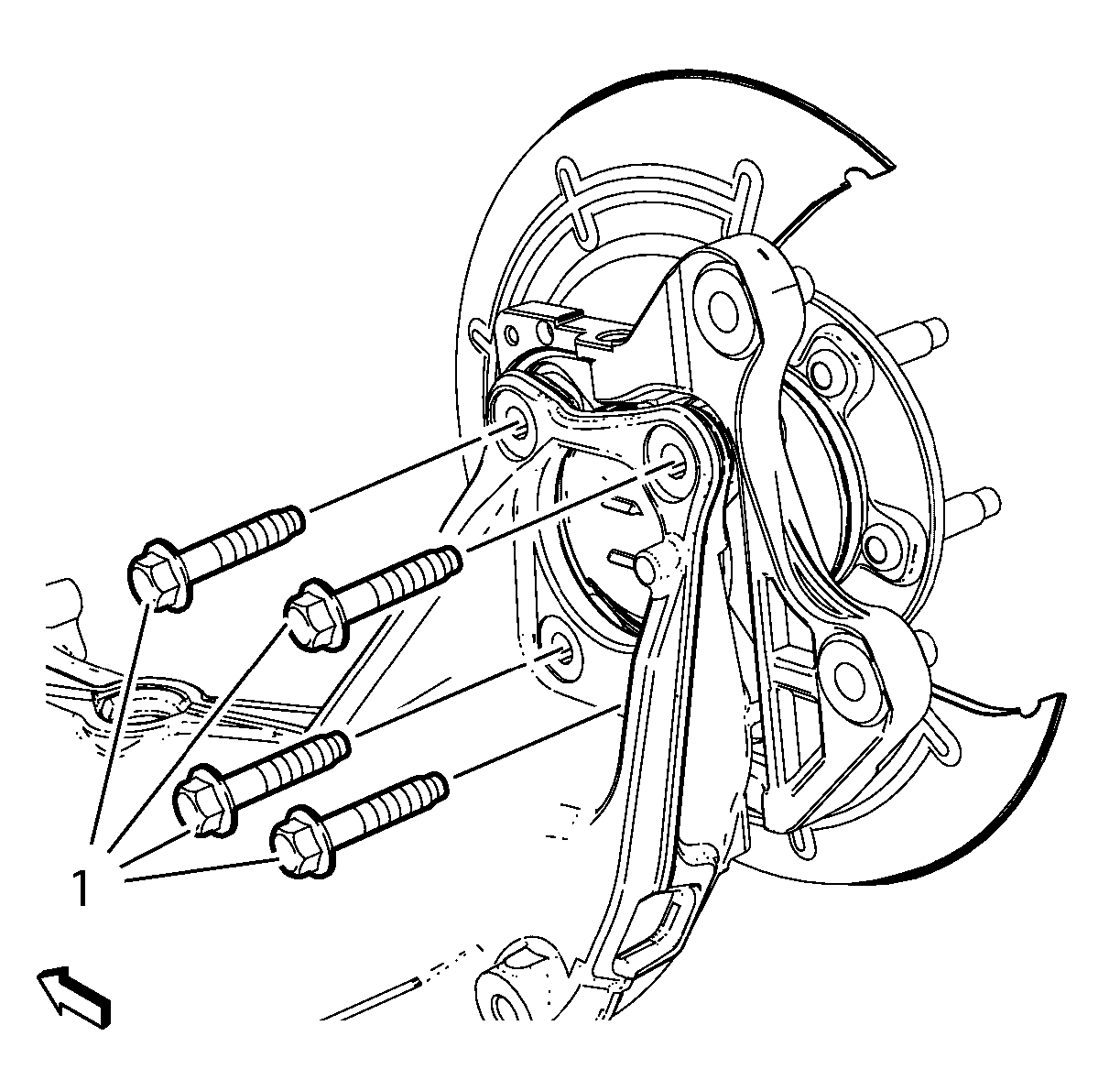

Fig 2: Wheel Bearing/Hub Mounting Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Tighten the wheel bearing/hub mounting bolts (1) a final pass to an additional 30 - 45 degrees, using the EN-45059 meter.
Install the wheel speed sensor (2).

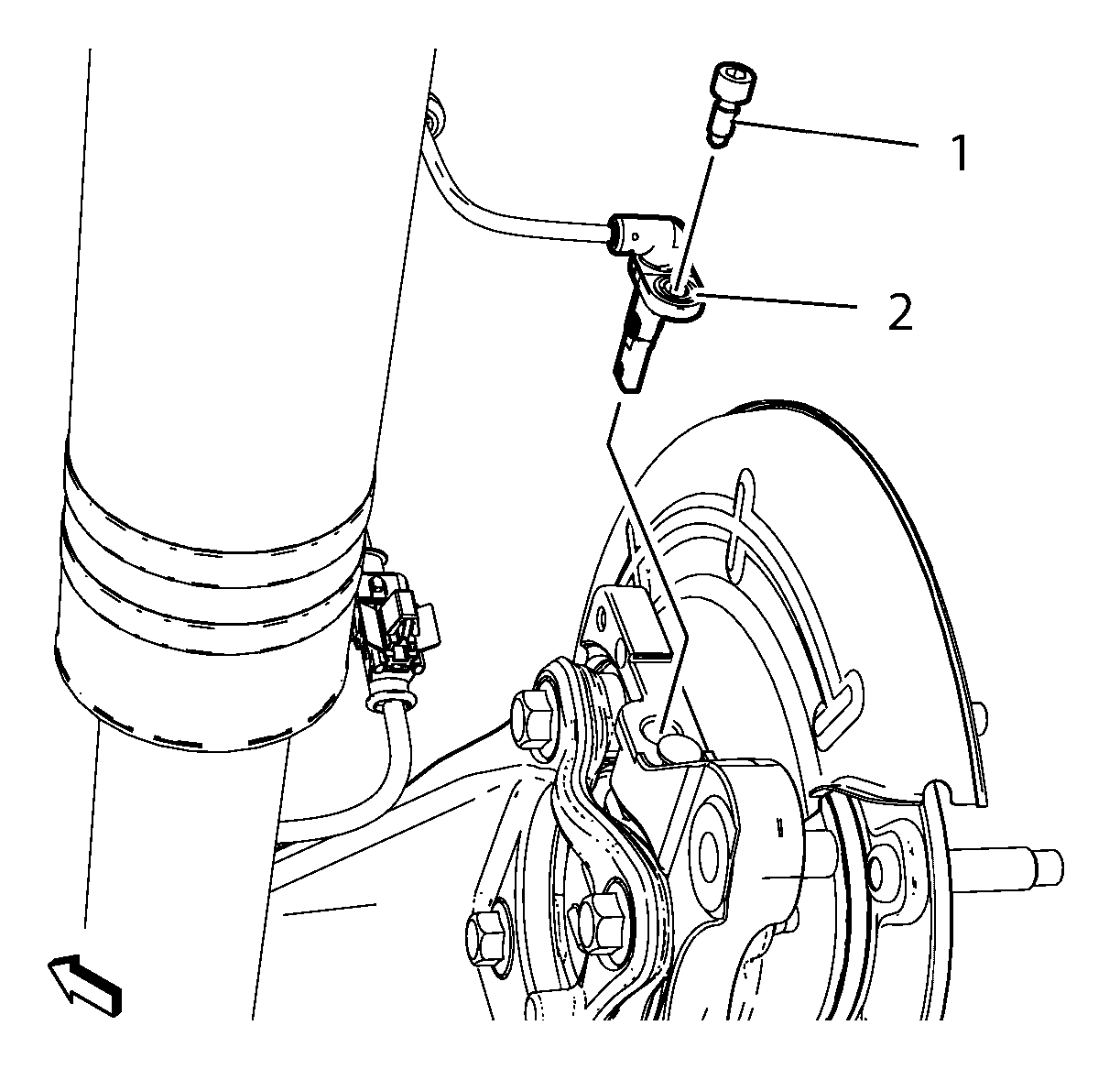

Fig 3: Wheel Speed Sensor And Wheel Speed Sensor Mounting Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the wheel speed sensor bolt (1) and tighten to 6 N.m (53 lb in).
Install the brake rotor. Refer to Rear Brake Rotor Replacement .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
