Installation Procedure

  1. Install the damper stud (1) to the rear brake and tighten to 28 N.m (21 lb ft).

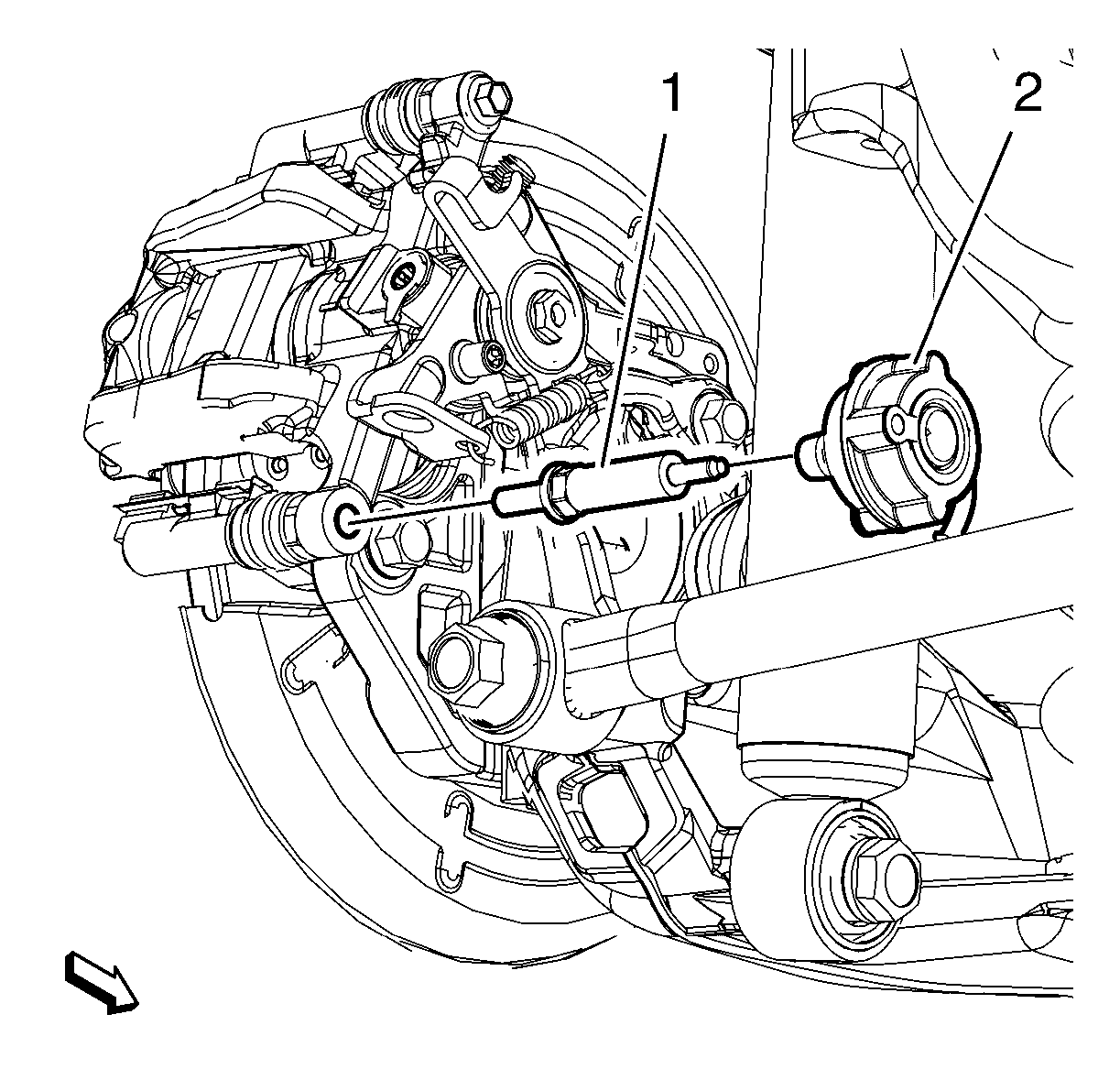

    Fig 1: Brake Caliper Vibration Damper And Brake Caliper Vibration Damper Stud
    GM2192643Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Attach the brake caliper vibration damper (2) to the stud (1) by turn in 2 threads ONLY.
  3. Tighten the brake caliper vibration damper (2) to 9 N.m (80 lb in) with a suitable tool.
  4. Close the cap (2) of the brake caliper vibration damper (1).

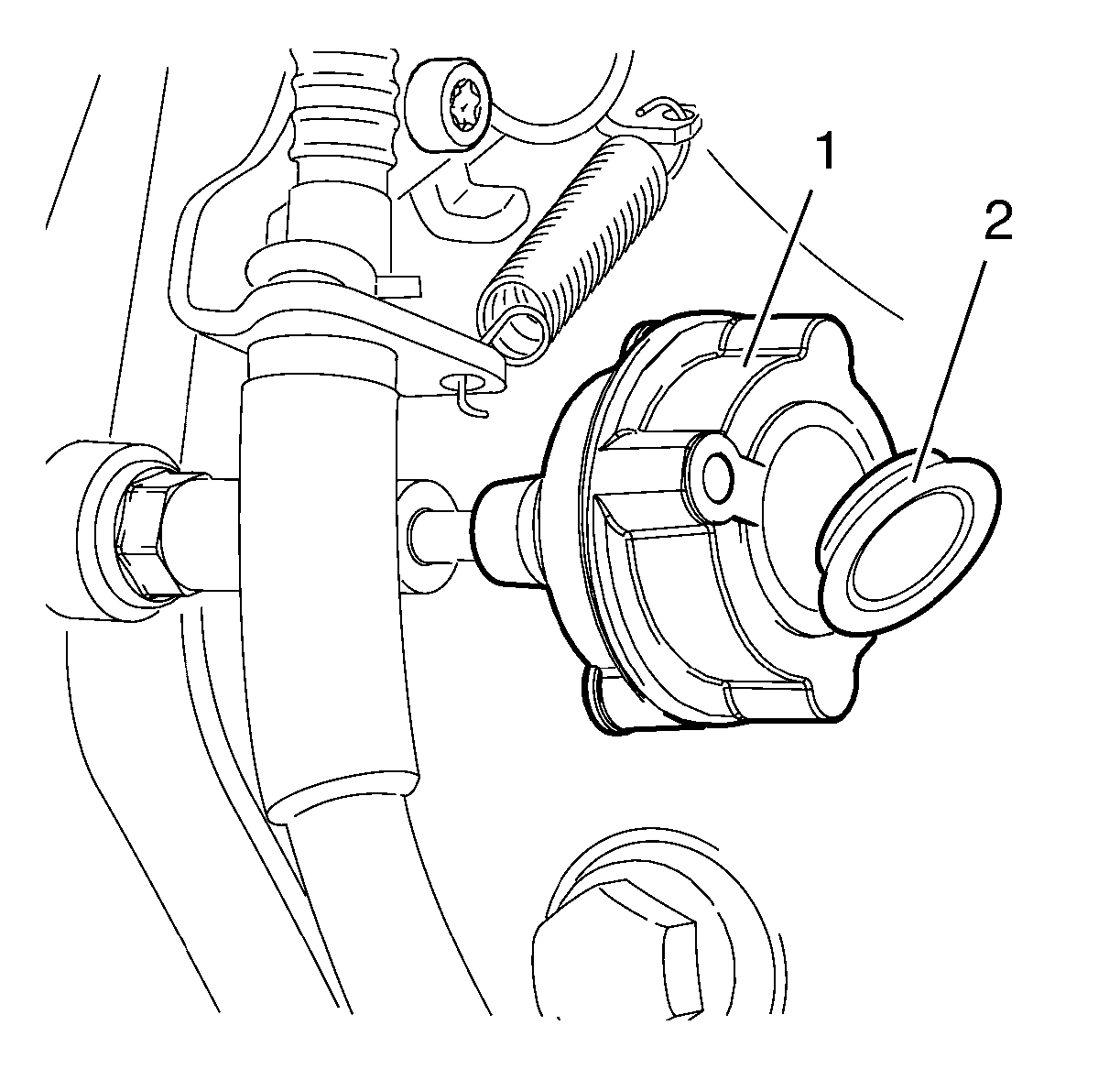

    Fig 2: Brake Caliper Vibration Damper
    GM2192646Courtesy of GENERAL MOTORS COMPANY
  5. Lower the vehicle.
