Installation Procedure

Install the brake caliper bracket.

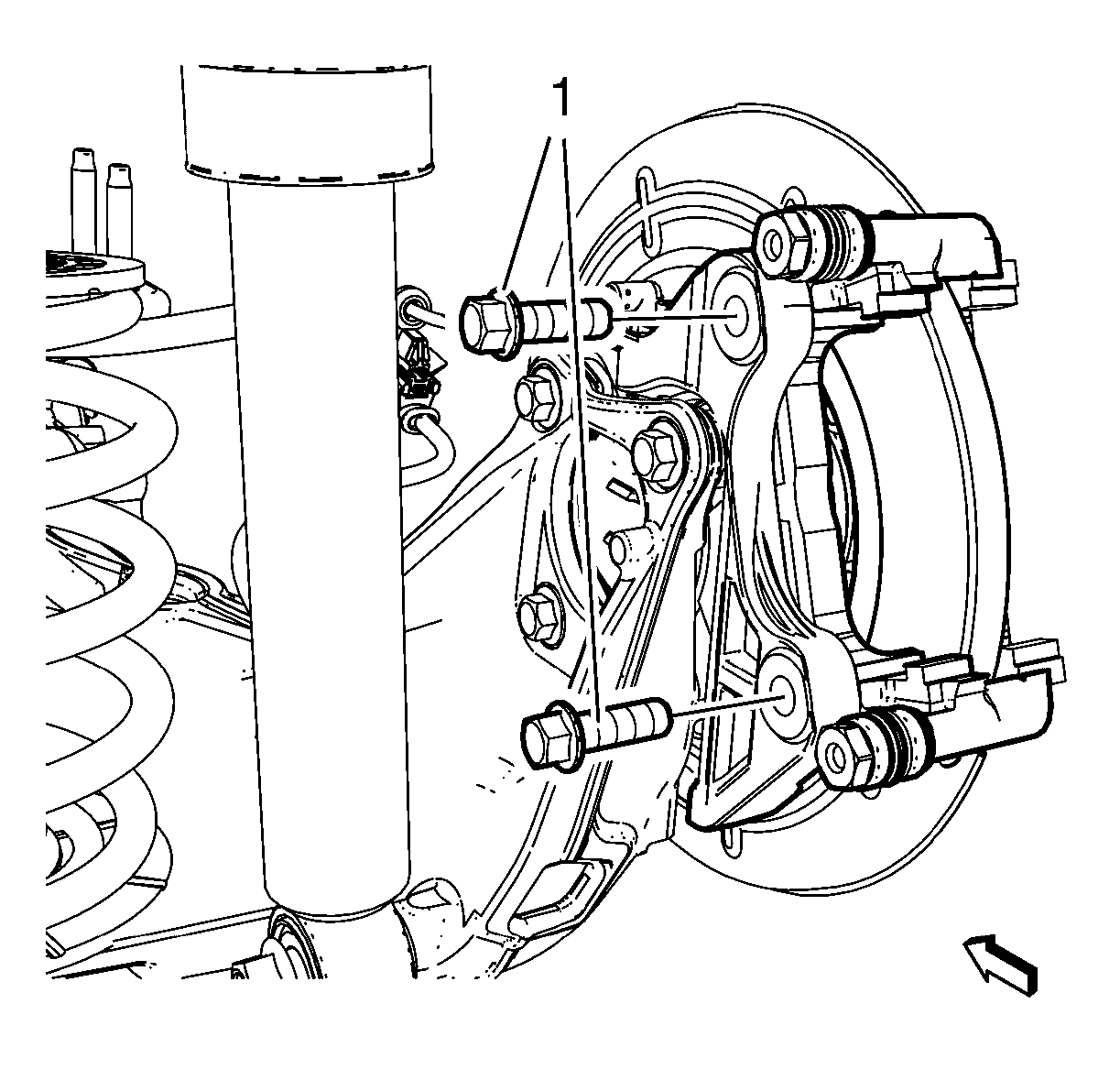

Fig 1: Brake Caliper Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY
Install the brake caliper mounting bracket bolts (1) and tighten a first pass to 100 N.m (74 lb ft).
CAUTION: This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.

CAUTION: Refer to Fastener Caution .
Tighten the brake caliper mounting bracket bolts (1) a final pass to an additional 15 - 30 degrees, using the EN-45059 meter.
Install the brake pad retainers (2) to the brake caliper bracket (3).

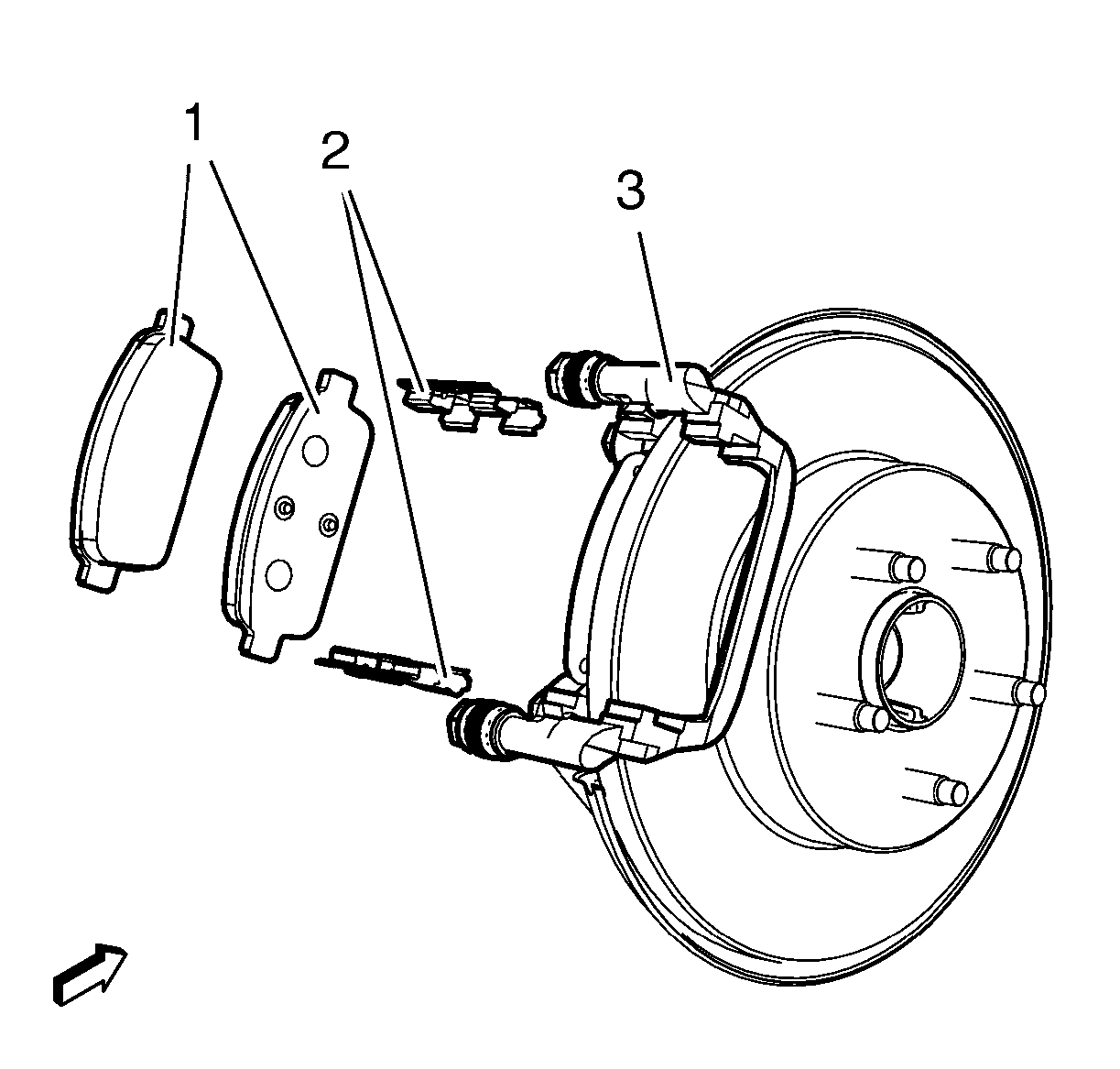

Fig 2: Brake Caliper Mounting Bracket And Brake Pads
Courtesy of GENERAL MOTORS COMPANY
Install the brake pads (1) to the brake caliper bracket.
Install the brake caliper. Refer to Rear Brake Caliper Replacement .
Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
Pump the brake pedal 2-3 times in order to seat the rear disc brake pads to the rotor.
