Installation Procedure
- Using the CH-42450-A

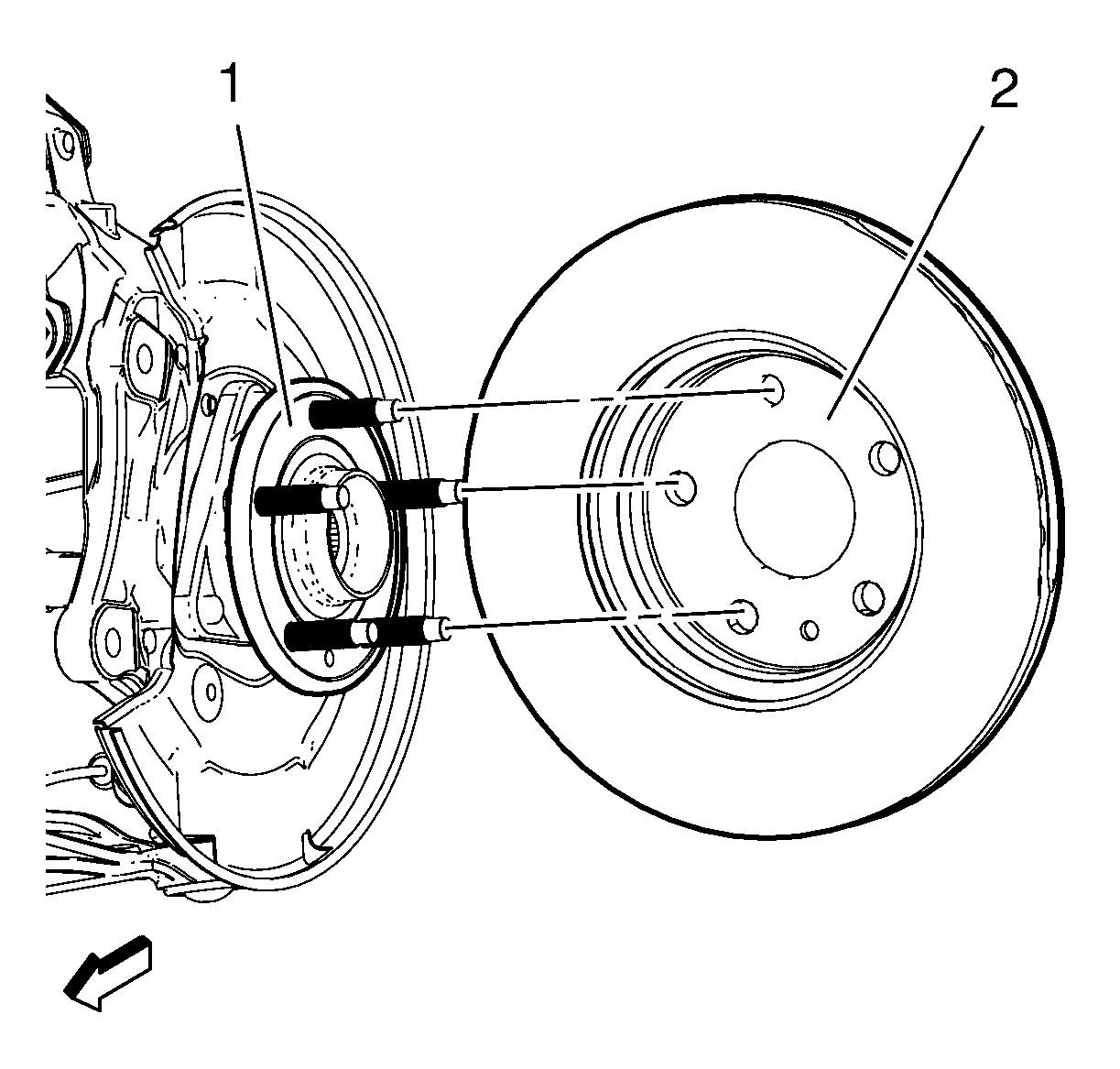

resurfacer, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange (1).
Courtesy of GENERAL MOTORS COMPANY
NOTE: Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminants should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation. - Using the CH-41013 resurfacer, thoroughly clean any rust or corrosion from the mating surface and the mounting surface of the brake rotor (2).
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure that there are no foreign particles or debris remaining.

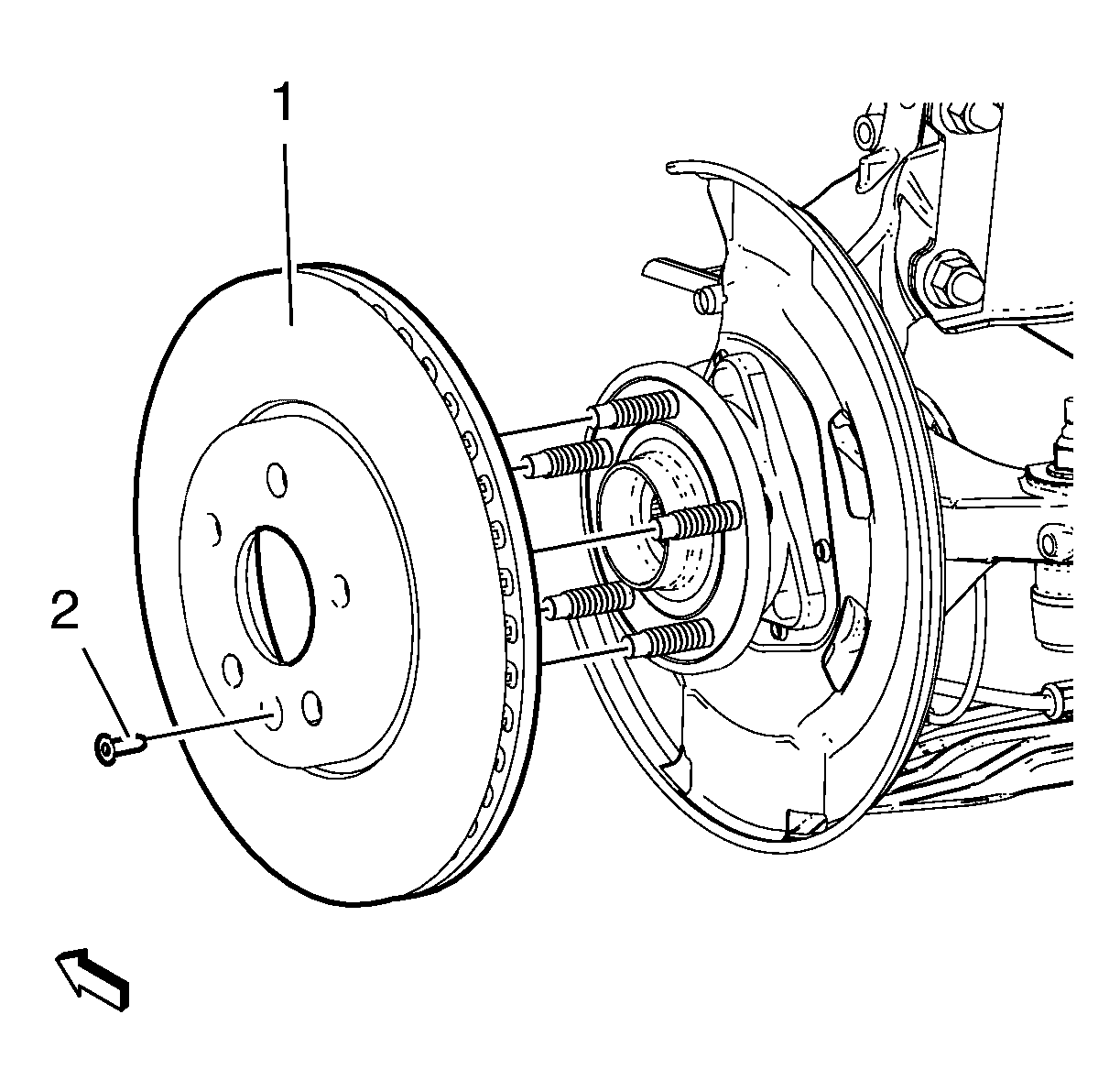

- Install the brake rotor (1) to the hub/axle flange and tighten bolt (2) to 9 N.m (80 lb in).
CAUTION: Refer to Fastener Caution .
- If the brake rotor was removed and installed as a part of a brake system repair, measure the assembled lateral runout of the brake rotor to ensure optimum performance of the disc brake. Refer to Brake Rotor Assembled Lateral Runout Measurement .
- If the brake rotor assembled lateral runout measurement exceeds the specification, bring the lateral runout to within specifications. Refer to Brake Rotor Assembled Lateral Runout Correction .
- Remove the support and install the brake caliper and the brake caliper bracket as an assembly to the steering knuckle.

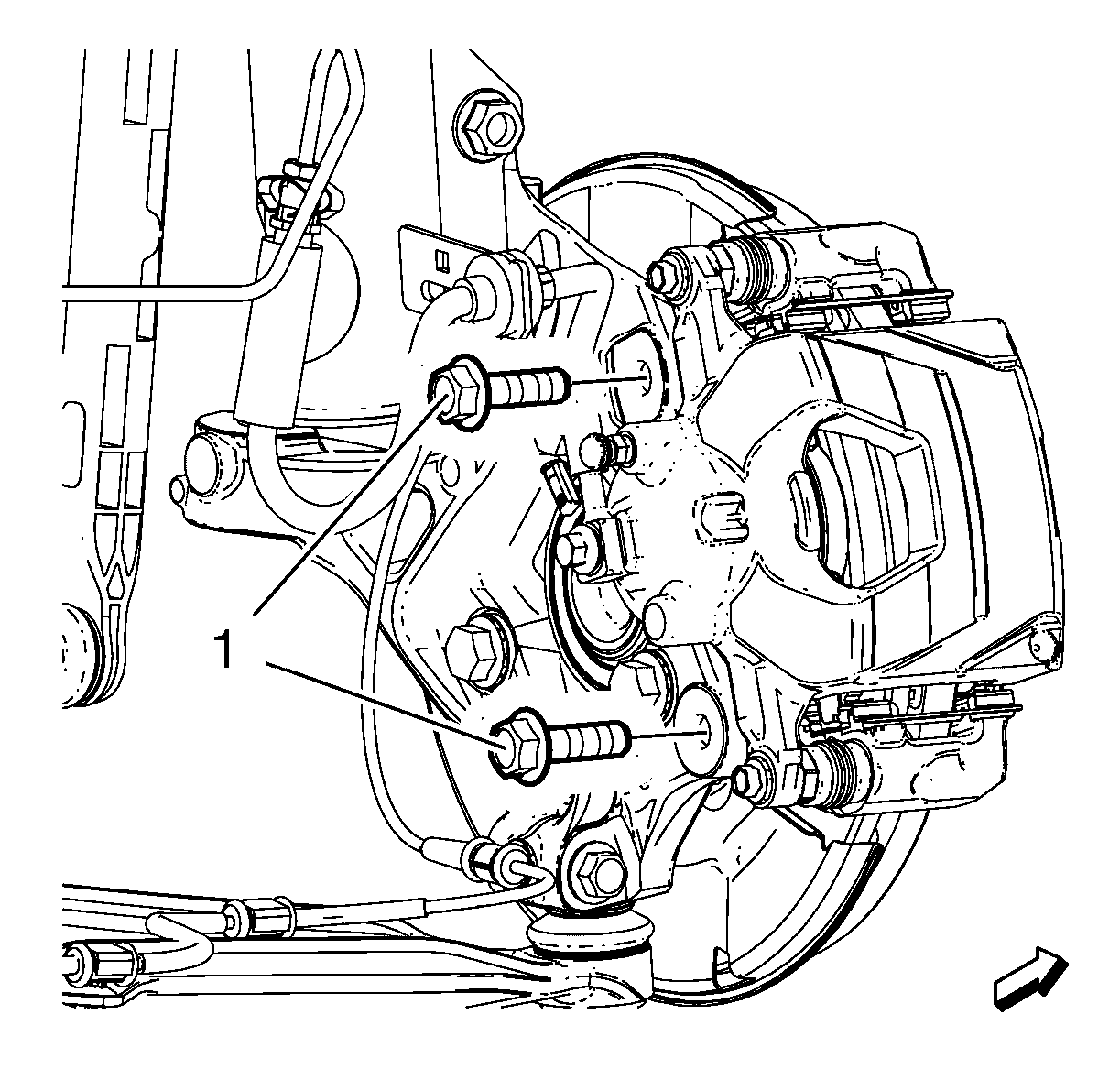

- Install the brake caliper bracket bolts (1) and tighten first pass to 150 N.m (111 lb ft).
- Tighten the brake caliper bracket bolts in a final pass to an additional 15 - 30 degrees using the EN-45059 meter.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
