Removal Procedure

Inspect the fluid level in the brake master cylinder reservoir.
WARNING: Refer to Brake Dust Warning .
If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the brake caliper lower guide pin bolt (2).

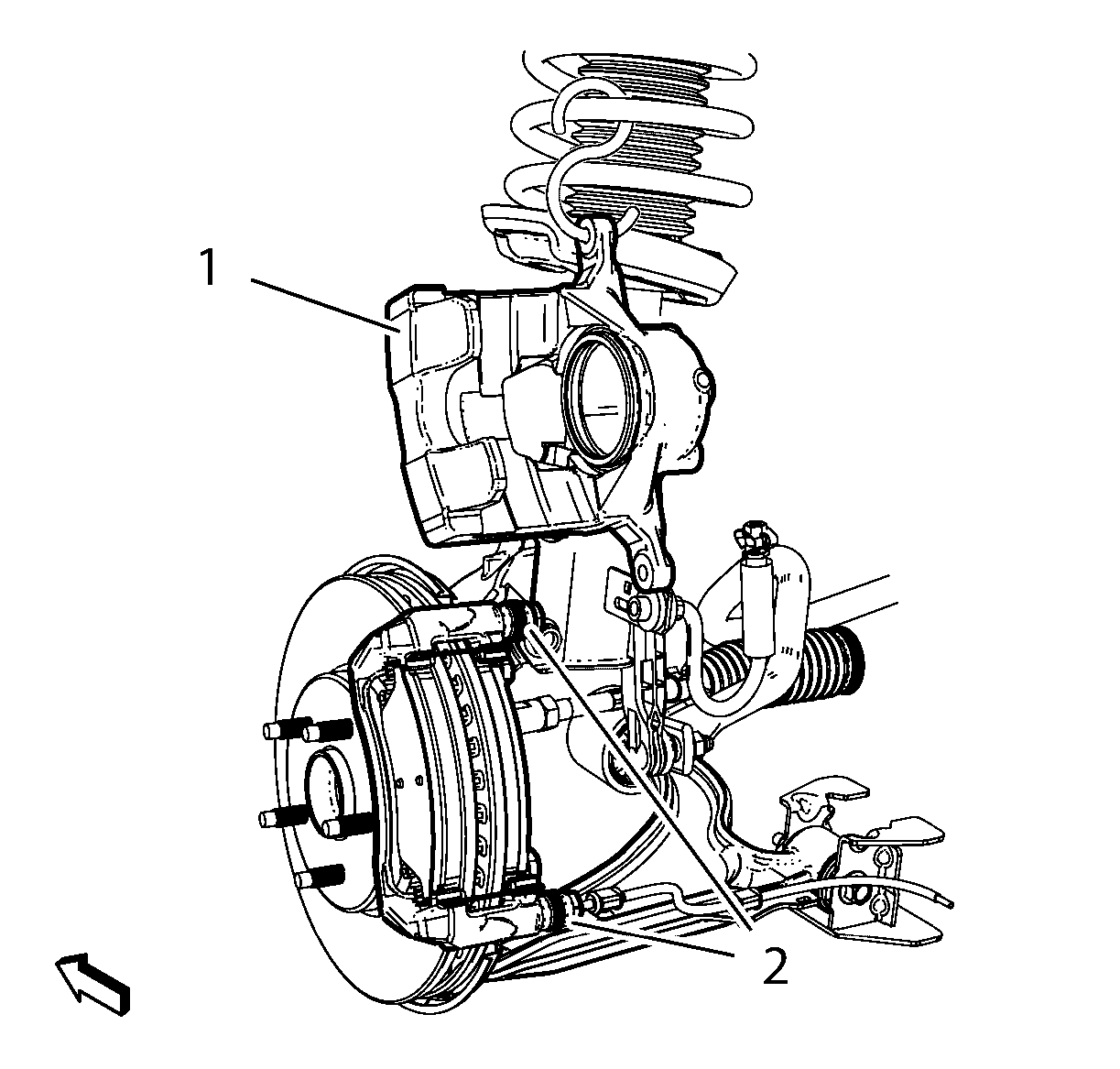

Fig 1: Brake Caliper Supported With Wire
Courtesy of GENERAL MOTORS COMPANY
Without disconnecting the hydraulic brake flexible hose, pivot the caliper (1) upward and secure the caliper with heavy mechanics wire or equivalent.
CAUTION: Support the brake caliper with heavy mechanic wire or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
Remove the brake pads (1) from the caliper mounting bracket

Fig 2: View of Installed Brake Pads
Courtesy of GENERAL MOTORS COMPANY
Remove the brake pad retainer springs (1) from the caliper bracket.

Fig 3: View Of Brake Pad Retainer Springs
Courtesy of GENERAL MOTORS COMPANY
Remove the brake caliper guide pins (3) from the brake caliper mounting bracket (1).

Fig 4: Brake Caliper Guide Pin, Brake Caliper Pin Boot And Brake Caliper Mounting Bracket
Courtesy of GENERAL MOTORS COMPANY
Remove the brake caliper pin boots (2) from the brake caliper mounting bracket (1).
