Brake Pad Inspection

Special Tools

CH-230-A  Disc Gauge

For equivalent regional tools, refer to Special Tools .

1. Remove brake pads. Refer to Front Disc Brake Pads Replacement  and/or Rear Disc Brake Pads Replacement .
   WARNING: Refer to Brake Dust Warning .
2. Measure remaining brake pad thickness at several points, using the CH-230-A  disc gauge (1).

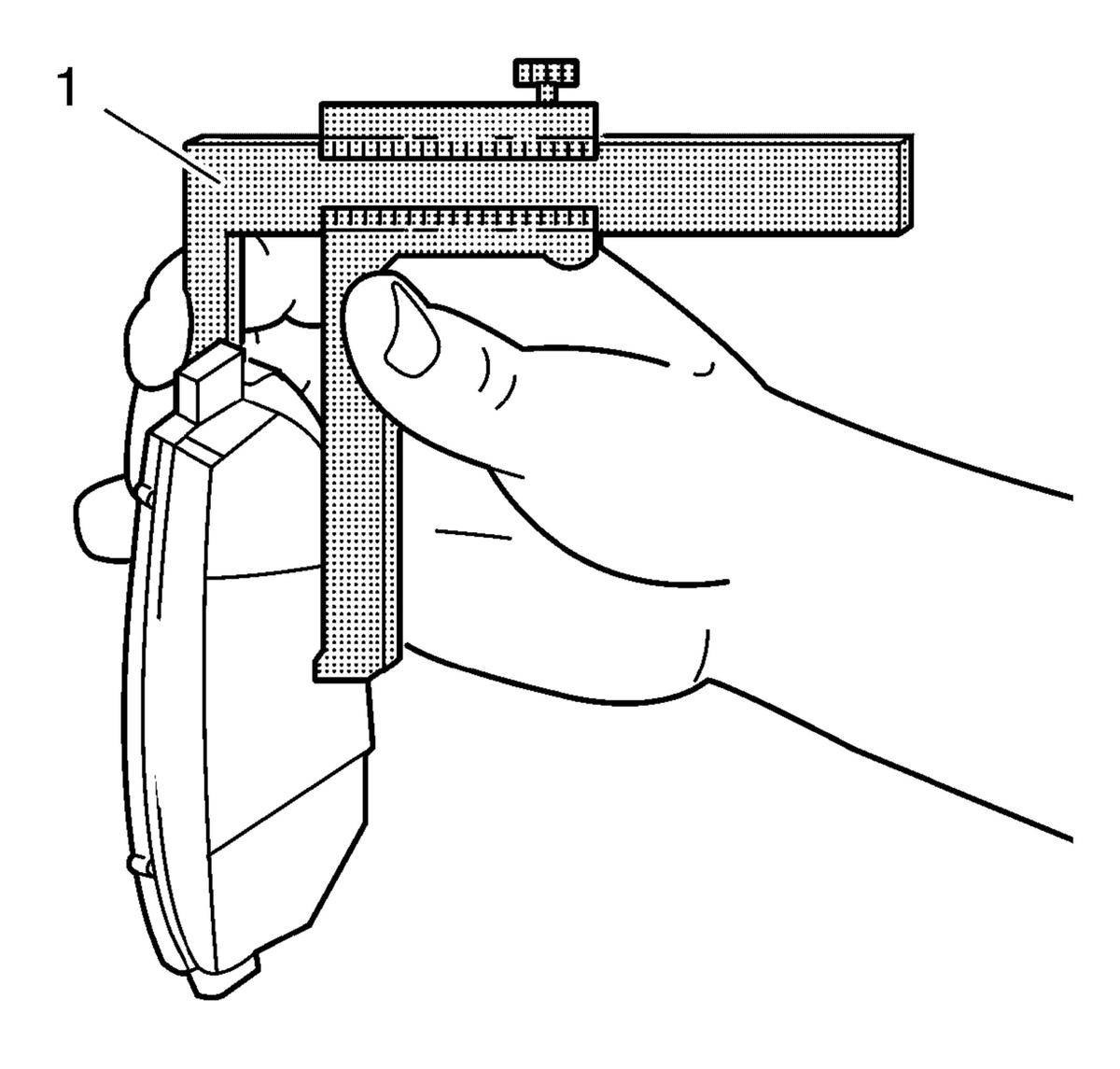

   Fig 1: Measuring Brake Pad Thickness

   Courtesy of GENERAL MOTORS COMPANY
3. Compare brake pad thickness to disc brake component specifications.
