Brake Caliper Inspection

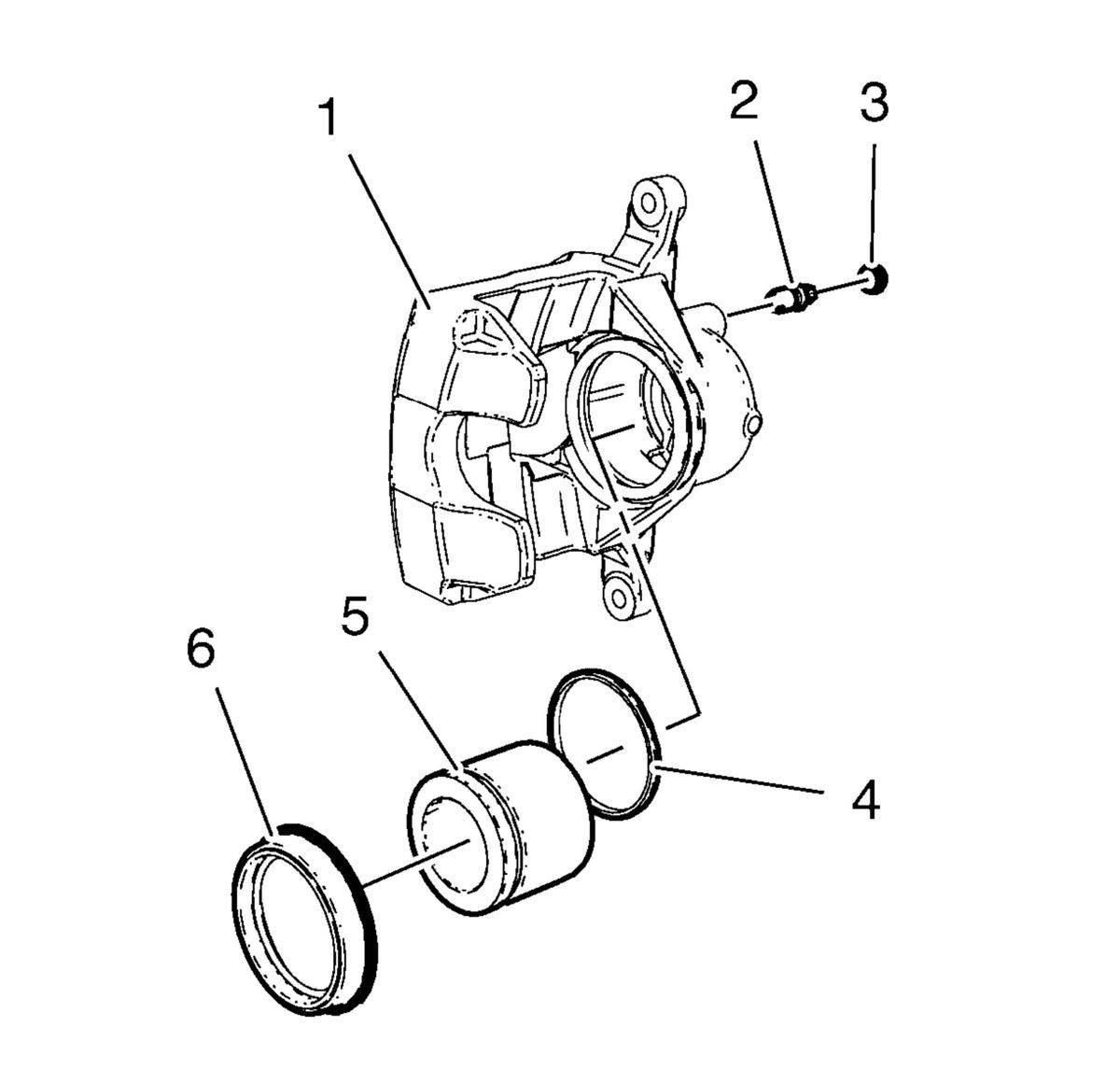

- Inspect the brake caliper housing (1) for cracks, excess wear and/or damage. If any of these conditions are present, the brake caliper requires replacement.
- Inspect the caliper piston dust boot seal (6) for cracks, tears, cuts, deterioration and/or improper seating in the caliper body. If any of these conditions are present, the brake caliper requires overhaul or replacement.
- Renew brake caliper bleeder valve cap (3) if missing.
- Check for blocked bleeder valve (2).
- Inspect for smooth and complete travel of the caliper pistons into the caliper bores:
The movement of the caliper pistons into the caliper bores should be smooth and even. If the caliper piston is frozen or difficult to bottom, the caliper requires overhaul or replacement.
Insert a discarded inner brake pad (2) or block of wood in front of the piston. Using a large C-clamp (1) installed over the body of the caliper (3) and against the brake pad or block of wood, slowly bottom the piston in the bore.
