Rear Side Door Window Regulator Replacement

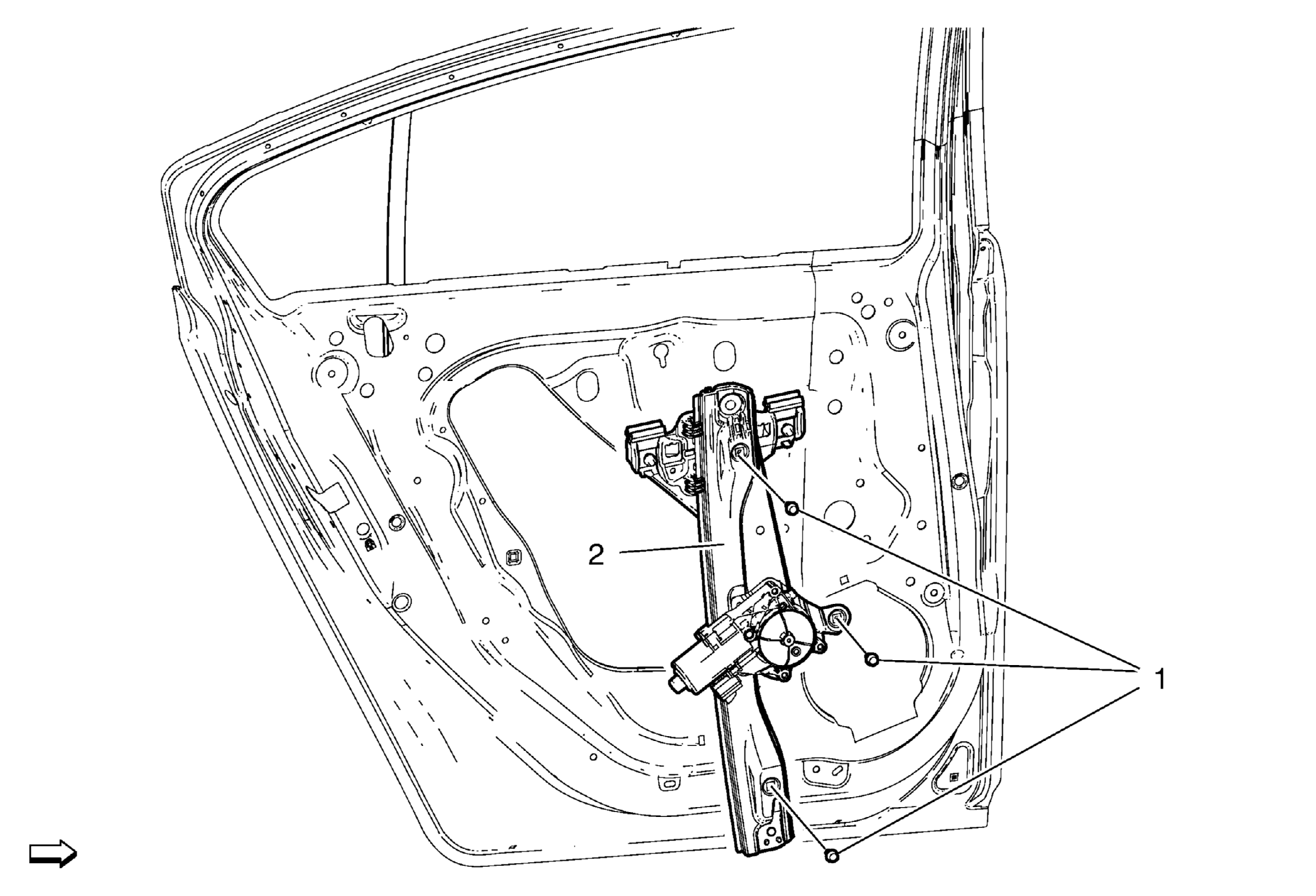

Fig 1: Rear Side Door Window Regulator Assembly And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Rear Side Door Water Deflector Replacement .
1	Rear Side Door Window Regulator Fastener [3x] CAUTION: Refer to Fastener Caution . Procedure  After detaching window from regulator, manually move window to it's full up position and securely tape to window frame. Tighten  9 N.m (80 lb in)
2	Rear Side Door Window Regulator Procedure  Remove all components as needed.
