Rear Side Door Window Outer Sealing Strip Replacement

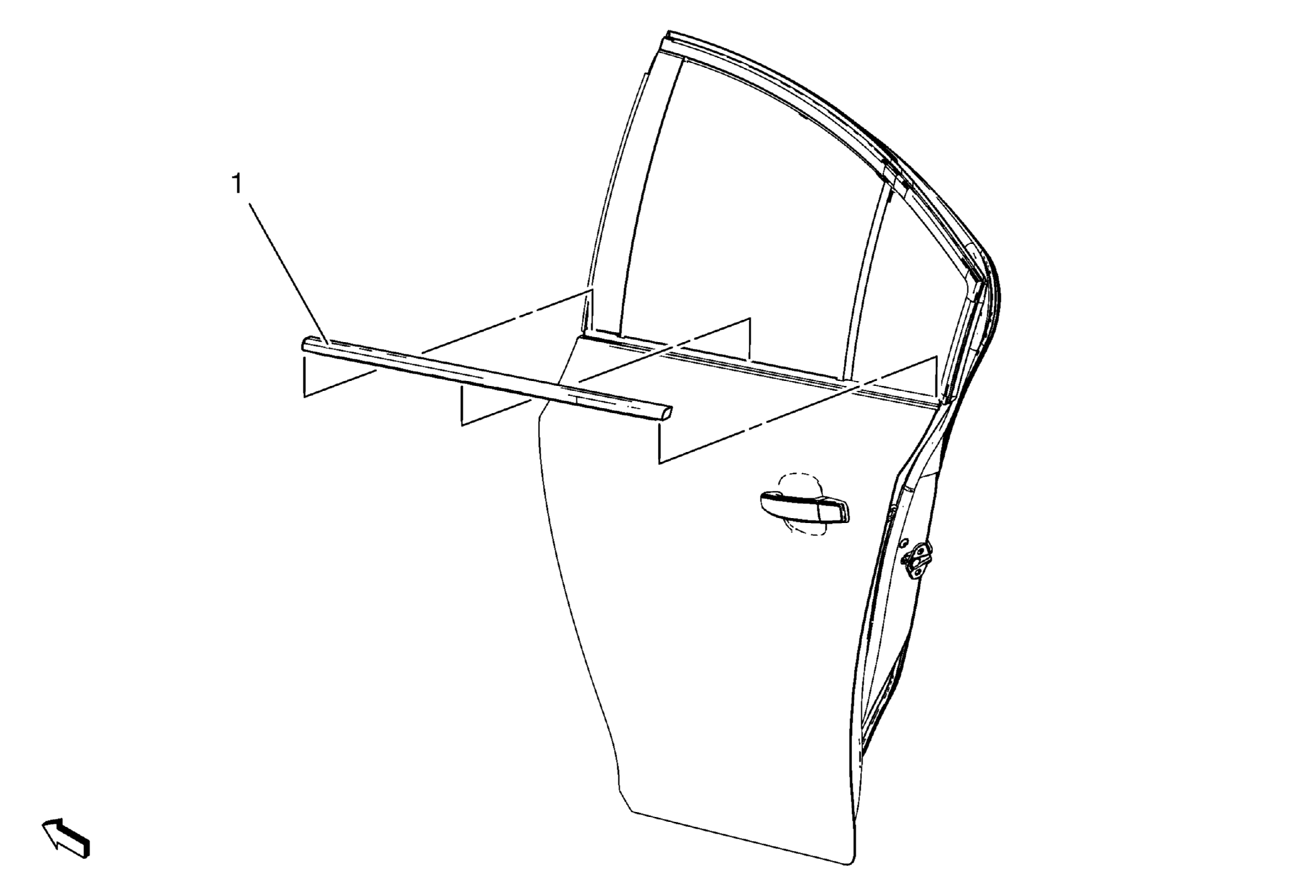

Fig 1: Rear Side Door Window Outer Sealing Strip Assembly
GM2027508Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Window Outer Sealing Strip Assembly
