Rear Side Door Stationary Window Divider Channel Replacement

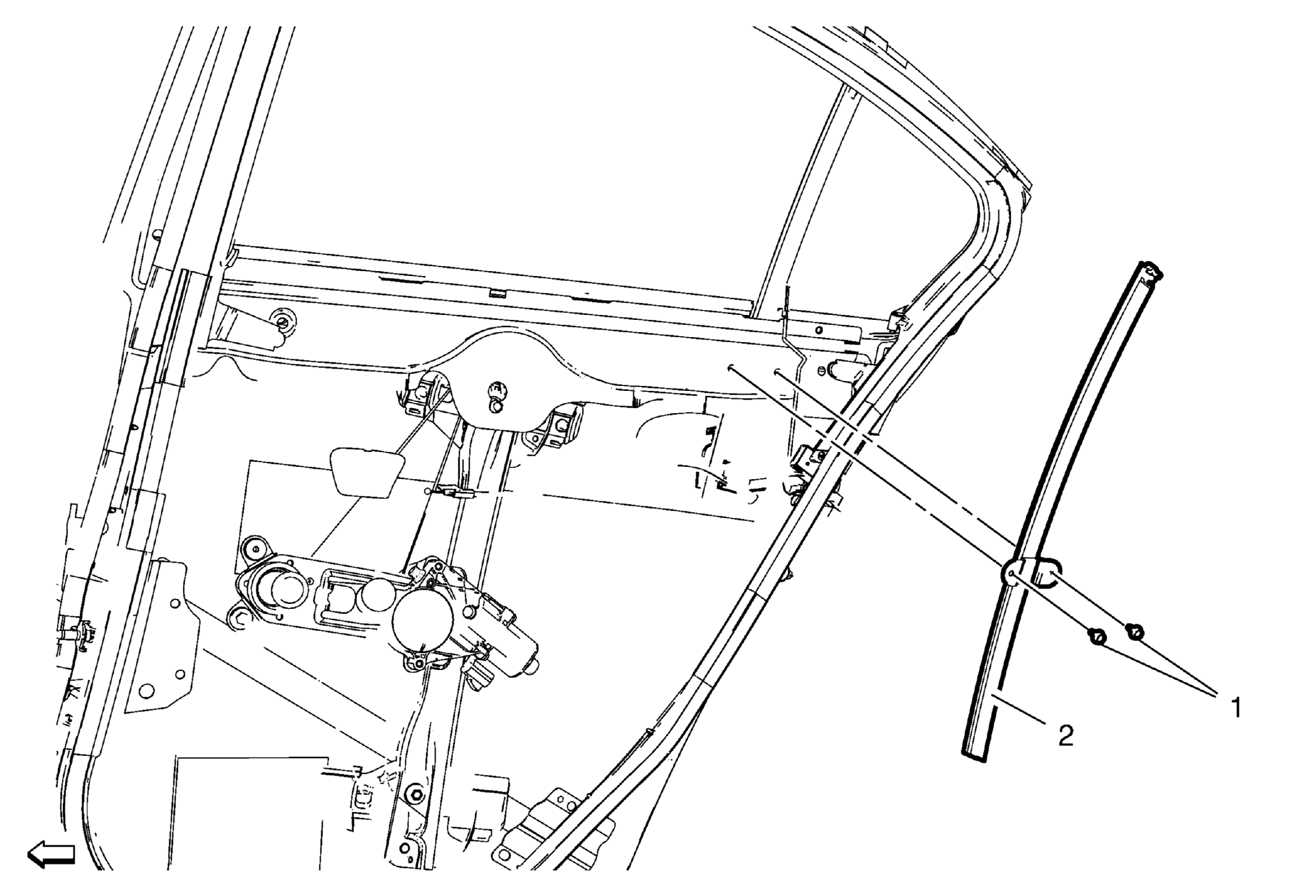

Fig 1: Rear Side Door Stationary Window Divider Channel And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear side door window. Refer to Rear Side Door Window Replacement
1	Rear Side Door Stationary Window Divider Channel Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Side Door Stationary Window Divider Channel
