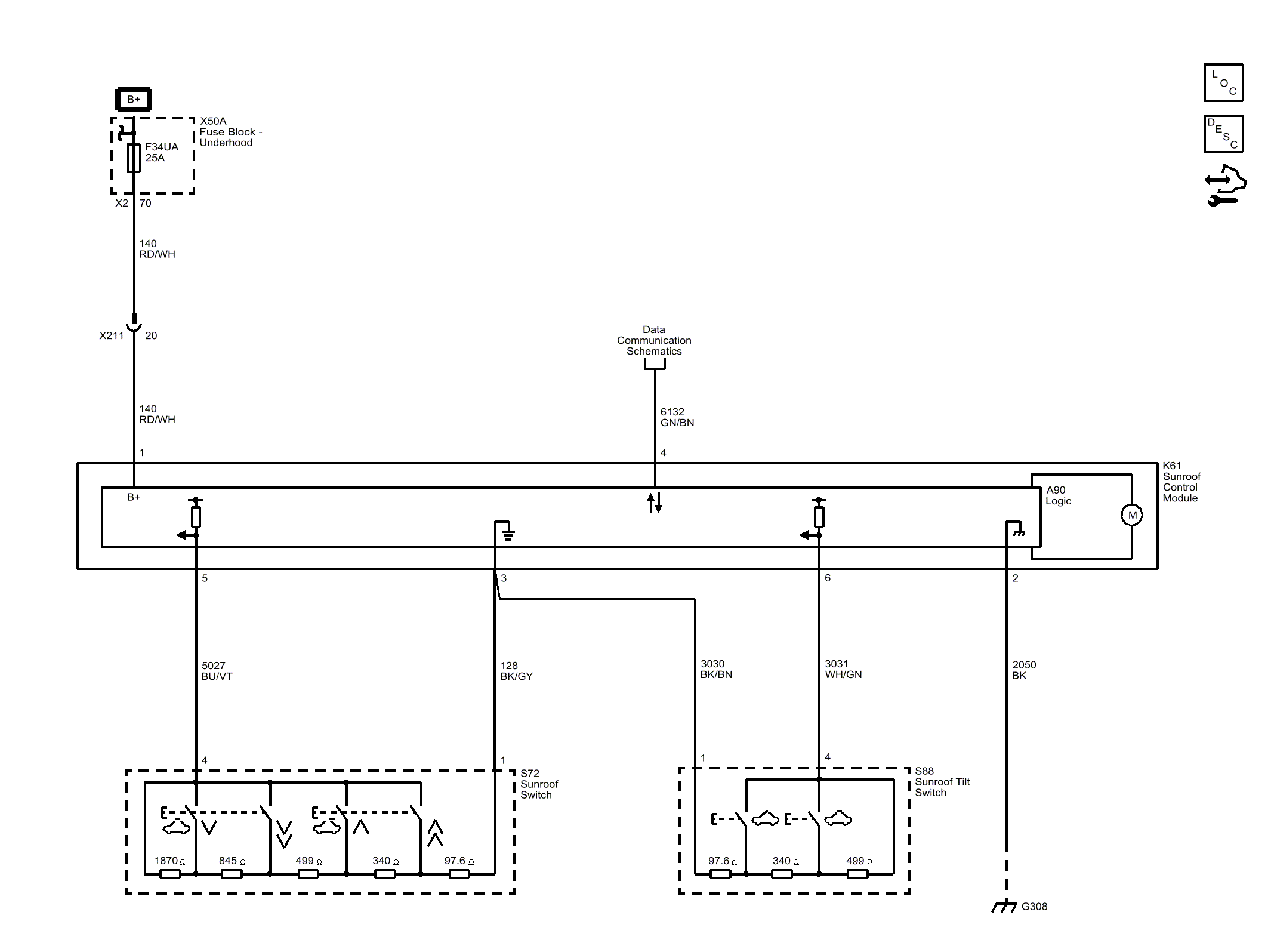

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sunroof System >> Schematic Wiring Diagrams >> Sunroof Wiring Schematics >> Cf5
