Sunroof Window Seal Replacement

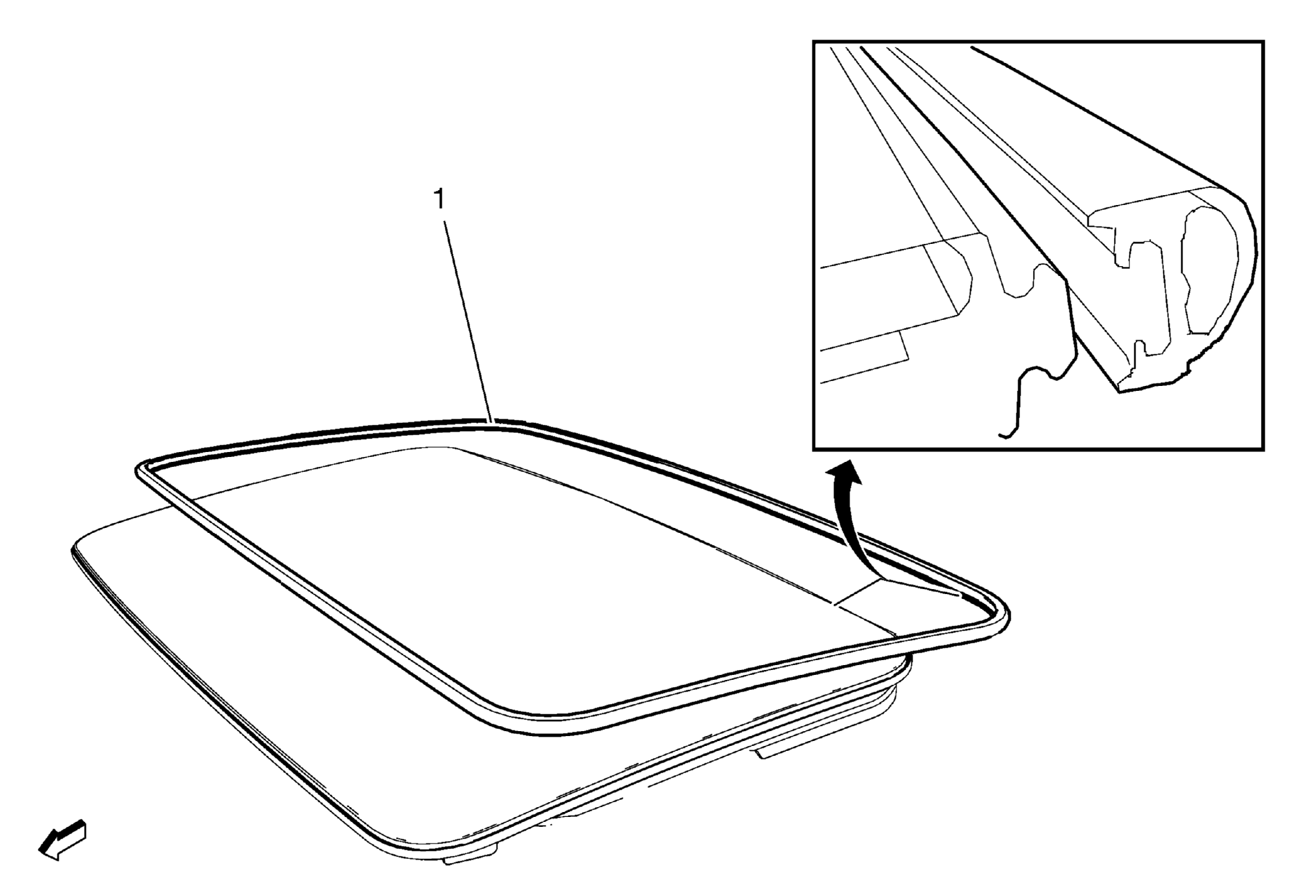

Fig 1: Sunroof Window Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement .
1	Sunroof Window Seal Procedure Wipe the perimeter of the frame area with a clean cloth. Ensure that the seal is properly seated around the entire perimeter of the window frame.

Callout

Component Name

Preliminary Procedures
Remove the sunroof window. Refer to Sunroof Window Replacement .

Sunroof Window Seal

Procedure

Wipe the perimeter of the frame area with a clean cloth.
Ensure that the seal is properly seated around the entire perimeter of the window frame.
