Sunroof Housing Rear Drain Hose Replacement

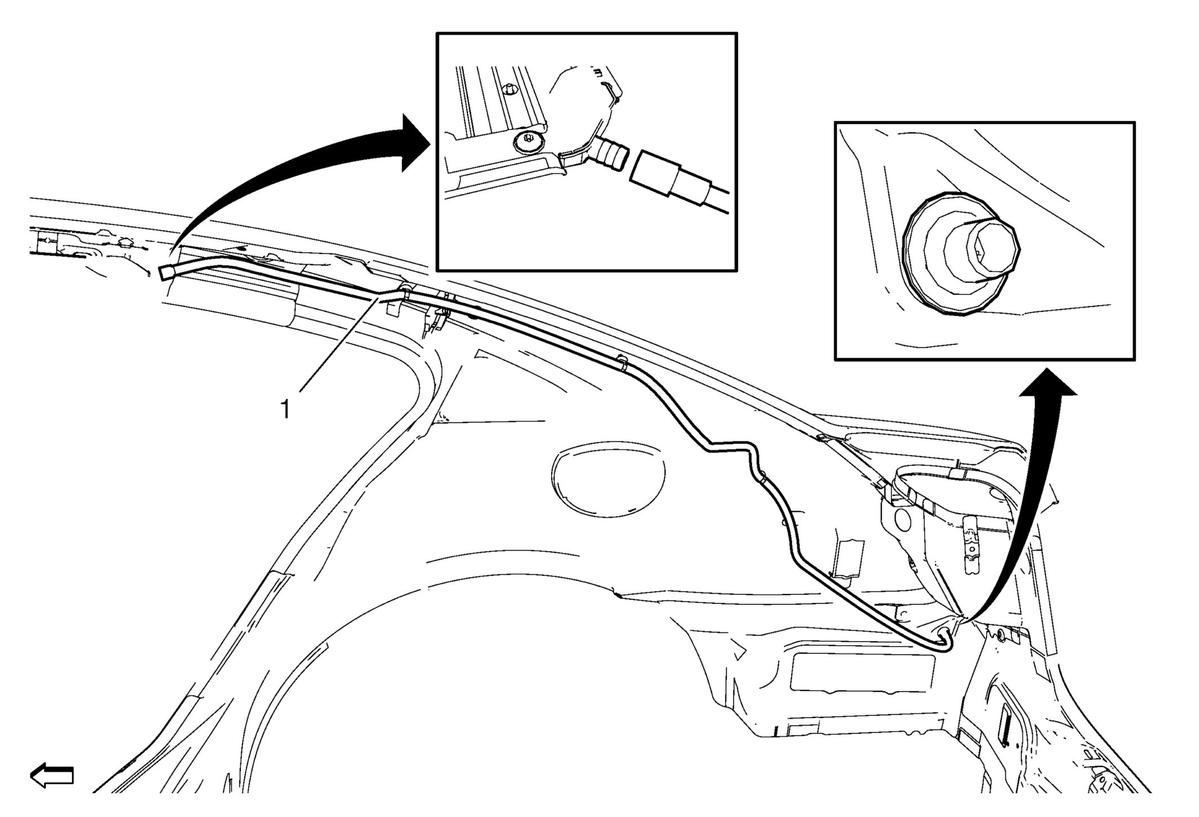

Fig 1: Sunroof Housing Rear Drain Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) . Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side or Rear Compartment Side Trim Replacement - Left Side .
1	Sunroof Housing Rear Drain Hose Procedure Disengage the sunroof drain hose from the attachment clips on the roof rail, the C-pillar and the rear compartment.

Callout

Component Name

Preliminary Procedures

It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side or Rear Compartment Side Trim Replacement - Left Side .

Sunroof Housing Rear Drain Hose
Procedure
Disengage the sunroof drain hose from the attachment clips on the roof rail, the C-pillar and the rear compartment.
