Sunroof Housing Drain Gutter Replacement

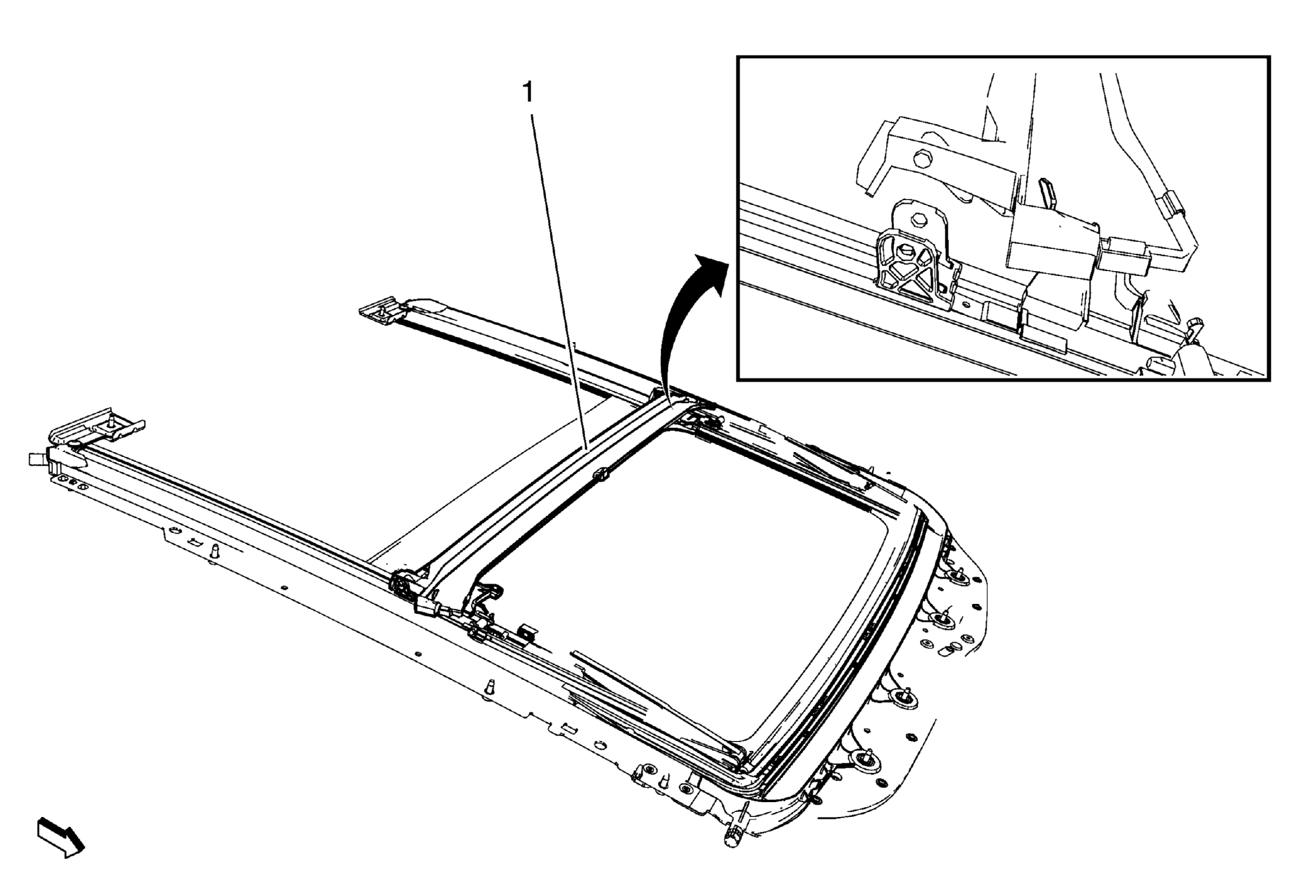

Fig 1: Sunroof Housing Drain Gutter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the sunroof module assembly. Refer to Sunroof Module Assembly Replacement . Cycle the sunroof window to the vent position.
1	Sunroof Housing Drain Gutter Procedure Clip the sunroof housing drain gutter out from guide.

Callout

Component Name

Preliminary Procedures

Remove the sunroof module assembly. Refer to Sunroof Module Assembly Replacement .
Cycle the sunroof window to the vent position.

Sunroof Housing Drain Gutter
Procedure
Clip the sunroof housing drain gutter out from guide.
