Installation Procedure

Collapse air deflector (1) and install zip ties to help with installation of air deflector. Remove zip ties when installation is complete.

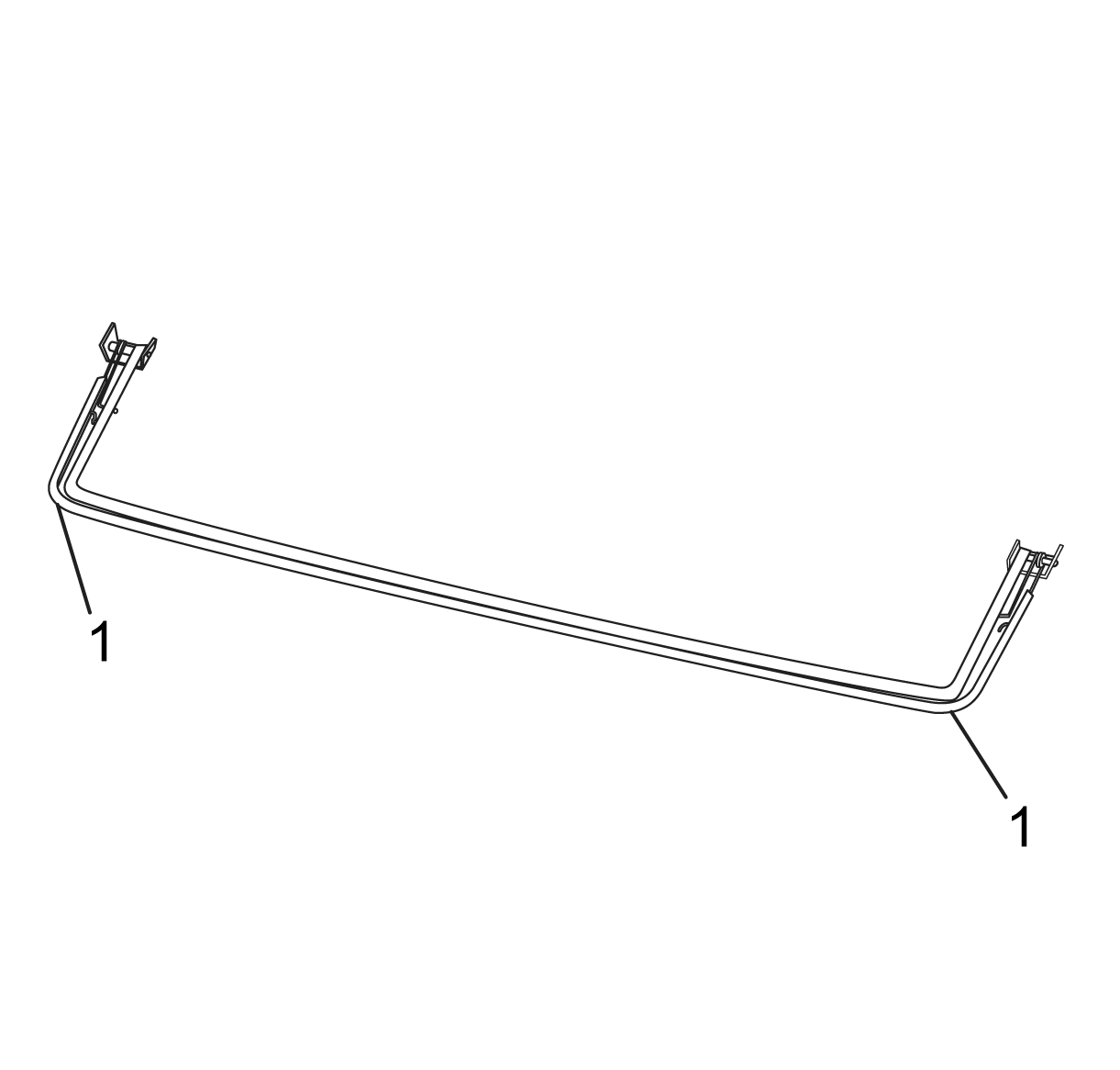

Fig 1: Air Deflector
Courtesy of GENERAL MOTORS COMPANY
Install the front of the air deflector under the sunroof module base (1), aligning the air deflector tabs (2) to the notches (3) in the sunroof module base.

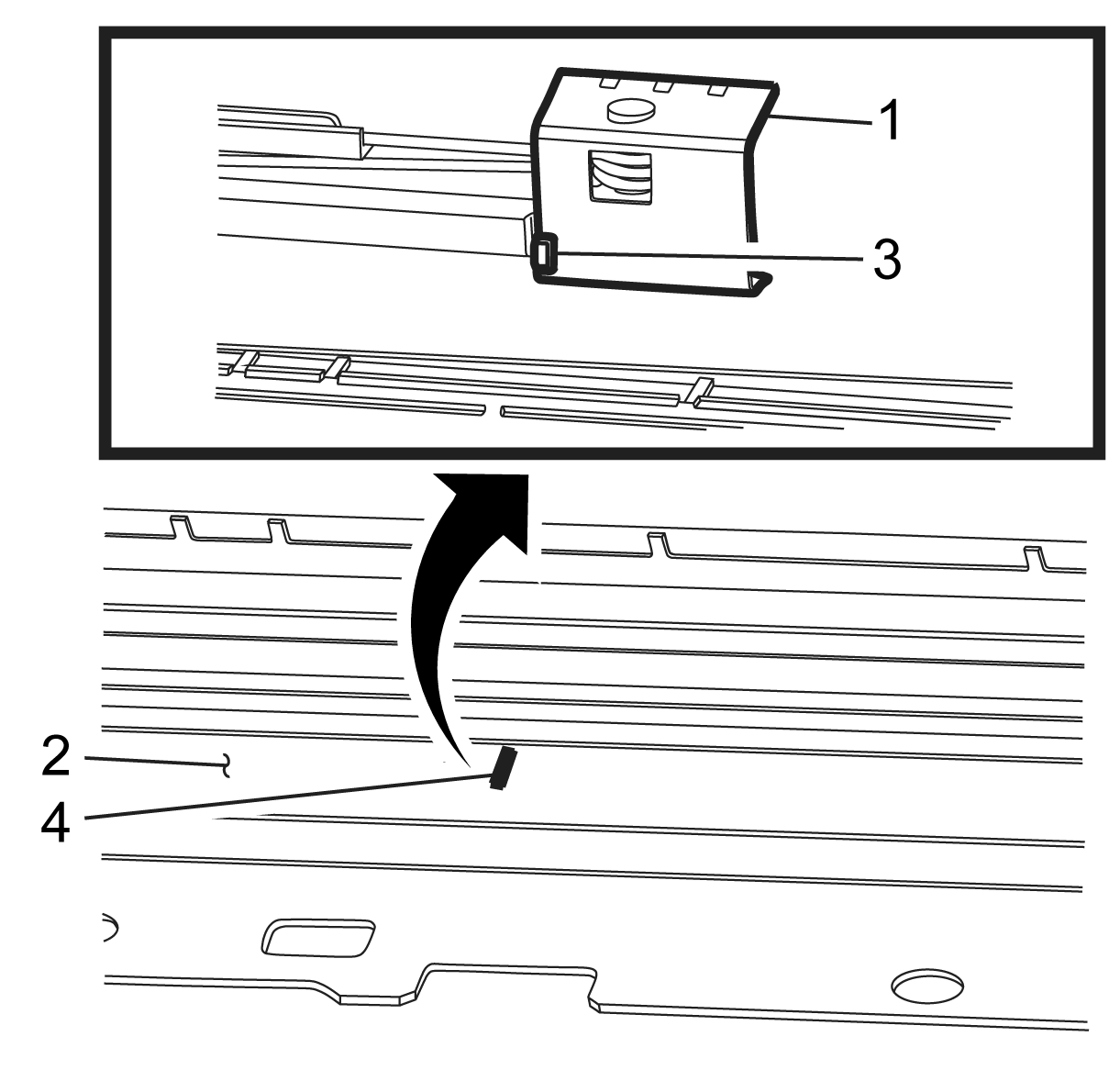

Fig 2: Air Deflector Tabs And Notches
Courtesy of GENERAL MOTORS COMPANY
Once the air deflector is engaged in sunroof module base, lower the rear of the air deflector (1) down while snapping the front of the air deflector (2) into position.

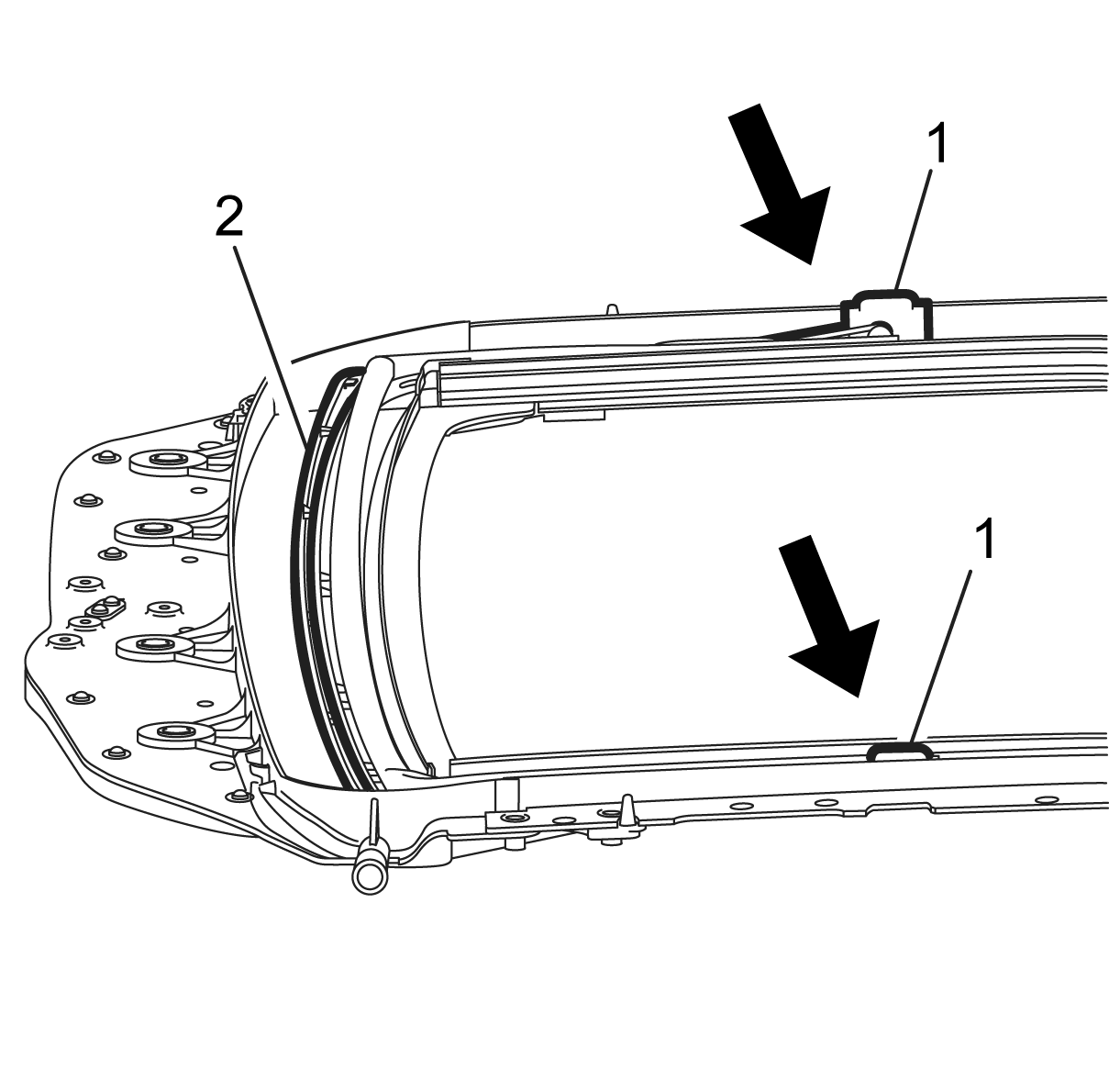

Fig 3: Air Deflector
Courtesy of GENERAL MOTORS COMPANY
Ensure air deflector base (1) is completely snapped into all tabs (2).

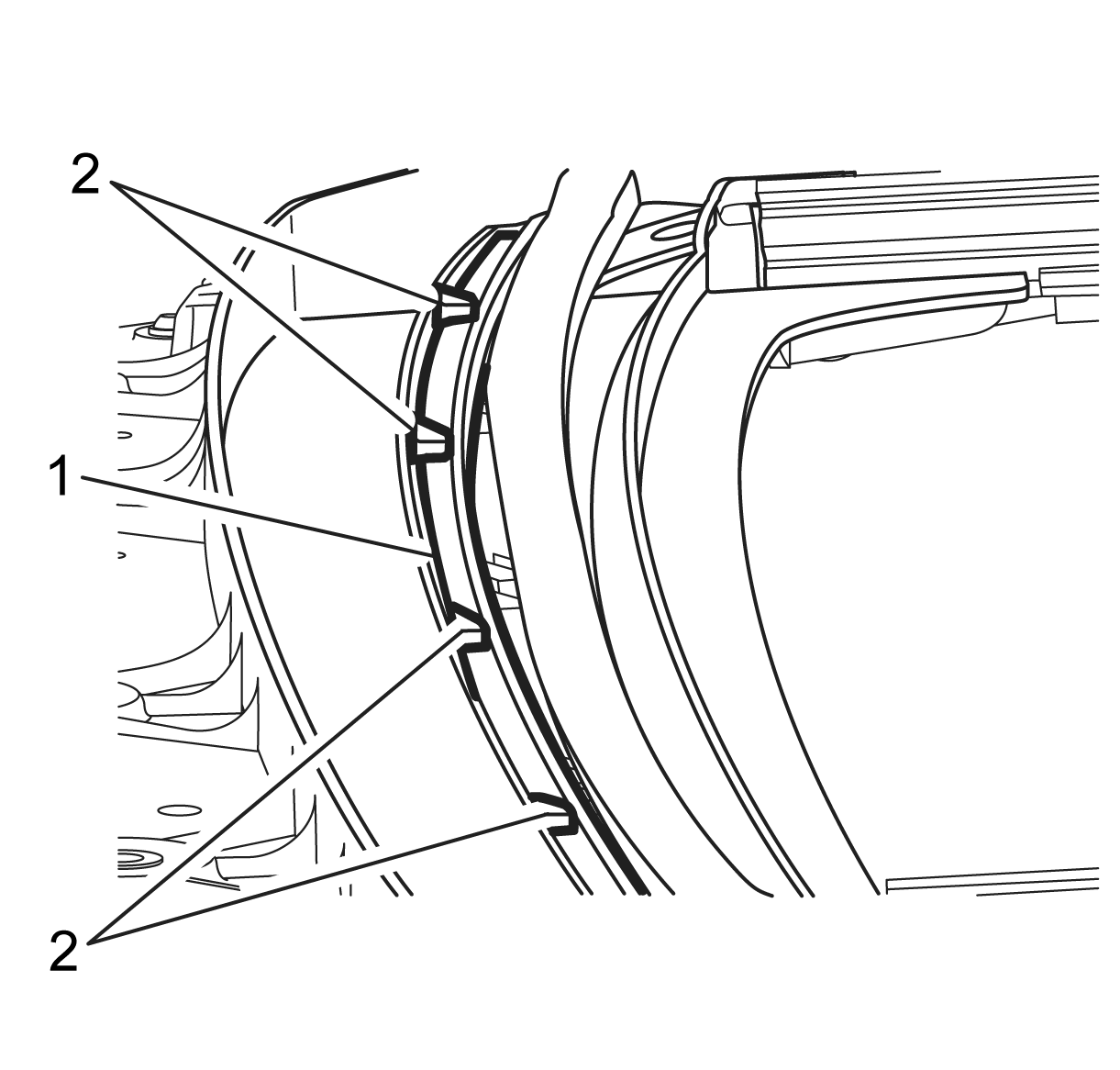

Fig 4: Air Deflector Base
Courtesy of GENERAL MOTORS COMPANY
Push down on air deflector pivot bracket (1) to install in track (2). Repeat for the other side. If air deflector pivot bracket will not lock into track, ensure tab (3) on the bottom of air deflector pivot bracket is engaged to slot (4) stamped into track.

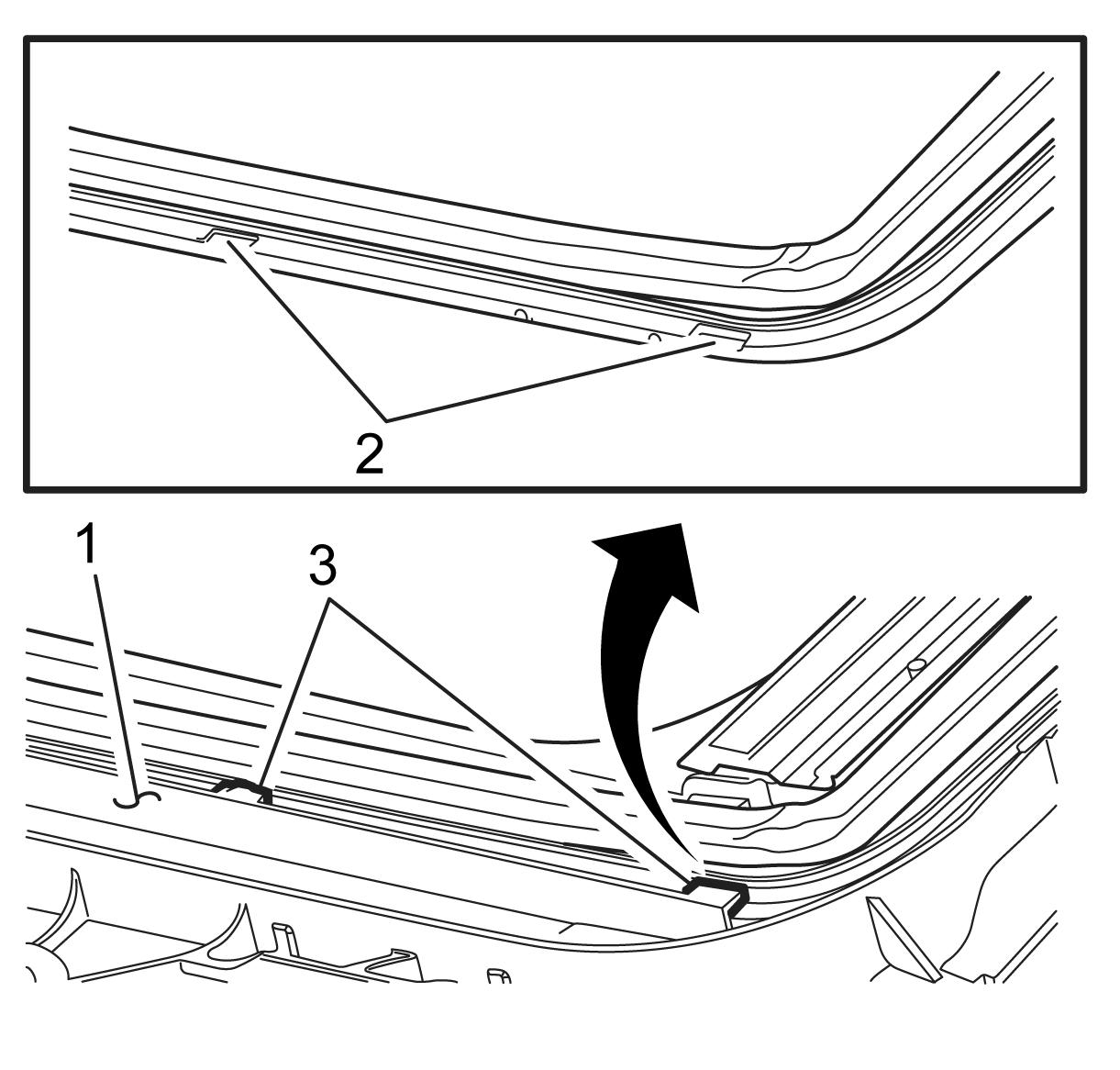

Fig 5: Air Deflector Pivot Bracket And Track
Courtesy of GENERAL MOTORS COMPANY
Close the sunroof window.
