Sunroof Air Deflector Cover Replacement

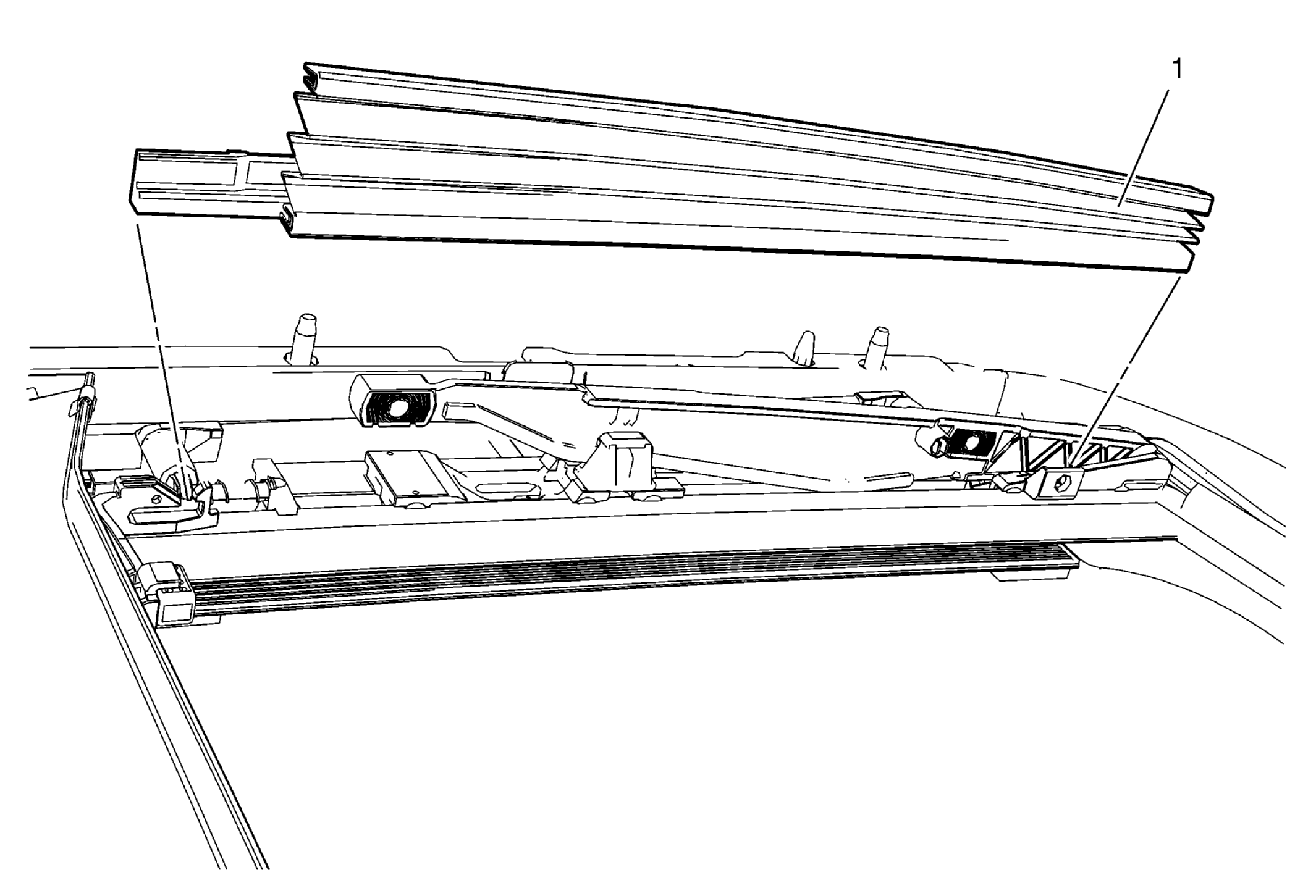

Fig 1: Sunroof Air Deflector Cover
GM2027836Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Sunroof Air Deflector Cover

Procedure

  1. Cycle the sunshade window to the vent position.
  2. Unclip the sunroof air deflector cover out of the guide.
