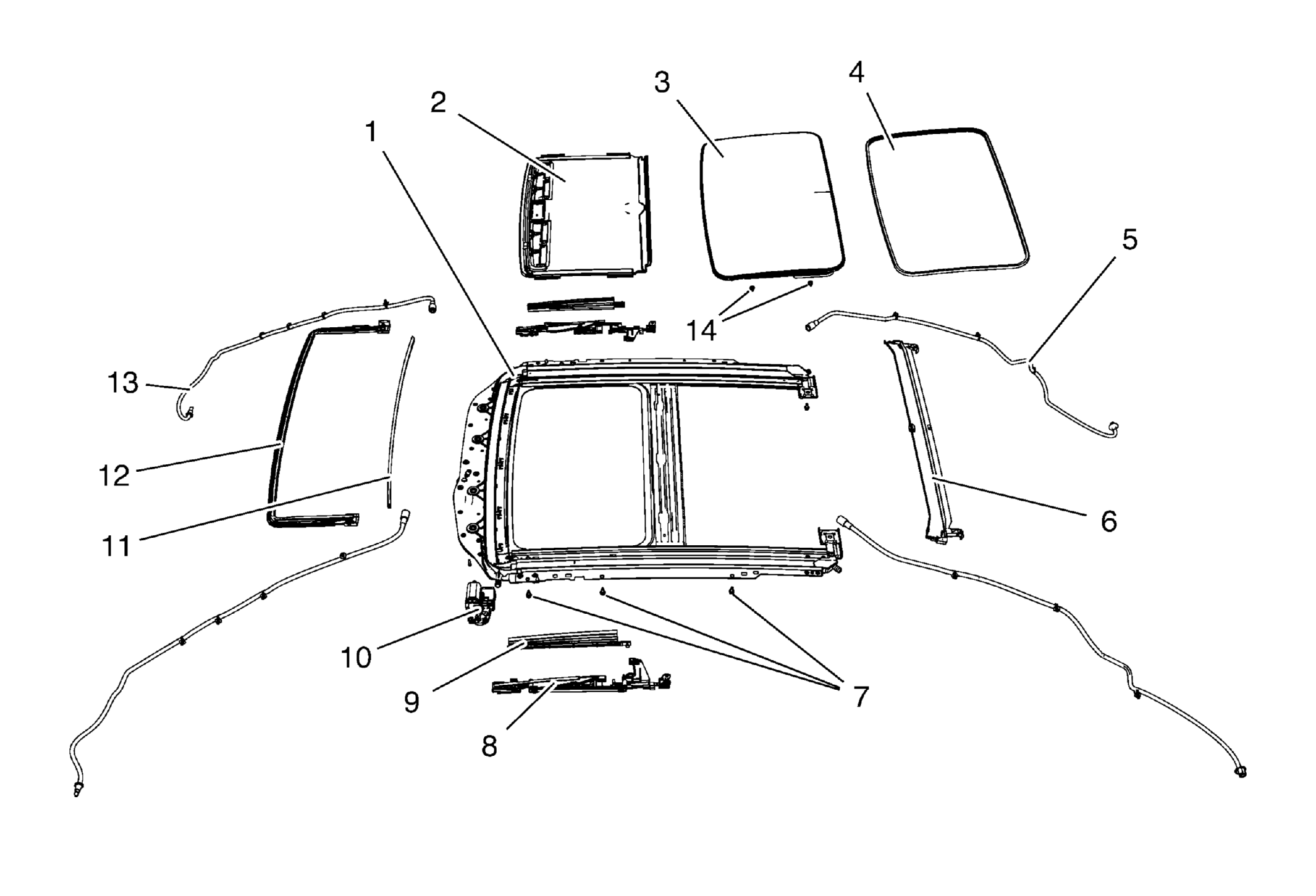

Sunroof Component Views: Sunroof
| Callout | Component Name |
|---|---|
| 1 | Sunroof Frame |
| 2 | Sunroof Sunshade |
| 3 | Sunroof Window |
| 4 | Sunroof Window Seal |
| 5 | Sunroof Housing Rear Drain Hose |
| 6 | Sunroof Housing Drain Gutter |
| 7 | Sunroof Frame Bolts |
| 8 | Sunroof Window Guide |
| 9 | Sunroof Air Deflector Cover |
| 10 | Sunroof Window Motor |
| 11 | Sunroof Window Seal |
| 12 | Sunroof Air Deflector |
| 13 | Sunroof Housing Front Drain Hose |
| 14 | Sunroof Window Bolts |
