Driver or Passenger Seat Back Heater Replacement

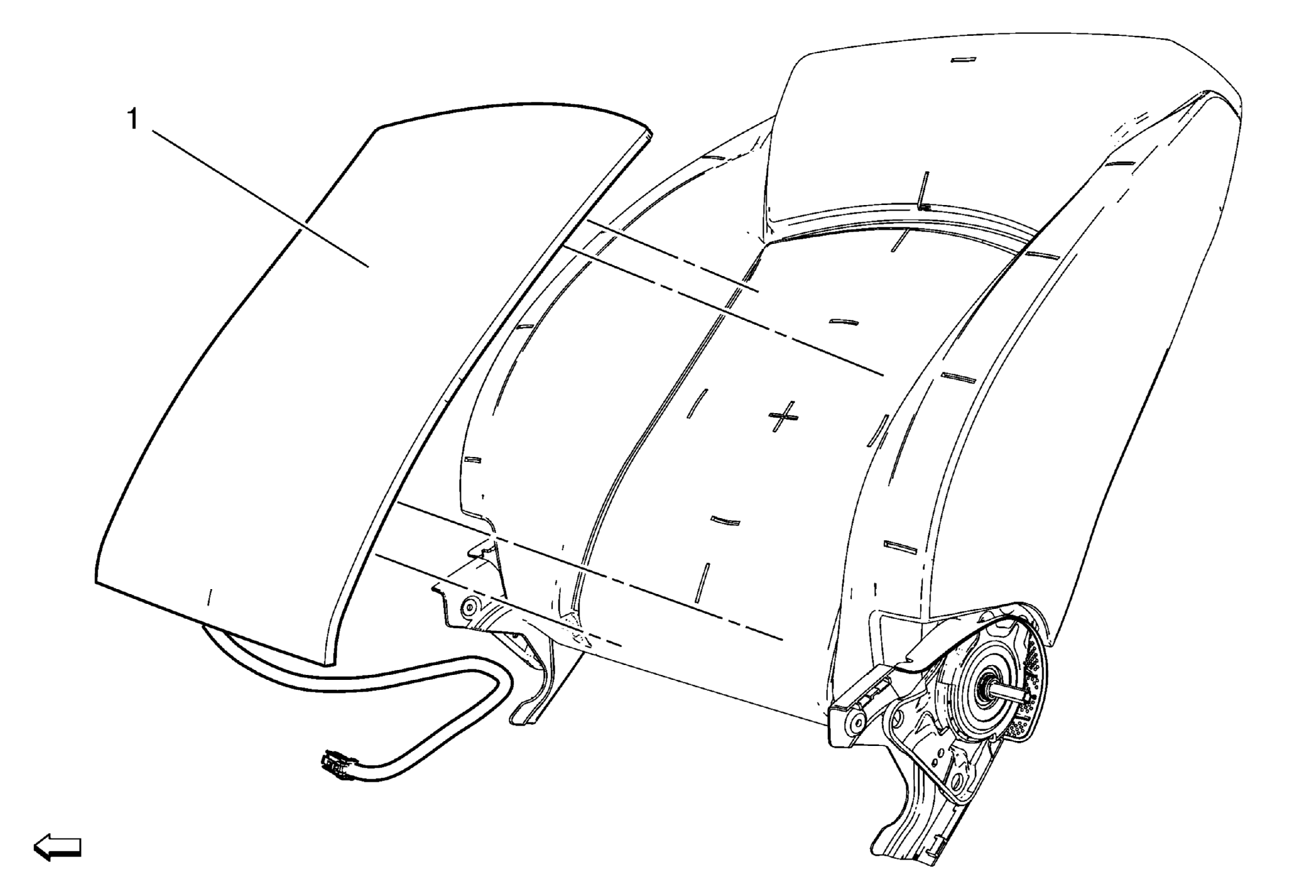

Fig 1: Driver Or Passenger Seat Back Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front seat back cushion cover and cushion pad. Refer to Driver or Passenger Seat Back Cover and Pad Replacement .
1	Driver or Passenger Seat Back Cushion Heater
