Driver Seat Cushion Heater Replacement

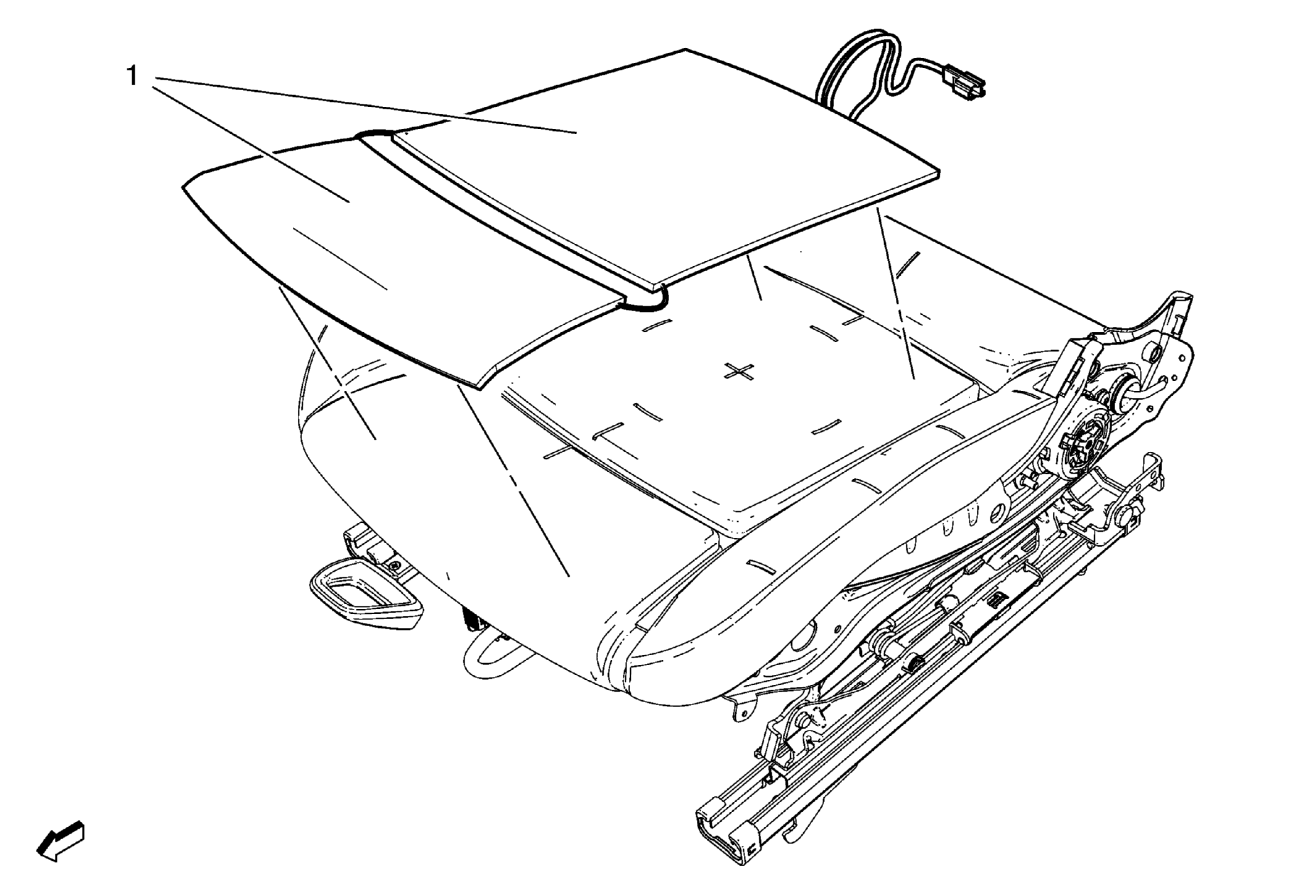

Fig 1: Driver Seat Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Driver Seat Cushion Heater Procedure Carefully remove the cushion heater from cushion. When installing the heater, glue on the heater starting on the rear side of the cushion and fix it bit by bit moving forward.

Callout

Component Name

Preliminary Procedures
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .

Driver Seat Cushion Heater

Procedure

Carefully remove the cushion heater from cushion.
When installing the heater, glue on the heater starting on the rear side of the cushion and fix it bit by bit moving forward.
